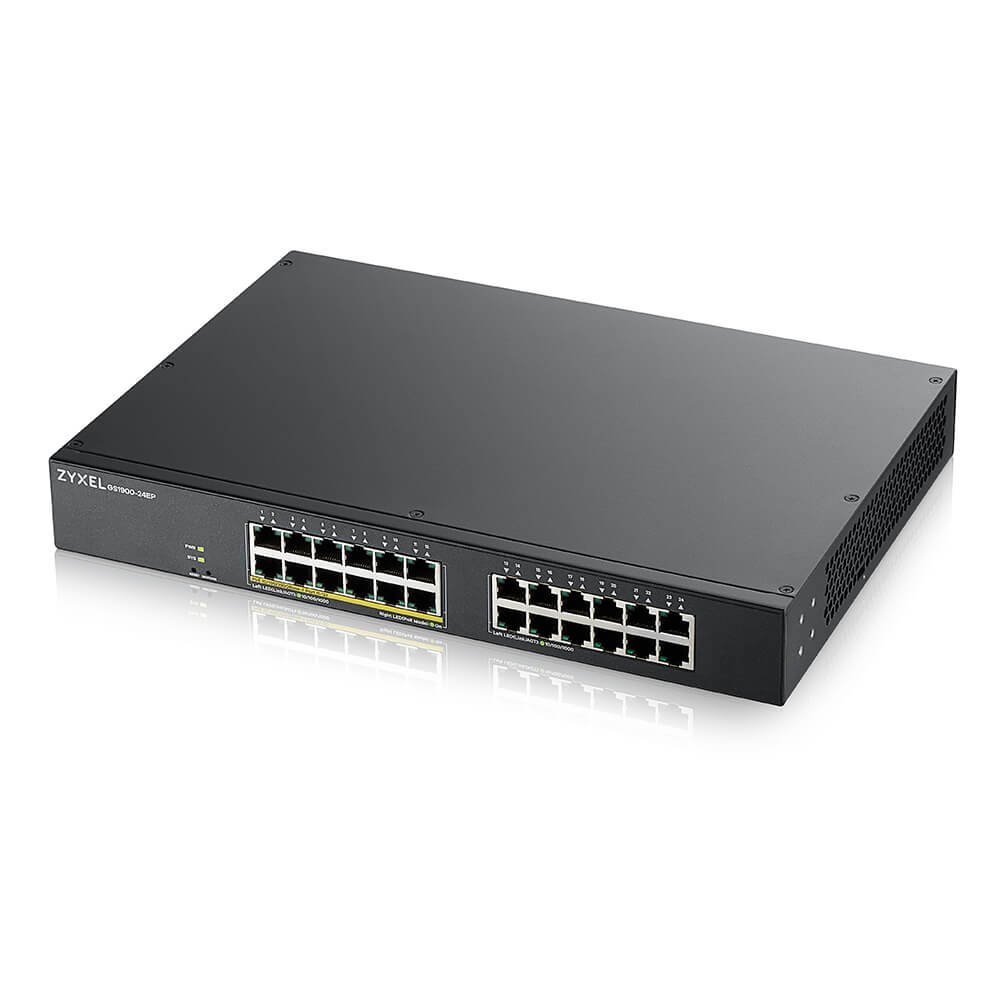

Zyxel GS1900-24EP, 24-port GbE L2, 12 Port PoE Smart Switch, rackmount, 130 Watt
Zyxel GS1900-24-EP, 24-port GbE L2, 12 Port PoE Smart Switch, rackmount, 130 Watt
Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Total port count 24
100/1000 Mbps 24
802.3at PoE ports 12
Total PoE budget (Watts) 130
Switching capacity (Gbps) 48
Forwarding rate (Mpps) 35,7
Packet buffer (byte) 325 K
MAC address table 8 K
Jumbo frame (byte) 9 K
Input 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 166,5
Dimensions (WxDxH) (mm/in.) 330 x 230 x 44/12.99 x 9.06 x 1.73
Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Total port count 24
100/1000 Mbps 24
802.3at PoE ports 12
Total PoE budget (Watts) 130
Switching capacity (Gbps) 48
Forwarding rate (Mpps) 35,7
Packet buffer (byte) 325 K
MAC address table 8 K
Jumbo frame (byte) 9 K
Input 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 166,5
Dimensions (WxDxH) (mm/in.) 330 x 230 x 44/12.99 x 9.06 x 1.73
ParametryPorovnání
Výrobce (switche)
ZyXEL
Rychlost přenosu (switche)
10/100/1000
Počet portů (switche)
24
Správa (switche)
Smart switch
PoE 802.3af (switche)
Ne
SFP (switche)
Ne
