Display Specifikace
Úhlopříčka 10.1-inch IPS display with LED Backlight
Rozlišení 1920 x 1200 WUXGA
Svítivost 800 nit
With direct optical bonding for sunlight readable
Touch Multi-touch projected capacitive
Kontrast Ratio 800:1
Viewing Angle 85/85/85/85
Technology • Ant- reflective and anti-glare technology (Optional)
• Ambient light sensor, e-compass, gyro, acceleration
sensors
• Automatic screen rotation
• Intel HD Graphics (built-in CPU) video controller

System Specifikace
Processor Intel Pentium N4200 Processor
1.10 GHz, up to 2.50 GHz with turbo boost technology
Paměť 4GB SODIMM DDR3L-1600 (up to 8GB) 1
Úložiště64GB solid state drive (SSD)
Optional up to 512GB, up to 128GB additional storage
with optional microSDXC card slot
Operační Systém Windows 10 IoT Enterprise (64 bit)

Bezdrátová komunikace
WLAN 802.11 a/b/g/n/ac
Bluetooth Bluetooth 4.2
GNSS GPS, GLONASS, BeiDou
WWAN • Optional 4G (LTE, HSPA+, GSM/GPRS/EDGE, EV-DO
Rev A, 1xRTT)
• Volitelné 3G (HSPA+, GSM/GPRS/EDGE)

Interface
Docking Connector 1 x 19-pin docking connector
HDMI 1 x Optional micro HDMI
USB 1 x USB3.0 (Type A), 1 x USB3.0 (Type C)
Power Input 1 x Power Jack
Micro SD 1 x Micro SD Slot
Audio Connector 1 x Audio Combo connector (Mic in or Line Out)

Klávesnice a Input
Touch • 10-point multi touch,
support Rain, Glove, Stylus
Button • On-screen QWERTY keyboard
Button 1 x power, 1 x Home, 2 x volume key,
2 x function key (Programmable
function key configured by Hottab Utility)
LED Indicators Power, Battery, HDD, RF

Audio
Microphone Built-in dual Digital Mic with Noise Cancellation
Speaker 2 x 1 watt speaker

Kamerys
Web Kamera 2MP webcam
Zadní kamera 8MP s autofocus and LED light

Příjímání dat
Barcode Optional 1D/2D Barcode Reader
HF RFID Optional HF RFID reader 13.56 MHz

Bezpečnostní Funkce
Security • Password security for user and hard disk lock
• Trusted Platform Module (TPM) 2.0
Mobile Device Mgmt. SOTI Mobicontrol compatible

Mechanické a Enviromentální
Rozměry (W x L x H) 271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches) 4
Váha 1.2 kg (2.7 lbs) with standard battery,
1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Humidity 10% to 90% RH, non-condensing
IP Proof IP65 certified, Dustproof and waterproof
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 4 ft to concrete

Napájení
Power Input 12-19V DC
Battery 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)
Battery Operating Time Std. Battery: 8 hours
High Capacity Battery: 16 hours
Adapter 100-240V, 50-60Hz / 19V DC

Produkt Specifikace
Operační Systém:
Windows 10 IoT Enterprise
Windows Embedded 8.1 Industry Pro
Windows Embedded Standard 7
Windows 7 Pro for Embedded Systems

Příslušenství (součást balení)
• Adapter and Power Cord
• Capacitive Stylus
• Standard Battery

Volitelné příslušenství (lze dokoupit samostatně)

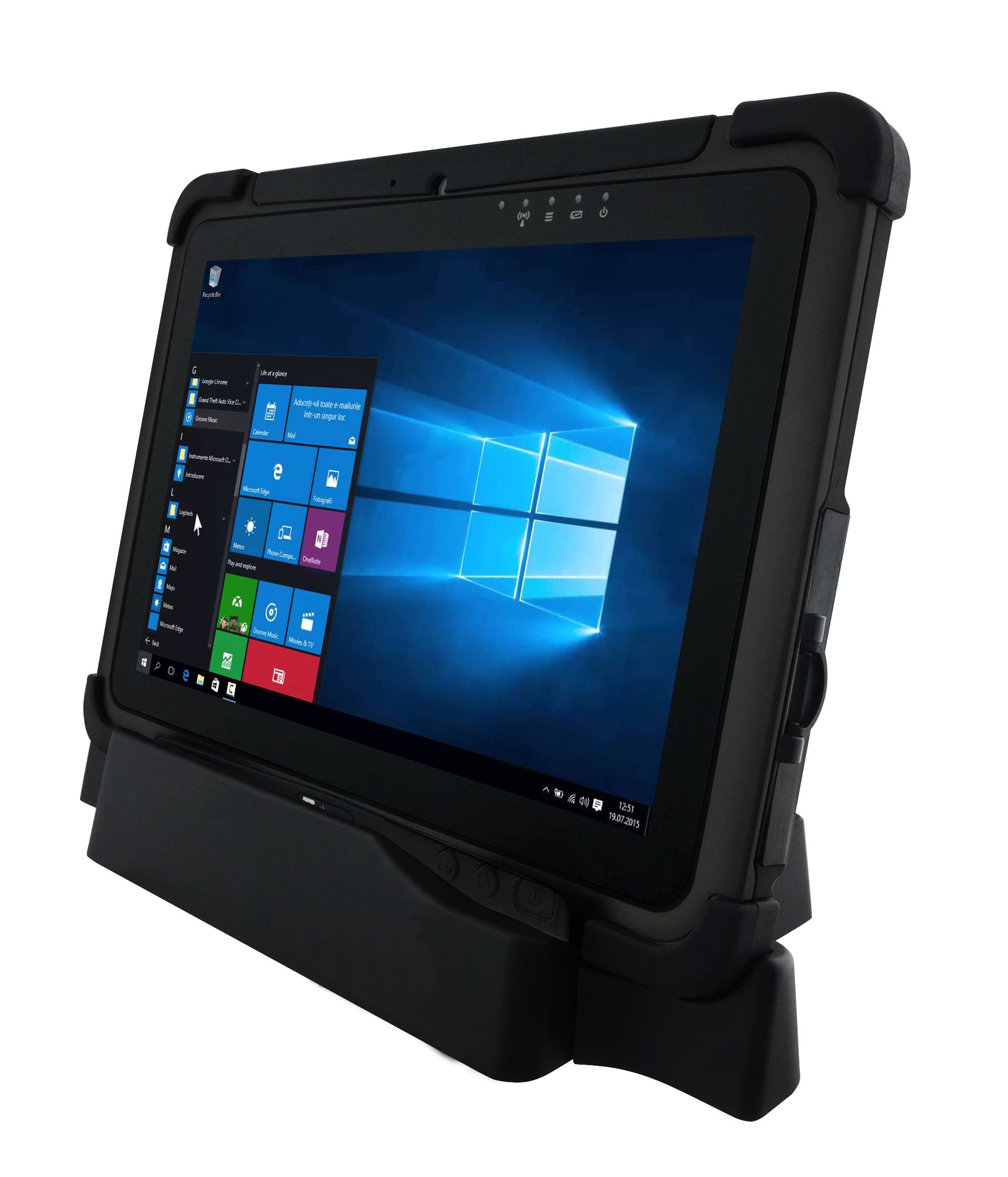

• Desk Dock

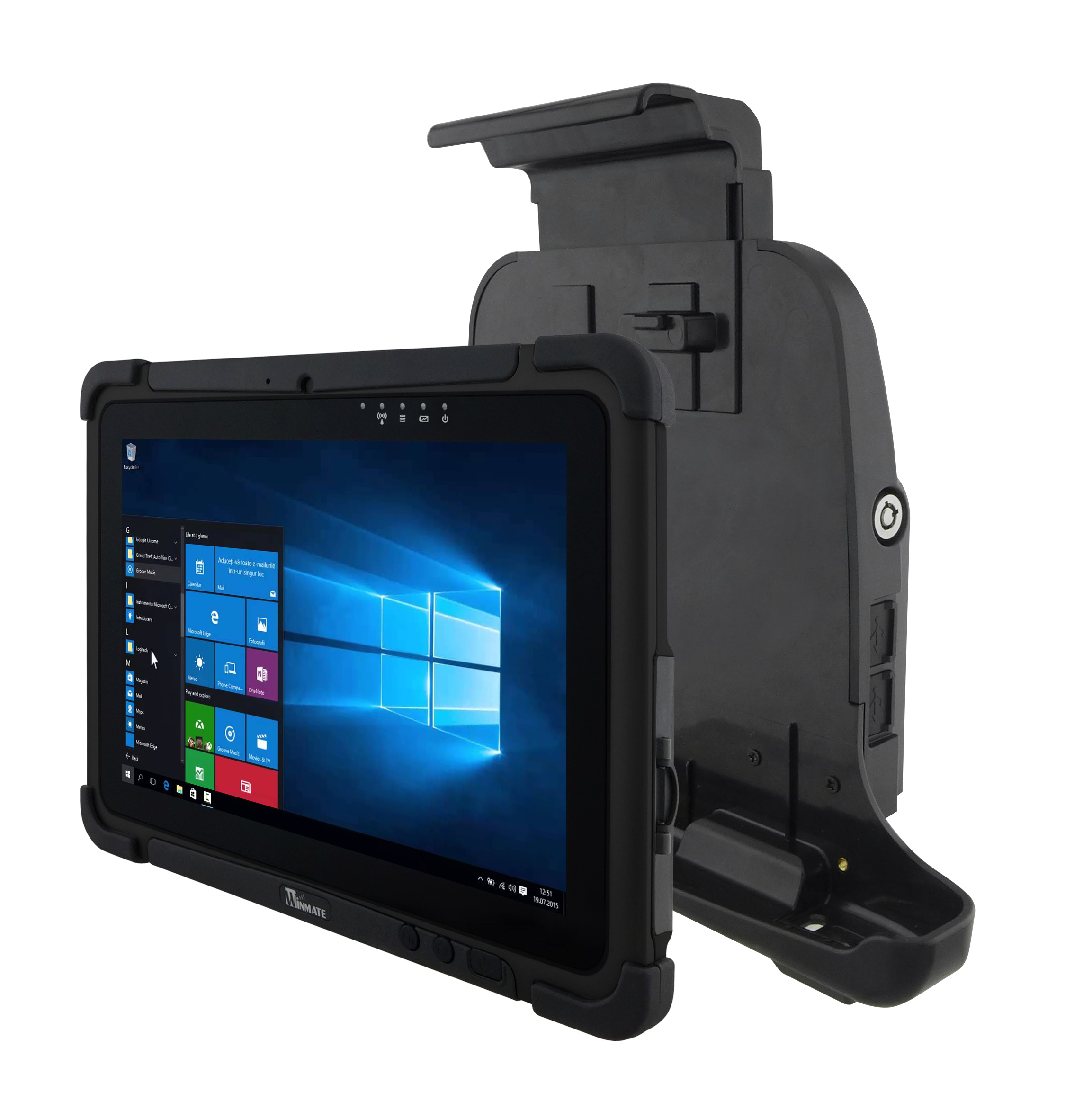

• Vehicle Dock (without VGA output)
• Battery Charger
• Active Pen
• Smart Card Reader
• High Capacity Battery
• Hand Strap
• UHF RFID Reader
• VESA Mount Kit
• Shoulder Strap
• Carry Bag
• Micro HDMI Cable
• Vehicle Charger
• Mobile Printer MX20
• Mobile Printer MX30
