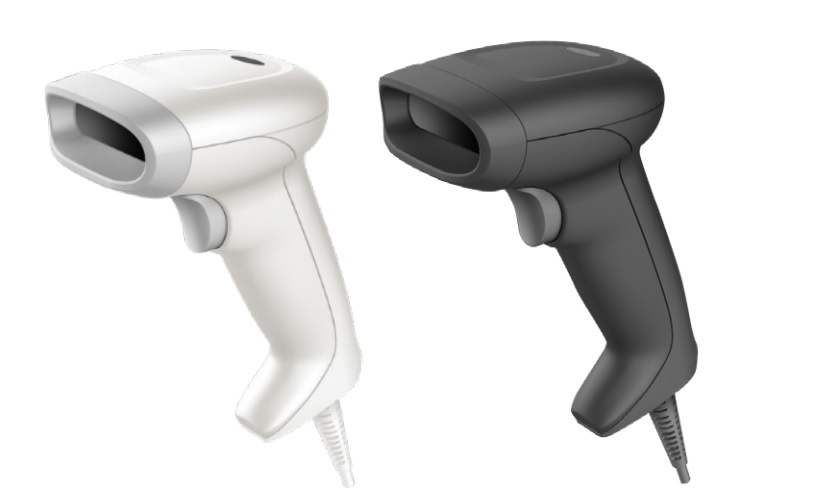

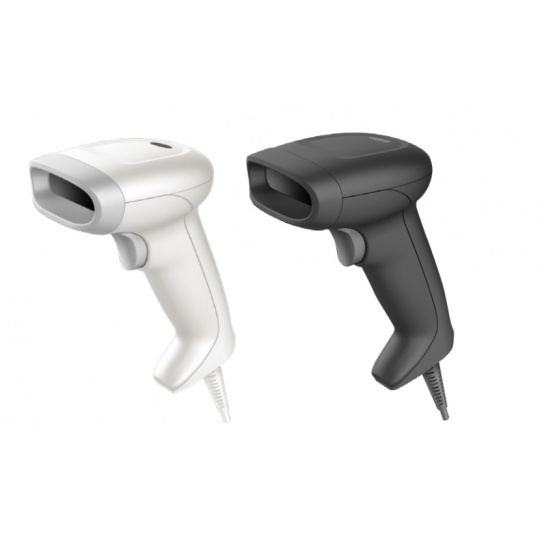

Voyager 1350g je určen pro komerční účely v prostředí vyžadující vysokou rychlost 1D/2D skenování. Skener je schopen číst čárové kódy rychle a nepřetržitě, i když jsou částečně zakryté, nebo špatně vytištěné.

FEATURES AND BENEFITS
* Flexibility and Versatility
* Industry-Leading Performance
* Intelligent Software Tools
* A Full Range of Accessories

MECHANICAL/ELECTRICAL

Dimensions (L x W x H): 72.5mm×125mm×154mm (2.85 in 4.92 in 6.06 in)
Scanner Weight: 130 g (4.58 oz)
Input Voltage: 5 ± 0.5VDC
Operating Power: 2 W (400 mA @ 5V DC)
Standby Power: 0.55 W (110 mA @ 5V DC)
Host System Interfaces: USB, RS-232

ENVIRONMENTAL

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air
Humidity: 0% to 95% relative humidity, non-condensing
Tumble Spec: 250 0.5 m (1.6 ft) tumbles (impacts)
Drop: Engineered to withstand 1.2m 2times drop to concrete
Environmental Sealing: IP40
Light Levels: 0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern: Area Image (1280 x 800 pixel array)
Motion Tolerance: up to 75 cm/s for 13 mil UPC at optimal focus
Scan Angle:
*Horizontal: 48° nominal;
*Vertical: 30° nominal
Roll, Pitch, Skew: ±180°, ±60°, ±65°
Print contrast: 25%
Decode Capabilities: Reads standard 1D, PDF, 2D, and DotCode symbologies
Note: Decode capabilities dependent on configuration.

Warranty: 3-year factory warranty
