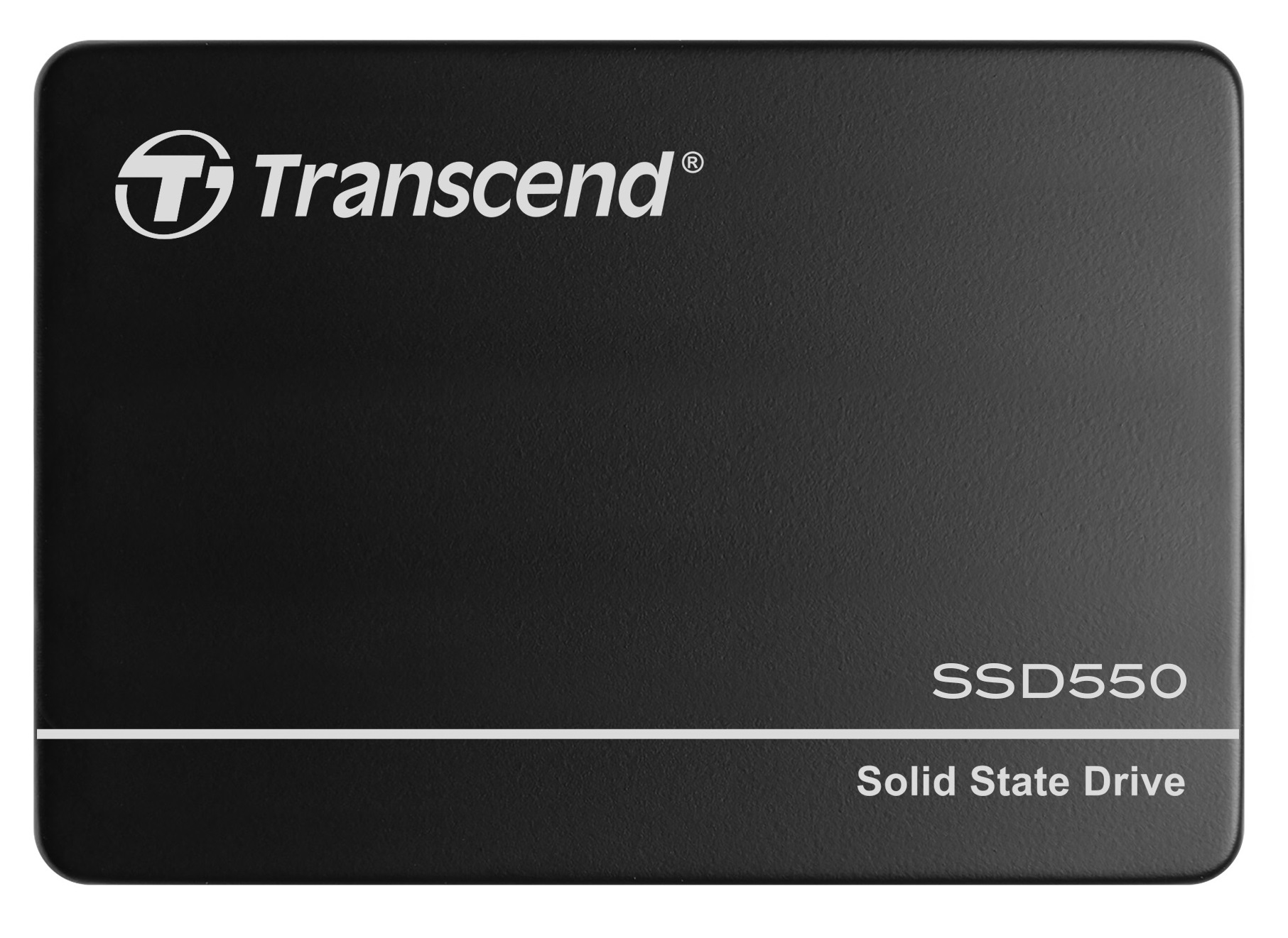

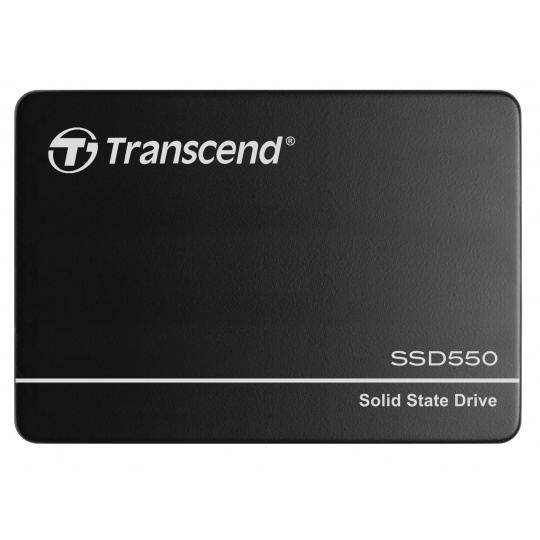

TRANSCEND SSD550I 160GB Industrial (100K P/E) SSD disk 2.5" SATA3, 3D TLC (SLC mode), 560MB/s R,520 MB/W

Transcend's 2.5" SATA III SSD550I features the 112-layer 3D NAND flash and the SLC Mode technology, achieving remarkable endurance and sustained speeds equivalent to SLC flash. Its built-in DRAM cache allows faster random speeds while the anti-sulfur resistor guarantees its reliability in harsh conditions. The SSD550I is thoroughly tested in-house, operating stably in wide operating temperatures ranging from -40°C~85°C.


Firmware Features
-Dynamic thermal throttling
-Built-in LDPC ECC (Error Correction Code) functionality
-Advanced Global Wear-Leveling and Block management for reliability
-Advanced Garbage Collection
-Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
-TRIM command for better performance
-NCQ command for better performance
-Full drive encryption with Advanced Encryption Standard (AES) (optional)
-Power-saving DevSleep (Device Sleep) mode (optional)

Hardware Features
-Compliant with RoHS 2.0 standards
-DDR3 DRAM Cache embedded
-High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
-Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
-Anti-sulfur technology implemented to prevent sulfurization in the environment
-Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
-Promised operational reliability in a wide temperature range (from -40°C to 85°C)
-Supports Transcend Scope Pro software



Appearance
Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight 54 g (1.9 oz)
Form Factor
2.5"
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
160 GB
Flash Type
112-layer 3D NAND flash (SLC mode)
Operating Environment
Operating Voltage
5V±5%
Operating Temperature
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Operation) 4.0 watt(s)
Power Consumption (IDLE) 1.2 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark) Read: Up to 560 MB/s
Write: Up to 520 MB/s
4K Random Read/Write (IOmeter) Read: Up to 90,000 IOPS
Write: Up to 85,000 IOPS
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) Up to 8,355 TBW
Drive Writes Per Day (DWPD) 47.7 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate
CE/UKCA/FCC/BSMI
Warranty
Three-year Limited Warranty
