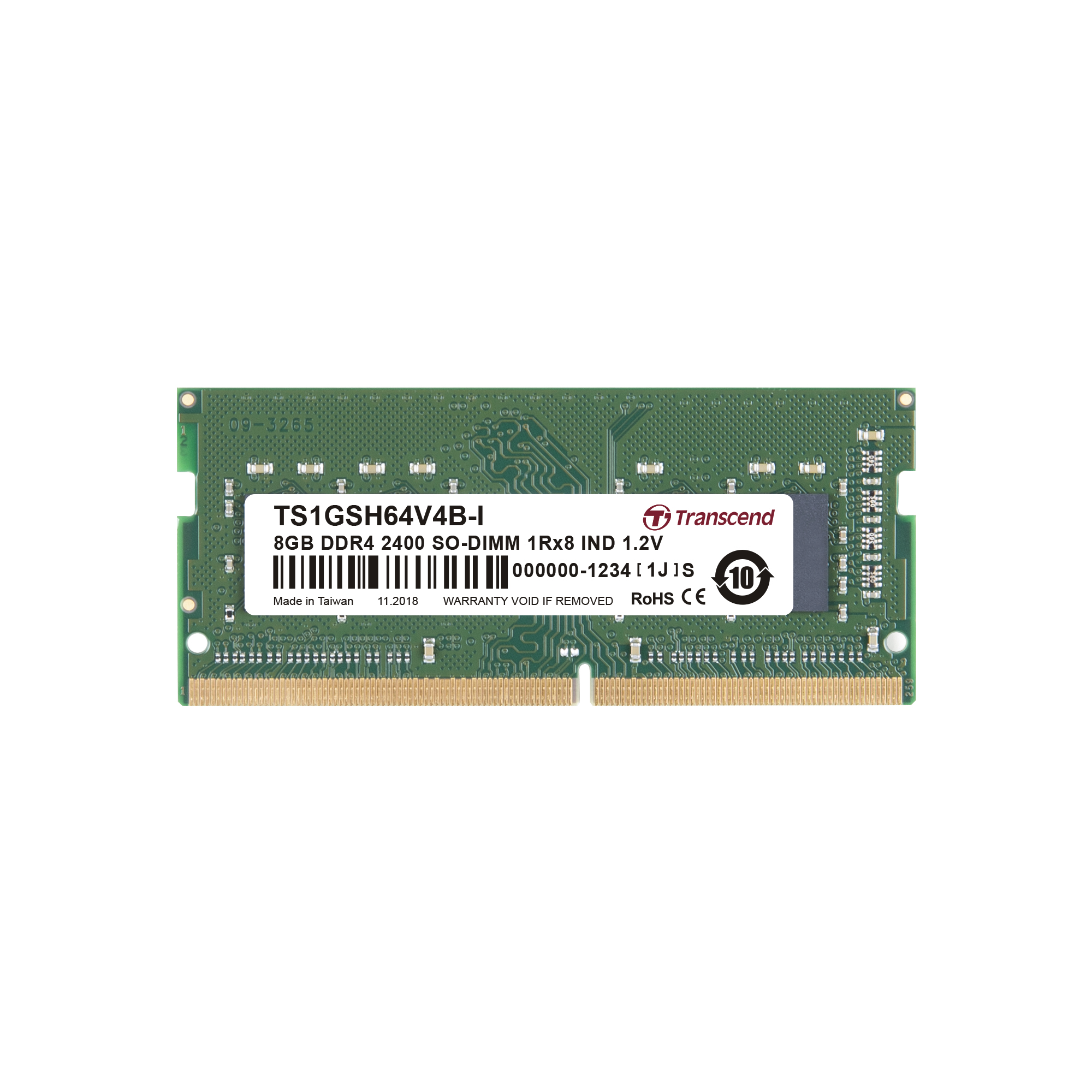

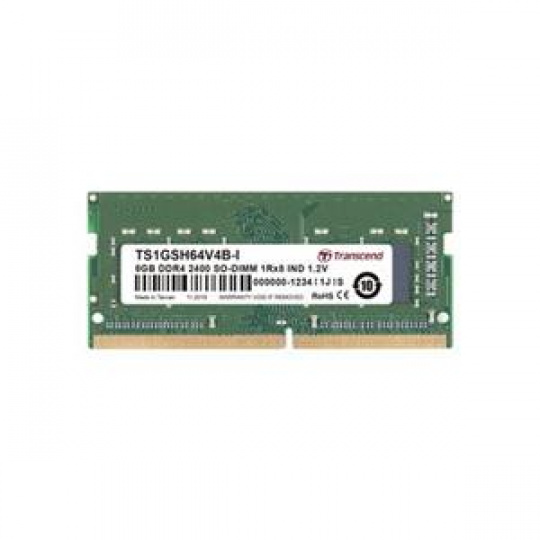

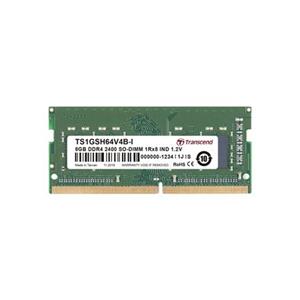

Transcend paměť 8GB Industrial SODIMM DDR4 2400 1Rx8 CL17

Built of high-quality DDR4 chips and extra-durable components, Transcend's Industrial Grade SO-DIMM is an ideal choice for space-constrained applications that require rugged durability and flawless stable operation even in extreme heat or cold environments. Rugged notebooks, POS terminals, indoor/outdoor kiosks and vending machines, medical equipment, and other industrial systems will benefit from the robust durability of Transcend's Industrial Grade memory modules, which are built with PCB contact pins that are 10 times thicker than normal. With industrial range (-40° to 85oC) operating temperature flexibility, these memory modules are specially engineered to maintain optimum performance.

Features:
JEDEC standard 1.2V ± 0.06V power supply
8 bit pre-fetch
Burst Length: 4, 8
Bi-directional differential data-strobe
Internal calibration through ZQ pin
On-die termination with ODT pin
Serial presence detect with EEPROM
Gold plating of PCB gold finger is 30u
Industrial grade capacitors ensure voltage stability
100% tested for stability, compatibility and performance

Specifications:
Module Type: DDR4 Unbuffered SO-DIMM
Frequency: 2400Mb/s/Pin
Number of Rank(s):1 rank
Number of Pin(s): 260 pin
Capacity: 8GB
DRAM Configuration: 1024Mx8
Timing Description: 17-17-17
Voltage: 1.2V
PCB Height: 1.18 inches
Operating Temperature: -40°C ? Ta ? 85°C
Note: Operating temperature is the ambient temperature (Ta)
