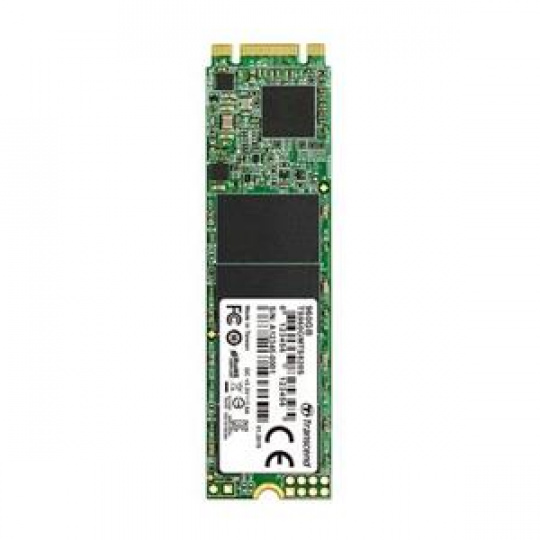

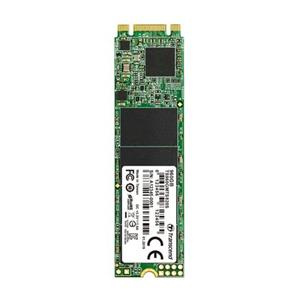

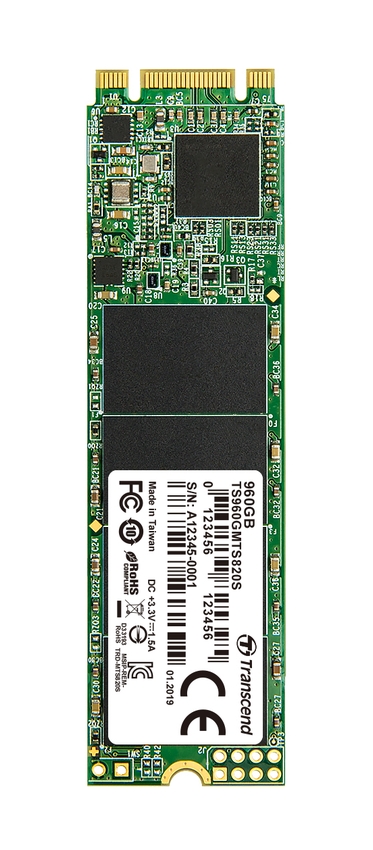

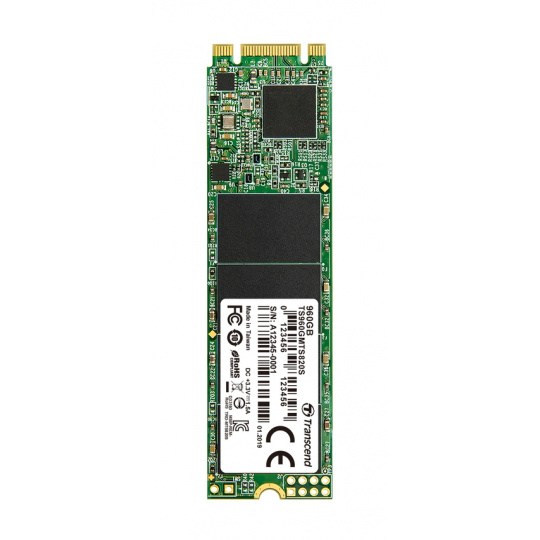

TRANSCEND MTS820S 960GB SSD disk M.2 2280, SATA III (TLC), 550MB/s R, 500MB/s W

M.2 SSD 820S
Transcend's ultra-compact SATA III 6Gb/s M.2 SSD 820S addresses the high-performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Boasting high-quality flash chips and enhanced firmware algorithms, Transcend's M.2 SSD 820S delivers optimal reliability.

3D expansion to break through limits
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.

Perfect for your Ultrabook
Compliant with M.2 form factors Type 2242 and 2280, Transcend's 3D NAND M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 80mm in length, the M.2 SSD 820S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.

Superior transfer speeds
Featuring the M.2 standard (80mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 820S reaches incredible read and write speeds of up to 550MB/s and 500MB/s. When used as a cache, the M.2 SSD 820S provides 1.5 times faster boot time than conventional hard drives.

High IOPS to speed up loading times
Dedicated to maximizing high-performance computing, the M.2 SSD 820S features 4k random file read and write speeds up to 75,000 IOPS that deliver incredibly short loading times and almost instant response for heavy graphics and multimedia applications.

Store more in less space
The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs.

Potent and feature-laden
Despite its extra-small dimensions, the M.2 SSD 820S contains advanced features to enhance the performance of the SSD. Engineered with a RAID engine and featuring built-in SLC caching technology, it utilizes LDPC coding to correct errors and ensure data integrity.

RAID engine and LDPC coding
Detects and corrects transfer errors to prevent data corruption in TLC-based SSD products

Garbage Collection
Relocates existing data to release memory blocks

Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan

DevSleep
Intelligently shuts down SATA interface when not in use to prolong device's battery life

Built-in SLC caching technology
Stores a temporary copy of the most active data to shorten access times

SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.

Specifications:
Dimensions (Max.): 80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight (Max.): 9 g (0.32 oz)
Bus Interface: SATA III 6Gb/s
Flash Type: 3D NAND flash
Capacity: 960 GB
Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
Operating Voltage: 3.3V±5%
Sequential Read/Write (CrystalDiskMark): 550/500 MB/s
4K Random Read/Write (IOmeter): 70,000/75,000 IOPS
Terabytes Written (TBW): 320 TBW
Mean Time Between Failures (MTBF): 1,000,000 hour(s)
Drive Writes Per Day (DWPD): 0.3 (3 yrs)
Technology:TRIM & NCQ Command, S.M.A.R.T., DDR3 DRAM Cache , Advanced Garbage Collection, DevSleep Mode, RAID Engine, LDPC Coding
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty
Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.
Operating System:
- Microsoft Windows 7
- Microsoft Windows 8
- Microsoft Windows 10
- Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
