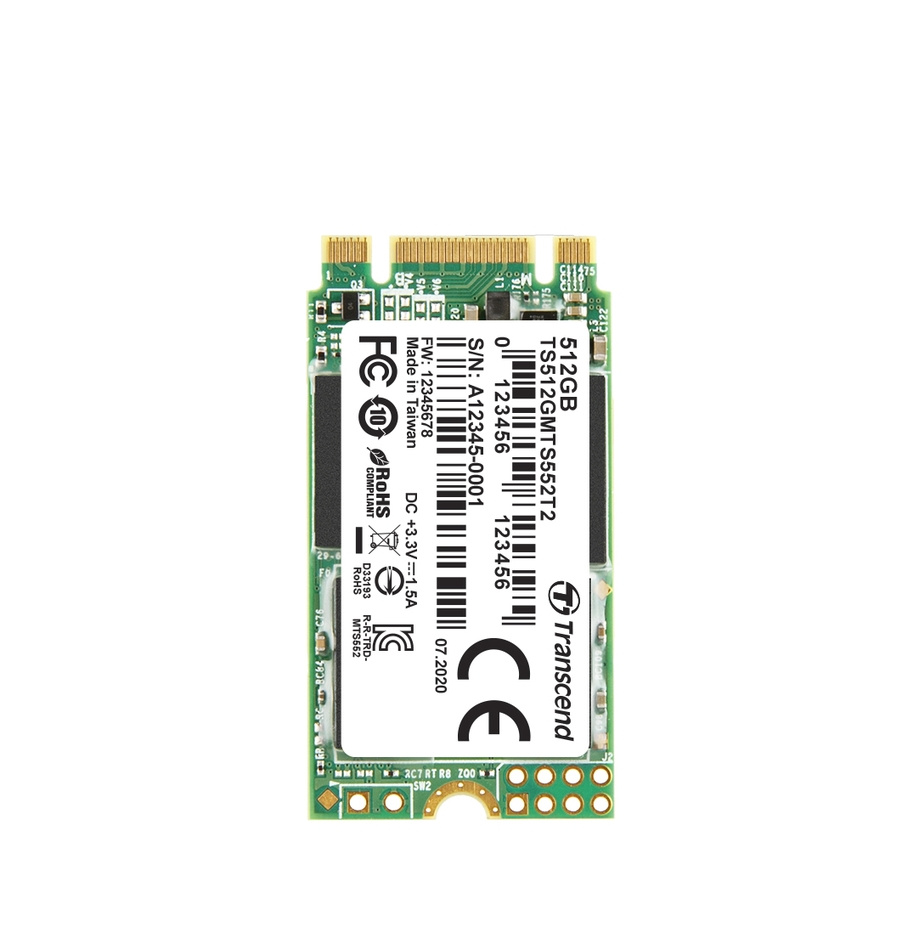

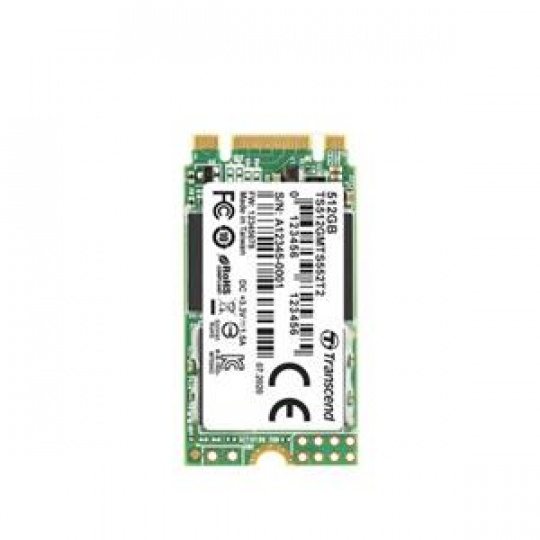

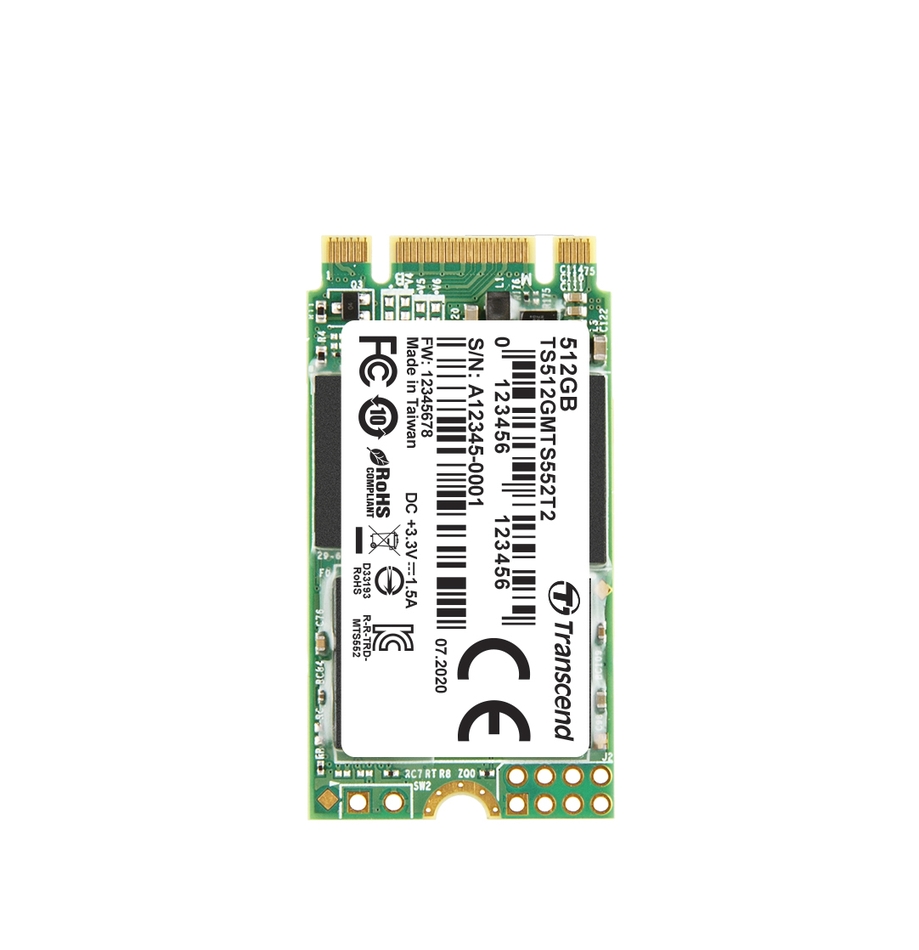

TRANSCEND MTS552T2 512GB Industrial 3K P/E SSD disk M.2, 2242 SATA III 6Gb/s (3D TLC), 560MB/s R, 510MB/s W

Transcend's MTS552T2 M.2 SSD features the SATA III 6Gb/s interface, delivering superior transfer speeds. The MTS552T2 features the latest 3D NAND technology for high storage efficiency, 30µ" PCB gold finger and Corner Bond technology for enhanced durability, built-in DRAM cache for fast access, an extended operating temperature range from -20°C to 75°C, and an endurance rating of 3K Program/Erase cycles for reliable operation.

Features:
DRAM Cache embedded
Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
30µ" PCB gold finger
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Key components fortified by default with Corner Bond technology
Dynamic Thermal Throttling
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Built-in LDPC ECC (Error Correction Code) functionality
Enhanced S.M.A.R.T. function for durability
Compliant with RoHS 2.0 standards
Supports Trim and NCQ command
Power-saving DevSleep (Device Sleep) mode

Specifications:
Dimensions: 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Form Factor: M.2
M.2 Type: 2242-D2-B-M
Bus Interface: SATA III 6Gb/s
Flash Type: 3D TLC NAND flash
Capacity: 512 GB
Operating Voltage: 3.3V±5%
Operating Temperature: Extended-20°C ~ 75°C
Storage Temperature: -40°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 1.7 watt(s)
Power Consumption (Sleep): 0.3 watt(s)
Sequential Read/Write (CrystalDiskMark, max.):
- Read: 560 MB/s
- Write: 510 MB/s
4K Random Read/Write (IOmeter, max.):
- Read: 85,000 IOPS
- Write: 85,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (Max.): 880 TBW
Drive Writes Per Day (DWPD): 1.61 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Certificate : CE/FCC/BSMI
Warranty : Three-year Limited Warranty

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
SSD Scope Pro software is required by request. Please contact us for more information.
