Exhibiting more than just ultra-fast speed, Transcend's PCIe SSD 245S delivers unbridled performance, low latency, and high stability for advanced video editors, gamers, and software engineers. Built with the PCI Express® Gen 4 x4 interface, 3D NAND flash, and a multi-channel controller, Transcend's PCIe SSD 245S means power in the palm of your hand.

Transcend's PCIe SSD 245S features the new PCIe 4.0 specification and is downwards compatible with PCIe 3.0. PCIe 4.0 unleashes a higher transfer speed for your computer and guarantees lower system latency. For content creators and gamers, this means a more seamless and immersive experience!

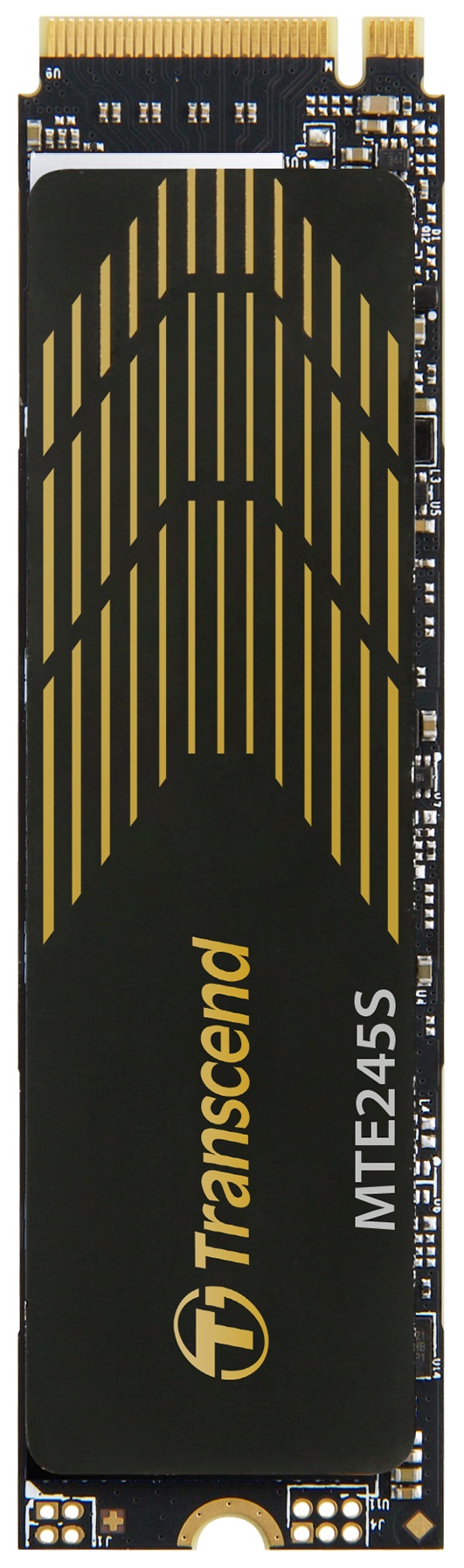

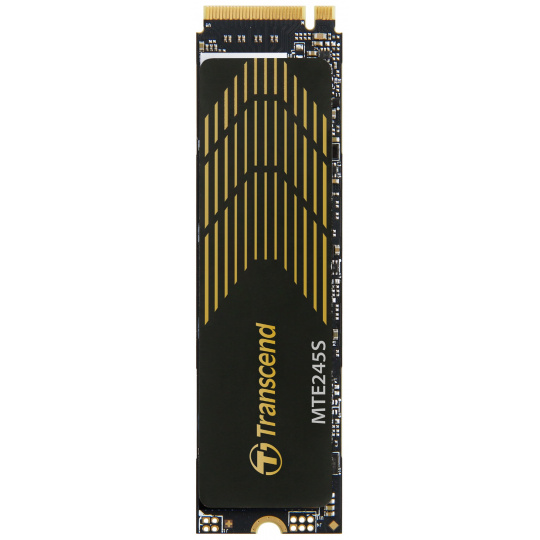

Appearance
Dimensions Single-sided 80 mm x 22 mm x 2.42 mm (3.15" x 0.87" x 0.1")
Weight 9 g (0.35 oz)
Type
M.2 2280
Interface
Bus Interface
NVMe PCIe Gen4 x4
Storage
Flash Type
3D NAND flash
Capacity
2 TB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
Up to 5,300/4,600 MB/s
4K Random Read/Write (IOmeter)
Up to 480,000/620,000 IOPS
Terabytes Written (TBW)
1200 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.33 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate
CE/UKCA/FCC/BSMI/KC/RCM
Warranty
Five-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
Removal of heatsink may cause damage to the SSD not covered under Transcend's warranty policy.
System Requirement
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
Technology
S.M.A.R.T.

Advanced Garbage Collection

RAID Engine

LDPC Coding

DRAM Cache
-
