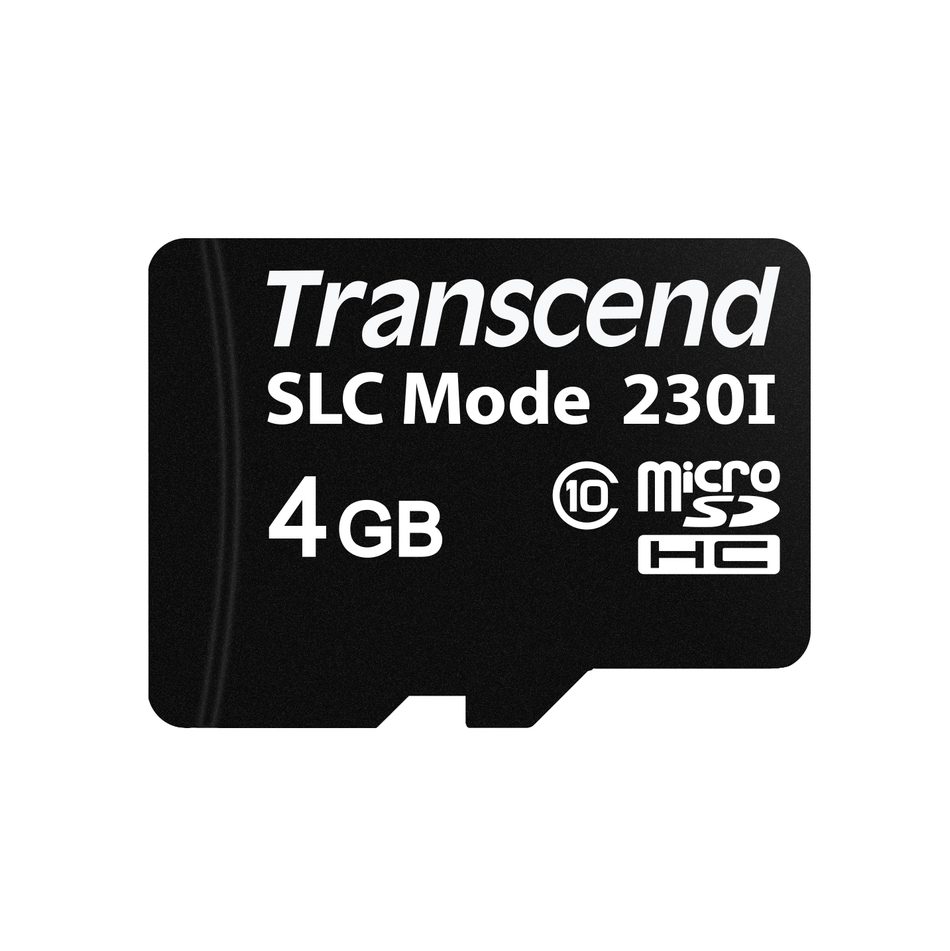

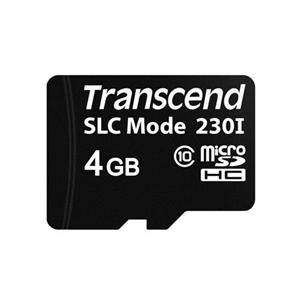

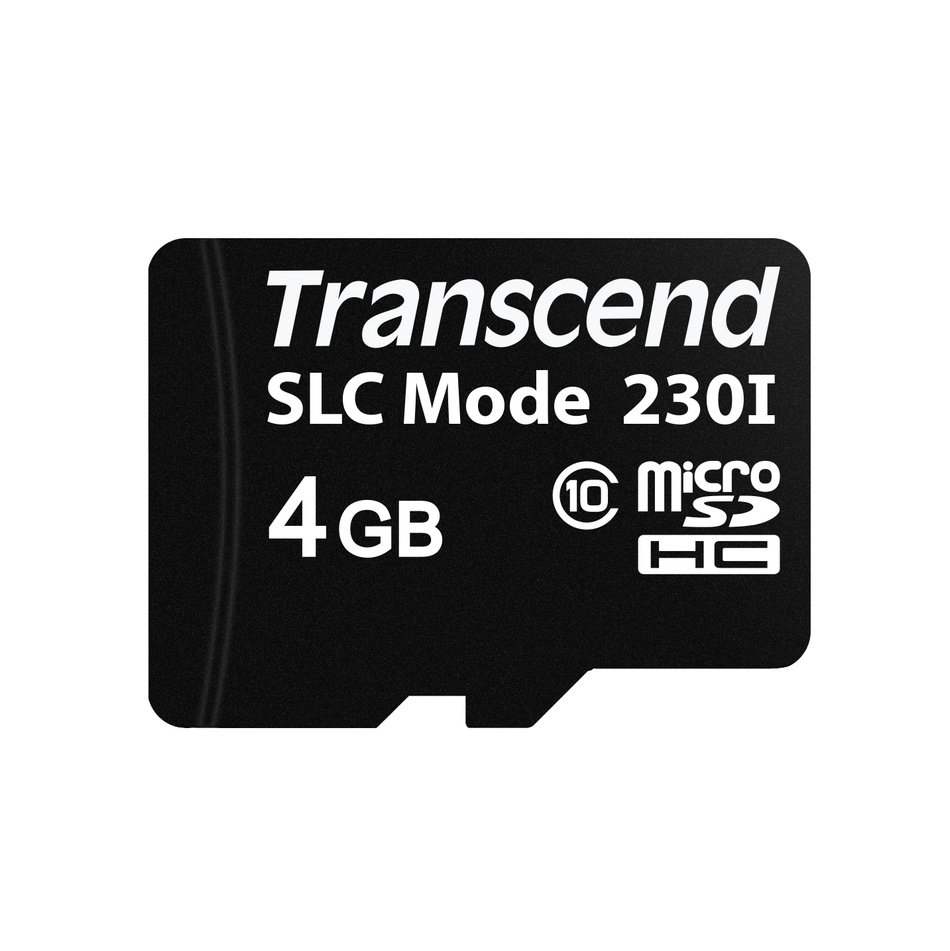

Transcend 4GB microSDHC230I (Class 10) 3D TLC (SLC mode) průmyslová paměťová karta, 22MB/s R, 21MB/s W, černá

Transcend's SLC mode solution features excellent endurance and reliability at cost-effective prices. The industrial-grade microSDHC/SDXC230I cards offer wide temperature tolerance (-40°C to 85°C) for industrial use. These cards are the ideal solution for small form factor and write-intensive applications such as medical devices, surveillance systems, and POS terminals. Transcend's memory cards are manufactured using high-quality flash chips and undergo extensive reliability testing at all stages of production.

Technologies:
- SLC Mode
- Wide Temperature
- Read Disturbance
- Garbage Collection
- Wear Leveling
- Bad Block Management
- Early Move

Firmware Features:
- Built-in ECC (Error Correction Code) functionality
- Enhanced S.M.A.R.T. function for durability
- Wear-Leveling

Hardware Features:
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 5.1
- Compliant with Speed Class 10
- Compliant with Video Speed Class 30 (V30)
- High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)

Note:
Transcend’s microSDHC/SDXC230I 2~4GB is compliant with SD 3.01 specification and 8~64GB is compliant with SD 5.1 specification.

Specifications:
Dimensions: 11 mm x 15 mm x 1 mm
Form Factor: microSD flash card
Flash Type: 3D NAND flash (SLC mode)
Capacity: 4GB
Operating Voltage: 2.7V ~ 3.6V
Drop Test: 1.5m free fall
Operating Temperature: Wide Temp.-40°C ~ 85°C
Storage Temperature: -40°C~ 85°C
Humidity: 0% ~ 95%

Acceleration: 490 m/s2 (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating): 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power Consumption (Max.): 0.2 watt(s)
Read Speed (Max.): up to 22 MB/s
Write Speed (Max.): up to 21 MB/s
Terabytes Written (Max.): 5,800 TBW

Note:
Speed may vary due to host hardware, software, usage, and storage capacity.

Certificate: CE/FCC
Warranty: Three-year Limited Warranty

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
