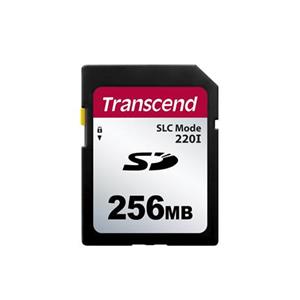

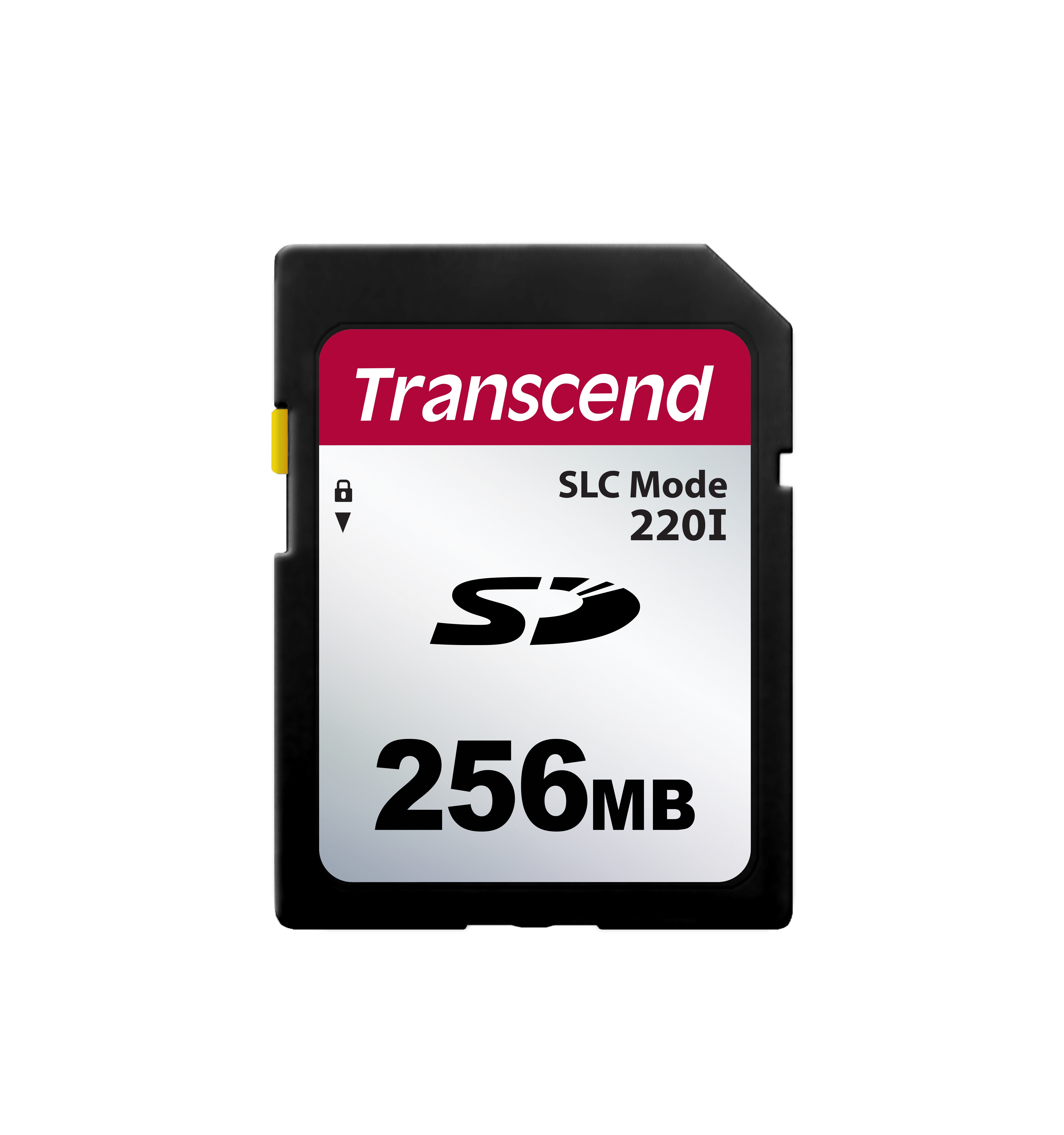

Transcend 256MB SD220I MLC průmyslová paměťová karta (SLC mode), 22MB/s R,20MB/s W, černá

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash. SDC220I SD Cards combine the advantages of high performance and exceptional endurance at an affordable price. The wide temperature(-40? ~ 85?) capability and high compatibility make them ideal for demanding industrial applications such as POS terminals, medical devices as well as portable devices equipped with an SD memory card slot.

Technologies:
- SLC Mode
- Wide Temperature
- Read Disturbance
- Garbage Collection
- Wear Leveling
- Bad Block Management
- Early Move


Firmware Features:
- Built-in ECC (Error Correction Code) functionality
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Leveling

Hardware Features:
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 3.01
- High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software

*Scope Pro is only available when used with the RDF5 card reader.

Software Solutions:

Control Center
Improve your control by easily managing devices at anytime from edge to cloud.

Scope Pro
Manage / analyze data in real time and capture more of your market.


Specifications:
Dimensions: 24 mm x 32 mm x 2.1 mm
Form Factor: SD flash card
Flash Type: MLC NAND flash (SLC mode)
Capacity: 256 MB
Operating Environment
Operating Voltage: 2.7V ~ 3.6V
Drop Test : 1.5m free fall
Operating Temperature:
Wide Temp. -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Humidity: 0% ~ 95%
Acceleration: 490 m/s2 (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating): 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power Consumption (Max.): 0.72 watt(s)
Performance:
- Read Speed (Max.): up to 22 MB/s
- Write Speed (Max.): up to 20 MB/s
Terabytes Written (TBW): up to 66 TBW

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/UKCA
Warranty: Three-year Limited Warranty

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
