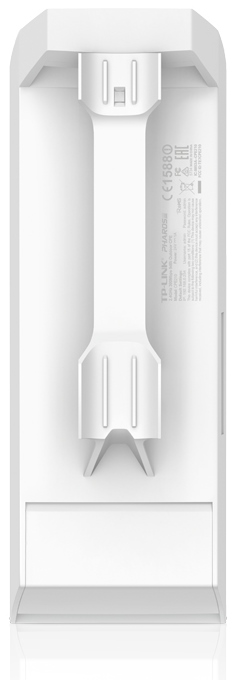

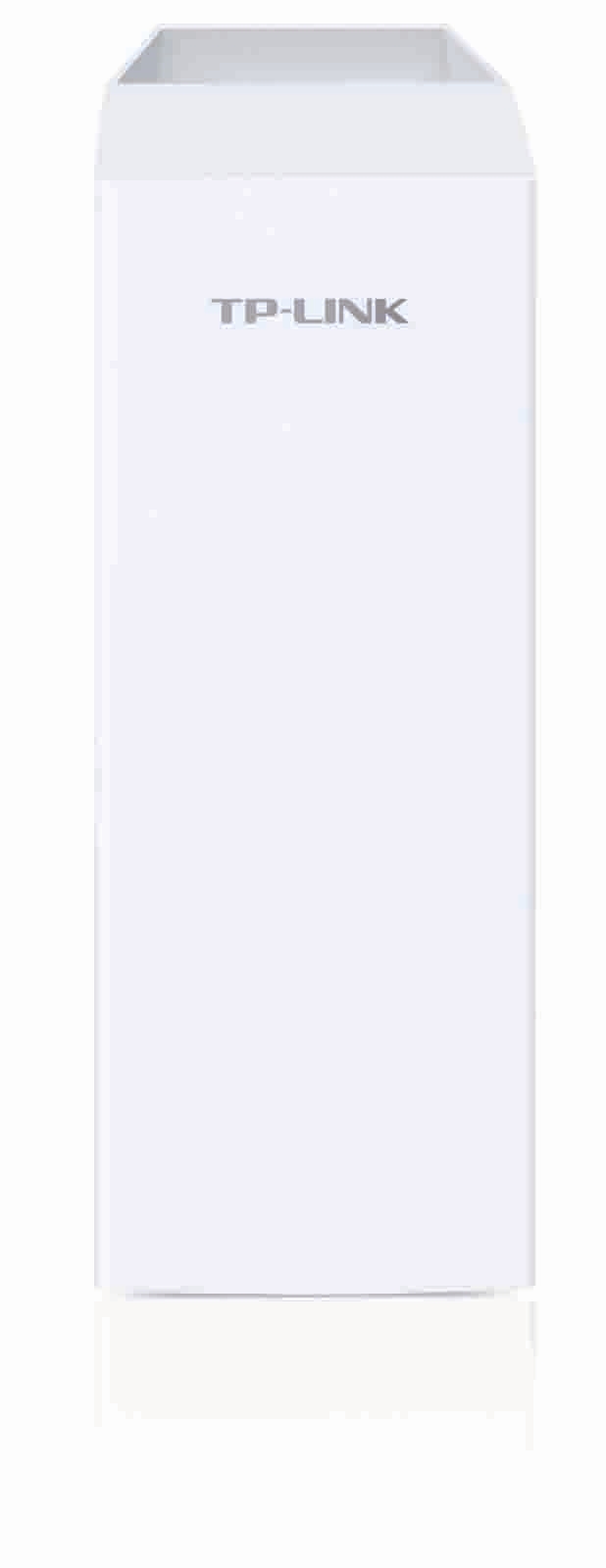

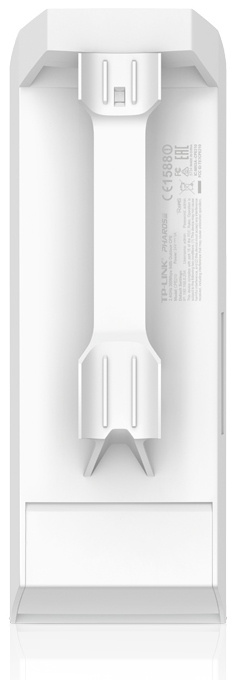

TP-Link CPE210 Outdoor 2,4GHz 300Mbps

OVERVIEW
* Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
* Adjustable transmission power from 0 to 27dBm/500mw
* System-level optimizations for more than 5km long range wireless transmission
* TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
* Centralized Management System - Pharos Control
* AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
* Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely


SPECIFICATIONS
HARDWARE FEATURES
Processor
* Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory
* 64MB DDR2 RAM, 8MB Flash

Interface
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button


Dimensions (W X D X H)
* 224 x 79 x 60 mm

Antenna Type
* Built-in 9dBi 2x2 Dual-polarized Directional Antenna
* Beam Width: 65° (H-Plane) / 35° (E-Plane)
* Note: For more details, please refer to datasheet

Protection
* 15KV ESD Protection
* 6000V Lightning Protection

Power Consumption
* 10.5 Watts Max
* Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Power Supply
* Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
* Voltage range: 16-27VDC

Enclosure
* Outdoor ASA stabilized plastic material
* IPX5 waterproof Certification

WIRELESS FEATURES
Wireless Standards
* IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol
* TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds
* Up to 300Mbps (40MHz,Dynamic)
* Up to 144.4Mbps (20MHz,Dynamic)
* Up to 72.2Mbps (10MHz,Dynamic)
* Up to 36.1Mbps (5MHz,Dynamic)

Frequency
* 2.4~2.483GHz
* Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Reception Sensitivity
* 802.11b:
- 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
* 802.11g:
- 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
* 802.11n:
- MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
- MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
- MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
- MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
- MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm

Transmission Power
* 27dBm/500mw (Adjustable power by 1dBm)
* Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES
Wireless Configurations
* Pharos MAXtream TDMA Technology
* 802.11b/g/n Modes
* Selectable Channel Width: 5/10/20/40MHz
* Automatic Channel Selection
* Transmission Power Control
* Dynamic Frequency Selection (DFS)
* WDS Enable/Disable
* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
* SSID Broadcast Enable/Disable
* Multi-SSID with VLAN Tagging (AP mode only)
* Distance/ACK Timeout Setting
* Wireless MAC Address Filter
* Wireless Advanced:
* > Beacon Interval/RTS Threshold/Fragmentation
* >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management
* Discovery and Remote Management via Pharos Control application
* HTTP/HTTPS Web-based management
* System Log
* SNMP Agent(v2c)
* Ping Watch Dog
* Dynamic DDNS
* SSH Server

System Tools
* Wireless Signal Quality Indicators:
* Signal Strength/Noise/Transmit CCQ/CPU/Memory
* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
* Spectrum Analyzer
* Speed Test
* Ping
* Traceroute

System-level Optimizations
* Optimized IGMP Snooping/Proxy for multicast applications
* Hardware watch dog

OTHERS
Certification
* CE, FCC, RoHS, IPX5

Package Contents
* Outdoor Wireless CPE
* 24V 0,25A Passive PoE Adapter
* Pole Mounting Straps
* AC Power Cord
* Installation Guide

System Requirements
* Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
* Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment
* Operating Temperature: -30°C~70°C
* Storage Temperature: -40°C~70°C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~95% non-condensing

POE ADAPTER FEATURES
Button
* Remote Reset Button

Certifications
* CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Dimensions(W x D x H)
* 110*57*33.5mm

Efficiency
* >80%

Input
* 100-240VAC, 50/60Hz

Input Current
* 0.8A Max @ 100VAC

Input Voltage
* 100VA~240VAC @ 50Hz~60Hz

Interfaces
* 1 AC Jack with Earth Ground
* 1 10/100Mbps Shielded Ethernet Port (Power + Data)
* 1 10/100Mbps Shielded Ethernet Port (Data)

Output
* 24VDC, 1.0A Max
* +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Output Voltage
* 24VDC(+4,5pins; -7,8pins)

Power Status LEDs
* 0~0.8A: Green
* 0.8A~1.0A: Red
