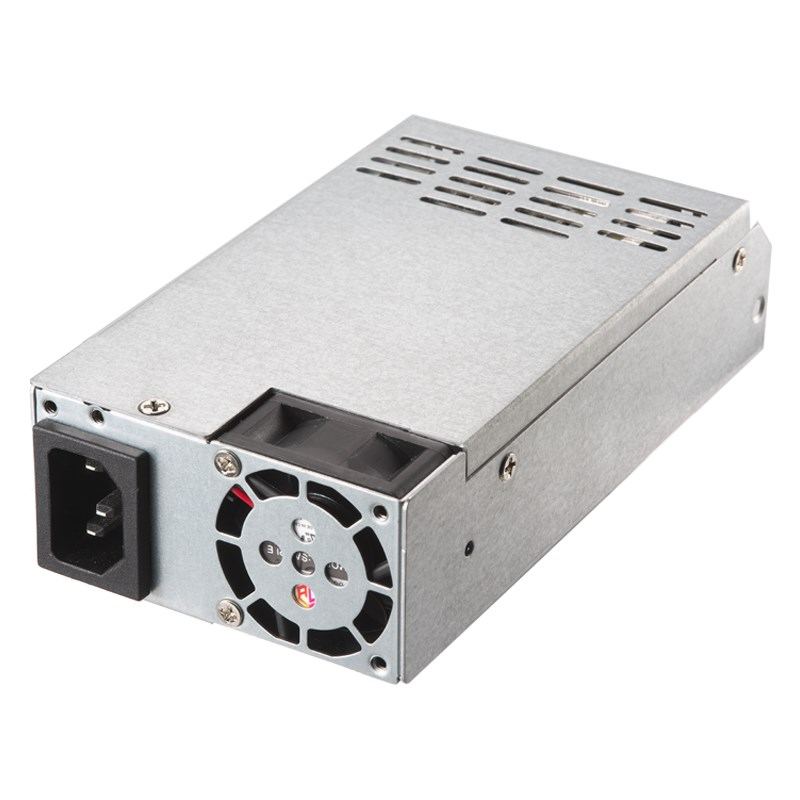

SEASONIC zdroj 250W SSP-250SUB 80+ Bronze, Flex ATX, full range
Popis a parametry
Ke stažení
SEASONIC zdroj 250W SSP-250SUB 80+ Bronze, Flex ATX, full range
SATA-ready
Fully modular
High efficiency and reliability
Low ripple and noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
Fanless Mode (up to 30 % system load)
Specifications:
Input frequency
47 - 63 Hz
Inrush current at cold sta
100 A max.
Efficiency (at normal input voltage)
? 85 %
Line regulation
± 1 % (typical)
Load regulation
± 5 % (typical)
Cross regulation
± 5 % (typical)
Ripple / noise
1%
MTBF, full load @ 25 °C ambient (excl. DC fan)
> 100,000 hours
Power Factor Correction
95 % (typical)
Fully modular
High efficiency and reliability
Low ripple and noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
Fanless Mode (up to 30 % system load)
Specifications:
Input frequency
47 - 63 Hz
Inrush current at cold sta
100 A max.
Efficiency (at normal input voltage)
? 85 %
Line regulation
± 1 % (typical)
Load regulation
± 5 % (typical)
Cross regulation
± 5 % (typical)
Ripple / noise
1%
MTBF, full load @ 25 °C ambient (excl. DC fan)
> 100,000 hours
Power Factor Correction
95 % (typical)
ParametryPorovnání
Výrobce (zdroje)
Seasonic
Výkon (zdroje)
201 - 299 W
Velikost větráku (zdroje)
4 cm
GPSR
Sea Sonic Europe B.V.;Rietveld 7,5258 ED,Berlicum,Netherlands;europe@seasonic.com
