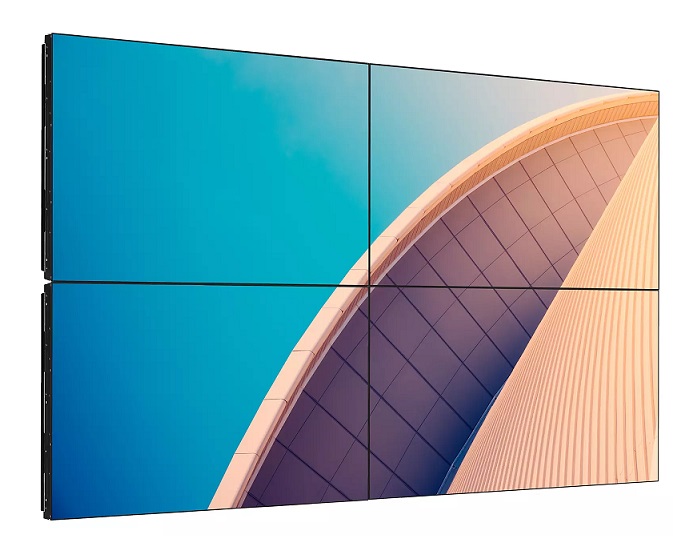

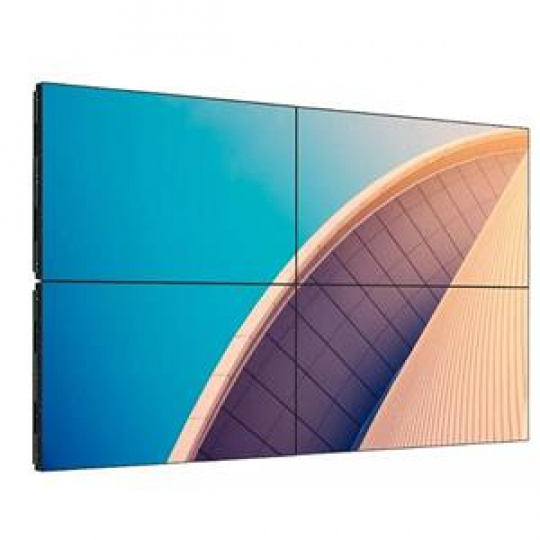

Command attention with a Philips X-Line Videowall display. An ultra-narrow bezel allows for near seamless linking for a display of any size, whilst Advanced ColourCalibration ensures a clear image in any lighting condition.

Versatile videowall display
featuring an ultra-narrow bezel
55"
Direct LED Backlight
Full HD
700cd/m2

Features

Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

FailOver ensures content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

Tiling mode. Create tiled 4K videowalls of any size
Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.

Add Android processing power with an optional CRD50 module
Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Pure Colour Pro and advanced colour accuracy
Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

Technical Specifications

Picture/Display

Diagonal screen size (metric)
138.7 cm
Diagonal screen size (inch)
54.6 inch
Panel resolution
1920x1080p
Optimum resolution
1920 x 1080 @ 60 Hz
Brightness
700 cd/m2
Contrast ratio (typical)
1200:1
Dynamic contrast ratio
500,000:1
Response time (typical)
8 ms
Aspect ratio
16:9
Viewing angle (horizontal)
178 degree
Viewing angle (vertical)
178 degree
Pixel pitch
0.63 x 0.63 mm
Display colors
1.07 M

Picture enhancement
3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement

Supported Display Resolution

Computer formats
1920 x 1080, 60Hz
1600 x 1200, 60Hz
1366 x 768, 60Hz
1360 x 768, 60Hz
1280 x 1024, 60Hz
1280 x 800, 60Hz
1280 x 768, 60Hz
1024 x 768, 60, 75Hz
1280 x 960, 60Hz
640 x 480, 60, 72, 75Hz
720 x 400, 70Hz
800 x 600, 60, 75Hz

Video formats
1080p, 50, 60Hz
720p, 50, 60Hz
1080i, 25, 30Hz

Connectivity

Video input
Component BNC (x3)
Composite (Share component Y)
DisplayPort
DVI-D (x1)
VGA (Analog D-Sub) (x1)
HDMI (x2)

Video output
DisplayPort
DVI-I (x1)

Audio input
3.5 mm jack
Audio Left/Right (RCA)

Audio output
Audio Left/Right (RCA)

External control
IR (in/out) 3.5 mm jack
RS232C (in/out) 2.5 mm jack
RJ45

Other connections
OPS

Convenience

Signal loop through
RS232
DisplayPort
IR Loopthrough
DVI Loopthrough

Ease of installation
Carrying Handles
Smart Insert

Energy saving functions
Smart Power

Network controllable
RS232
RJ45

Placement
Landscape (24/7)
Portrait (24/7)

Screen saving functions
Pixel Shift, Low Bright
Tiled Matrix
Up to 15 x 15
Control software
SICP / CMND&Control

Dimensions

Bezel thickness
3.5 mm (A-A)
Bezel width
Top/Left: 2.3mm, Bottom/Right: 1.2mm
Set Width
1213.4 mm
Set Height
684.2 mm
Set Depth
98 mm(D@Wall Mount)/ 99.2 (D@Handle) mm
Set Width (inch)
47.77 inch
Set Height (inch)
26.94 inch
Set Depth (inch)
3.86 (D@Wall Mount)/ 3.91 (D@Handle) inch
Product weight
26.2 kg
Wall Mount
400 x 400 mm

Operating conditions

Temperature range (operation)
0 ~ 40 °C
Temperature range (storage)
-20 ~ 60 °C
Altitude
0 ~ 3000 m
MTBF
50,000 hour(s)
Humidity range (operation)[RH]
20 ~ 80% RH (No condensation)
Humidity range (storage) [RH]
5 ~ 95% RH (No condensation)

Power

Standby power consumption
<0.5W
Consumption (Max)
400 W
Consumption (Typical)
270 W

Sound

Built-in speakers
2 x 10W (RMS)

Accessories

Included accessories
Remote Control
Batteries for remote control
AC Power Cord
Quick start guide
Edge alignment pins
DVI-D cable
RS232 cable

Optional accessories
Edge finishing kit
Color calibration kit
CRD41

Included Accessories
Edge Alignment Kit (1) -1 pcs
Edge Alignment Kit (2) - 2 pcs
HDMI cable (1.8 m) (x1)
IR cable
IR sensor cable (1.8 m) (x1)
RS232 daisy chain cable
Thumb Screw (x8)

Miscellaneous

On-Screen Display Languages
Arabic
Simplified Chinese
Traditional Chinese
English
French
German
Italian
Japanese
Polish
Russian
Spanish
Turkish

Regulatory approvals
CE
UL/cUL
CB
GOST
EPEAT
FCC, Class B

Warranty
3 year warranty

Multimedia Applications

USB Playback Audio
AAC
AIF
AIFF
ASF
LPCM
M3U
M4A
MP3
MP4
PLS
WMA

USB Playback Picture
BMP
GIF
JPEG
JPG
PNG

USB Playback Video
ISM
M4V
Manifest
MK3D
MKV
MP4
MPD
MPEG
MPG
MT2
MTS
TS
TTS
VOB

What's in the box?

Other items in the box
Remote Control
Batteries for remote control
AC Power Cord
Quick start guide
Edge alignment pins
DVI-D cable
RS232 cable
Optional accessories: Edge finishing kit
Optional accessories: Color calibration kit
Optional accessories: CRD41
