802.11ac, Dual Band, 1-port, Wall-plug, External Antennas

Boost your existing network range, delivering AC dual band WiFi up to 1200 Mbps. This compact AC1200 wall-plug WiFi booster is small and discreet, easily blending into your home decor. It works with any standard WiFi router and is ideal for HD video streaming and gaming. Get the connectivity you need for iPads®, smartphones, laptops & more.

NETGEAR AC1200 WiFi Range Extender Essentials Edition boosts your existing network range, delivering AC dual band WiFi up to 1200 Mbps. It works with any standard WiFi router & is ideal for HD video streaming & gaming. This Range Extender is the world's smallest AC1200 wall-plug extender. Get the connectivity you need for iPads®, smartphones, laptops & more.

AC1200 WiFi - AC dual band WiFi up to 1200 Mbps.
External Antennas For better WiFi coverage and more speed.

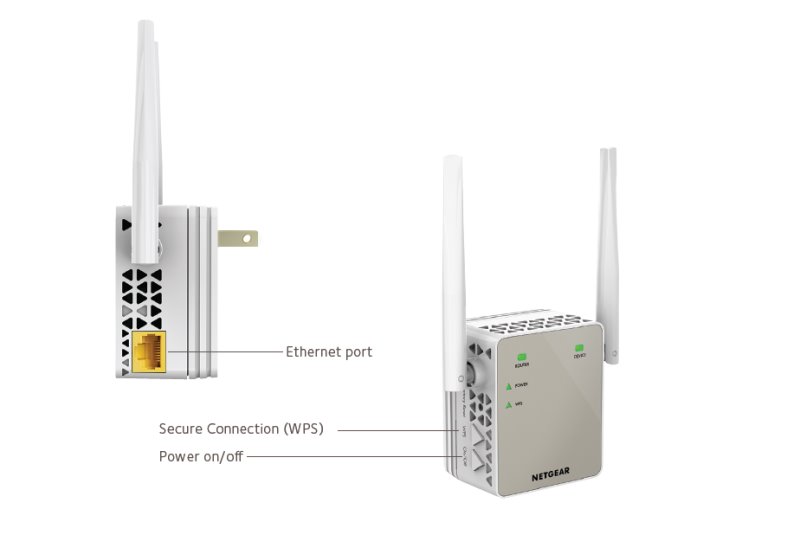

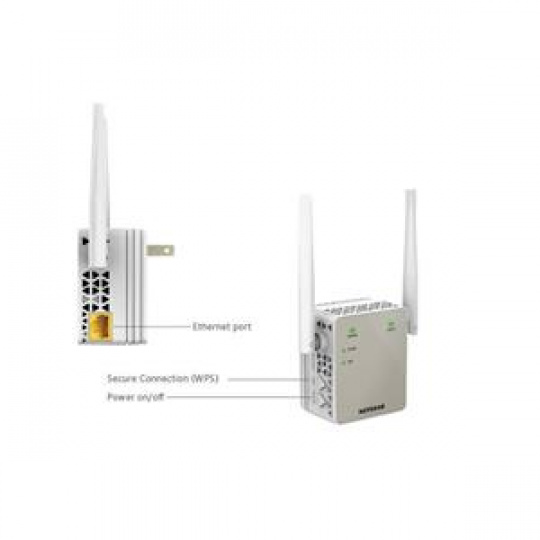

Ethernet Port - Connect a wired device like a game console or a smart TV to your WiFi network
Simultaneous Dual Band WiFi- Extend 2.4 & 5GHz WiFi up to 1200 Mbps & reduce interference.
FastLane™ Technology - Use both WiFi bands to establish one super high-speed connection; ideal for HD streaming & gaming.
Two WiFi Modes - Extend existing WiFi connection or create a new AC WiFi access point.

WIFI TECHNOLOGY
802.11ac

WIFI TECH AND RANGE
WIFI PERFORMANCE
AC1200 (300 Mbps+900 Mbps)†

WIFI BAND
Dual Band 2.4 & 5GHz

NUMBER OF ETHERNET PORTS
One (1) 10/100 Mbps Fast Ethernet port with auto-sensing technology

NUMBER OF USB PORTS
N/A

KEY FEATURES
Dual band WiFi up to 1200 Mbps

Supports new 802.11ac & b/g/n WiFi devices

High-power external antennas for better performance

Pleasantly small design for discreet, convenient placement in your home

1 Fast Ethernet port to connect wired devices such as a game console or a smart TV

FastLane™ feature provides high-speed WiFi on both wireless bands and is ideal for HD gaming and video streaming

EASE OF USE
CD-less setup—great for mobile devices

Push ‘N’ Connect using Wi-Fi Protected Setup®(WPS)1

SECURITY
WiFi Protected Access® (WPA/WPA2-PSK) and WEP

PACKAGE CONTENTS
AC1200 WiFi Range Extender (EX6120)

Quick start guide

PHYSICAL SPECIFICATIONS
Dimensions: 55.17 x 67.17 x 39 mm (2.17 x 2.64 x 1.54 in)

Weight: 130 g (0.29 lb)

STANDARDS
IEEE® 802.11 b/g/n 2.4GHz

IEEE 802.11 a/n/ac 5GHz

One (1) 10/100 Mbps Fast Ethernet port with auto-sensing technology

SYSTEM REQUIREMENTS
2.4 and/or 5GHz 802.11ac & b/g/n wireless router or gateway

Microsoft® Internet Explorer 8.0, Firefox® 20, Safari® 5.1, or Google Chrome 25.0 browsers or higher
