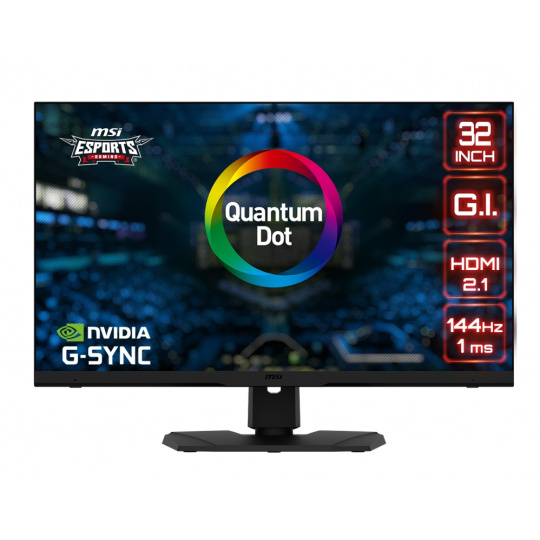

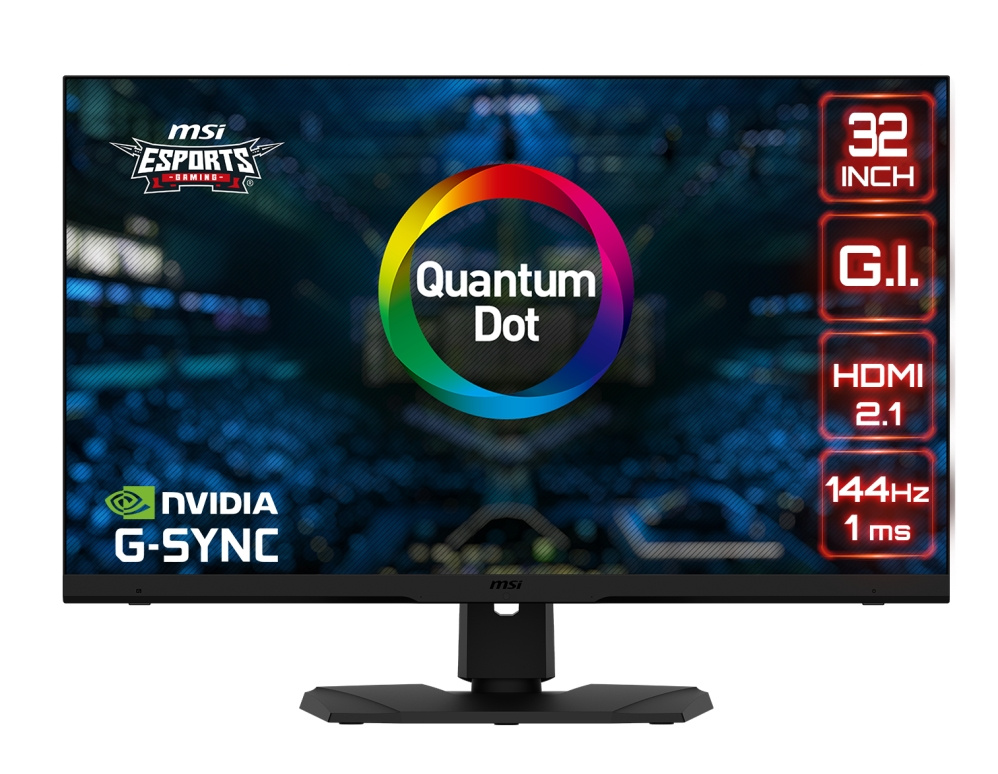

MSI Gaming monitor Optix MPG321UR QD, 32"/3840 x 2160 /IPS, 144Hz/1ms/1000:1/400cd / m2 /2xHDMI/DP/USB-C/USB

MKT Name Optix MPG321UR QD
Entity MKT Name Optix MPG321UR QD
MKT Spec Optix MPG321UR QD
Website Name Optix MPG321UR-QD
Color ID1/Black-Black
Local Dimming 16 Zones
Display
Screen Size 32" (81.28 cm)
Active Display Area (mm) 708.48(H) x 398.52(V)
Curvature Flat
Panel Type IPS
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1845(H)x0.1845(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology G-SYNC Compatible
Dynamic Refresh Rate Activated Range 47Hz-144Hz
HDR (High dynamic range) DisplayHDR 600
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 600
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 180~317 KHz(H) / 47~144 Hz(V)
Refresh Rate 144HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) N/A
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 124%/96%
NTSC (CIE1931 area percentage/overlap) 112%/97%
sRGB (CIE1976 area percentage/overlap) 143%/99%
sRGB (CIE1931 area percentage/overlap) 158%/99%
Adobe RGB (CIE1976 area percentage/overlap) 122%/99%
Adobe RGB (CIE1931 area percentage/overlap) 117%/99%
DCI-P3 (CIE1976 area percentage/overlap) 114%/97%
DCI-P3 (CIE1931 area percentage/overlap) 116%/94%
Rec.709 (CIE1976 area percentage/overlap) 143%/99%
Rec.709 (CIE1931 area percentage/overlap) 158%/99%
Rec.2020 (CIE1976 area percentage/overlap) 82%/82%
Rec.2020 (CIE1931 area percentage/overlap) 83%/83%
Quantum Dot YES
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 144Hz)
Note_HDMI 3840 x 2160 (Up to 144Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.2
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.2
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in N/A
Mic-in 1
Mic-in upstream NA
Headphone-out 1
Audio Combo 1
USB 2.0 Type A 6
USB 2.0 Type B 3
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker N/A
Webcam N/A
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 41.9
Annual Energy Consumption (KWh) N/A
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 5V/3A
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 100 mm
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Pallet
pcs/Carton
pallet Q'ty (by air) pcs 14
Q'ty/20cy (by air) pcs 140
Q'ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1100
Dimension (H)(by air) mm 1418
Net Weight (by air) kg 197.4
Gross Weight (by air) kg 218.6
pallet Q'ty (by sea) pcs 20
Q'ty/20cy (by sea) pcs 200
Q'ty/40cy (by sea) pcs 420
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 1971
Net Weight (by sea) kg 282
Gross Weight (by sea) kg 303.2
Inside Carton Dimension (WxDxH)
Inside Carton Dimension (WxDxH) (mm) 975 x 181 x 550
Inside Carton Dimension (WxDxH) (inch) 38.39 x 7.13 x 21.65
Outer Carton Dimension (WxDxH)
Outer Carton Dimension (WxDxH) (mm) 990 x 196 x 575
Outer Carton Dimension (WxDxH) (inch) 38.98 x 7.72 x 22.64
Product Dimension with Stand (WxDxH)
Product Dimension with Stand (WxDxH) (mm) 727.1 x 251.8 x 482.2
Product Dimension with Stand (WxDxH) (inch) 28.63 x 9.91 x 18.98
Product Dimension without Stand (WxDxH)
Product Dimension without Stand (WxDxH) (mm) 727.1 x 70.7 x 432.4
Product Dimension without Stand (WxDxH) (inch) 28.63 x 2.78 x 17.02
Stand Dimension (WxDxH)
Stand Dimension (WxDxH) (mm) N/A
Stand Dimension (WxDxH) (inch) N/A
Weight
Weight (Net kg) 10.1
Weight (Net lbs) 22.27
Weight (Gross kg) 14.1
Weight (Gross lbs) 31.09
Weight Without Stand (kg) 7.0
Weight Without Stand (lbs) 15.43
Accessories
DisplayPort Cable 1
HDMI Cable 1
DVI Cable 0
USB Type A to Type B Cable 3
USB Type C to Type A Cable 0
USB Type C to Type C Cable 1
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 1
3.5mm Mic Cable N/A
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 1
Mouse Bungee Unit 1
VESA Screw 4
Switch Case N/A
Portable Screen Protection Case N/A
Monitor Hood N/A
Speaker (Accessories) N/A
Model Info
Series Name Gaming
Segment Name MPG
Segment Name2 MPG321U
Segment Name3 MPG321UR QD
Barcode Info
EAN 4719072794644
