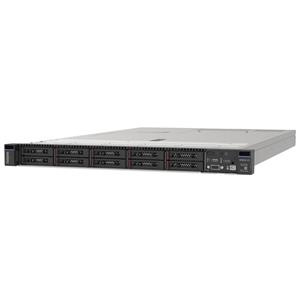

Lenovo ThinkSystem SR630v3 1x Silver 4509Y 8C 2.6GHz 125W/1x32GB/0GB 2,5"(8)/9350-8i(2GB f)/XCC2-P/1100WTitanium
Popis a parametry
Ke stažení
Lenovo ThinkSystem SR630v3 1x Silver 4509Y 8C 2.6GHz 125W/1x32GB/0GB 2,5"(8)/9350-8i(2GB f)/XCC2-P/1100WTitanium
7D73A047EA 1x Silver 4509Y 8C 125W 2.6G 1x 32GB 1Rx4 9350-8i 2GB Int 8x 2.5" SAS; Open bay Open Open 1x1100W Titanium 6x Perf Opt Yes Plat Yes
Machine types 7D72 - 1 year warranty, 7D73 - 3 year warranty
Form factor 1U rack.
Processor One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 350 W.
Chipset Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream"
Memory 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC.
Persistent memory No support.
Memory maximum Up to 8TB by using 32x 256GB 3DS RDIMMs
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays
Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays:
Front bays can be one of the following:
10x 2.5-inch hot-swap: All AnyBay
10x 2.5-inch hot-swap: All NVMe
10x 2.5-inch hot-swap: 6x SAS/SATA + 4x AnyBay
10x 2.5-inch hot-swap: 6x SAS/SATA + 4x NVMe
10x 2.5-inch hot-swap: 6x SAS/SATA + 2x AnyBay + 2x NVMe
8x 2.5-inch hot-swap SAS/SATA
16x EDSFF E1.S form factor hot-swap drives
4x 3.5-inch hot-swap SAS/SATA
4x 3.5-inch hot-swap AnyBay
Rear can be one of the following:
2x 2.5-inch hot-swap SAS/SATA bays
2x 2.5-inch hot-swap NVMe bays
2x 7mm 2.5-inch hot-swap SATA bays
2x 7mm 2.5-inch hot-swap NVMe bays
Internal M.2 module supporting up to two M.2 drives, for OS boot and drive storage support
See Supported drive bay combinations for details. AnyBay bays support SAS, SATA or NVMe drives. NVMe bays only support NVMe drives. Rear drive bays can be used in conjunction with 2.5-inch front drive bays. The server supports up to 12x NVMe drives all with direct connections (no oversubscription).
Maximum internal storage
2.5-inch drives:
368.64TB using 12x 30.72TB 2.5-inch SAS/SATA SSDs
737.28TB using 12x 61.44TB 2.5-inch NVMe SSDs
28.8TB using 12x 2.4TB 2.5-inch HDDs
15.36TB using 2x 7.68TB 7mm SSDs
EDSFF drives
122.88TB using 16x 7.68TB E1.S EDSFF NVMe SSDs
3.5-inch drives:
96TB using 4x 24TB 3.5-inch HDDs
61.44TB using 4x 15.36TB 3.5-inch SAS/SATA SSDs
51.2TB using 4x 12.8TB 3.5-inch NVMe SSDs
Storage controller
12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID)
Up to 16x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs)
NVMe Retimer Adapter (supports Intel VROC NVMe RAID)
12 Gb SAS/SATA RAID adapters
8, 16 or 32 ports
Up to 8GB flash-backed cache
PCIe 4.0 or PCIe 3.0 host interface
12 Gb SAS/SATA HBA (non-RAID)
8-port and 16-port
PCIe 4.0 or PCIe 3.0 host interface
Optical drive bays No internal optical drive.
Tape drive bays No internal backup drive.
Network interfaces Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support.
PCI Expansion slots
Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot.
Rear: Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0), all with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slot 3 requires two processors.
Four choices for rear-access slots:
3x PCIe x16 low-profile slots
1x PCIe x16 full-height half-length slot + 1x PCIe x16 low-profile slot
1x PCIe x16 low-profile slot (also supports 2x rear 2.5-inch drive bays)
2x PCIe x16 low-profile slot (also supports 2x rear 7mm 2.5-inch drive bays)
For 2.5-inch front drive configurations, the server supports the installation of a CFF RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots.
Front: The server also supports slots at the front of the server:
1x PCIe x16 or x8 full-height half-length slot
1x PCIe x8 low-profile slot
1x OCP 3.0 slot (mutually exclusive with the OCP slot at the rear)
Note: Not all slots are available in a 1-processor configuration. See the I/O expansion for details.
GPU support Supports up to 3x single-wide GPUs
Ports
Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port.
Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Optional second RJ-45 1GbE systems management port for XCC remote management (installed in OCP adapter slot).
Internal: 1x USB 3.2 G1 connector for operating system or license key purposes
Cooling Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply.
Power supply Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input.
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Hot-swap parts Drives, power supplies, and fans.
Systems management Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC), XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC Platinum to enable remote control functions and other features.
Security features Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-
LenovoPress - https://lenovopress.lenovo.com/lp1600-thinksystem-sr630-v3-server
Machine types 7D72 - 1 year warranty, 7D73 - 3 year warranty
Form factor 1U rack.
Processor One or two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"), or one or two 4th Gen Intel Xeon Scalable processors (formerly codenamed "Sapphire Rapids"). Supports processors up to 64 cores, core speeds of up to 3.9 GHz, and TDP ratings of up to 350 W.
Chipset Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream"
Memory 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4800 MHz at 2 DPC.
Persistent memory No support.
Memory maximum Up to 8TB by using 32x 256GB 3DS RDIMMs
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays
Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays:
Front bays can be one of the following:
10x 2.5-inch hot-swap: All AnyBay
10x 2.5-inch hot-swap: All NVMe
10x 2.5-inch hot-swap: 6x SAS/SATA + 4x AnyBay
10x 2.5-inch hot-swap: 6x SAS/SATA + 4x NVMe
10x 2.5-inch hot-swap: 6x SAS/SATA + 2x AnyBay + 2x NVMe
8x 2.5-inch hot-swap SAS/SATA
16x EDSFF E1.S form factor hot-swap drives
4x 3.5-inch hot-swap SAS/SATA
4x 3.5-inch hot-swap AnyBay
Rear can be one of the following:
2x 2.5-inch hot-swap SAS/SATA bays
2x 2.5-inch hot-swap NVMe bays
2x 7mm 2.5-inch hot-swap SATA bays
2x 7mm 2.5-inch hot-swap NVMe bays
Internal M.2 module supporting up to two M.2 drives, for OS boot and drive storage support
See Supported drive bay combinations for details. AnyBay bays support SAS, SATA or NVMe drives. NVMe bays only support NVMe drives. Rear drive bays can be used in conjunction with 2.5-inch front drive bays. The server supports up to 12x NVMe drives all with direct connections (no oversubscription).
Maximum internal storage
2.5-inch drives:
368.64TB using 12x 30.72TB 2.5-inch SAS/SATA SSDs
737.28TB using 12x 61.44TB 2.5-inch NVMe SSDs
28.8TB using 12x 2.4TB 2.5-inch HDDs
15.36TB using 2x 7.68TB 7mm SSDs
EDSFF drives
122.88TB using 16x 7.68TB E1.S EDSFF NVMe SSDs
3.5-inch drives:
96TB using 4x 24TB 3.5-inch HDDs
61.44TB using 4x 15.36TB 3.5-inch SAS/SATA SSDs
51.2TB using 4x 12.8TB 3.5-inch NVMe SSDs
Storage controller
12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID)
Up to 16x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs)
NVMe Retimer Adapter (supports Intel VROC NVMe RAID)
12 Gb SAS/SATA RAID adapters
8, 16 or 32 ports
Up to 8GB flash-backed cache
PCIe 4.0 or PCIe 3.0 host interface
12 Gb SAS/SATA HBA (non-RAID)
8-port and 16-port
PCIe 4.0 or PCIe 3.0 host interface
Optical drive bays No internal optical drive.
Tape drive bays No internal backup drive.
Network interfaces Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support.
PCI Expansion slots
Up to 5x slots, 3x at the rear and 2x at the front, plus 1 OCP 3.0 slot.
Rear: Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0), all with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slot 3 requires two processors.
Four choices for rear-access slots:
3x PCIe x16 low-profile slots
1x PCIe x16 full-height half-length slot + 1x PCIe x16 low-profile slot
1x PCIe x16 low-profile slot (also supports 2x rear 2.5-inch drive bays)
2x PCIe x16 low-profile slot (also supports 2x rear 7mm 2.5-inch drive bays)
For 2.5-inch front drive configurations, the server supports the installation of a CFF RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots.
Front: The server also supports slots at the front of the server:
1x PCIe x16 or x8 full-height half-length slot
1x PCIe x8 low-profile slot
1x OCP 3.0 slot (mutually exclusive with the OCP slot at the rear)
Note: Not all slots are available in a 1-processor configuration. See the I/O expansion for details.
GPU support Supports up to 3x single-wide GPUs
Ports
Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port.
Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Optional second RJ-45 1GbE systems management port for XCC remote management (installed in OCP adapter slot).
Internal: 1x USB 3.2 G1 connector for operating system or license key purposes
Cooling Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply.
Power supply Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input.
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Hot-swap parts Drives, power supplies, and fans.
Systems management Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Models with 8x 2.5-inch front drive bays can optionally support an Integrated Diagnostics Panel. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC), XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC Platinum to enable remote control functions and other features.
Security features Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-
LenovoPress - https://lenovopress.lenovo.com/lp1600-thinksystem-sr630-v3-server
ParametryPorovnání
Provedení (servery)
RACK
Rack provedení (servery)
1U
CPU (servery)
Intel Xeon 8Core
CPU patic (servery)
2
RAM slotů (servery)
32
RAM obsazeno (servery)
16 GB a více
HDD technologie (servery)
SAS/SATA/SSD
HDD formát (servery)
2,5"
HDD hot plug (servery)
Ano
Max. počet HDD (servery)
12
RAID řadič (servery)
RAID 0,1,10,5,50,6,60
Cache na řadiči (servery)
2 GB
Cache battery backup (servery)
Ano
Optická mechanika (servery)
Ne
FDD mechanika (servery)
Ne
5,25" slot (servery)
0
3,5" slot (servery)
0
PCI sloty (servery)
Ne
PCI-X sloty (servery)
Ne
PCI-e sloty (servery)
Ano
Ethernet (servery)
Optional
Vzdálená správa (servery)
Ano
Zdroj osazený (servery)
Ano
Zdroj hot plug (servery)
Ano
Pozice pro další zdroj (servery)
Ano
Výrobce (servery)
Lenovo
Operační systém (servery)
Ne
Lenovo ThinkSystem SR630v3 1x Silver 4509Y 8C 2.6GHz 125W/1x32GB/0GB 2,5"(8)/9350-8i(2GB f)/XCC2-P/1100WTitanium
