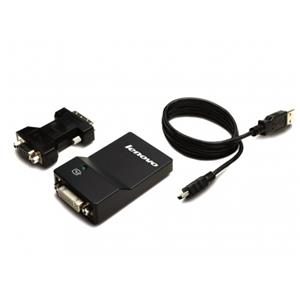

Lenovo kabel redukce USB 3.0 to DVI/VGA Monitor Adapter
Popis a parametry
Ke stažení
Lenovo kabel redukce USB 3.0 to DVI/VGA Monitor Adapter
Lenovo kabel redukce USB 3.0 to DVI/VGA Monitor Adapter
Features and specifications
The Lenovo USB 3.0 to DVI/VGA Monitor Adapter (0B47072) provides a quick and easy way to attach an analog or digital monitor to a ThinkPad or ThinkCentre USB port, helping to increase productivity through the use of multiple monitors.
The Lenovo USB 3.0 to DVI/VGA Monitor Adapter is ideal for increasing the efficiency of everyday tasks. View and extend spreadsheets across multiple monitors, or view financial charts simultaneously. Using multiple USB 3.0 to DVI/VGA Monitor Adapters reduces overlapping of windows when multitasking is required, and increases overall user experience and productivity.
Up to six monitors can be connected using up to six USB 3.0 to DVI/VGA Monitor adapters when connected to ThinkPad systems. Adapters coexist with existing system monitor ports and installed graphics cards.
Each adapter is uniquely configured, using a setup wizard, for:
•Display mode: Span (one large desktop), mirrored (clone mode) or
•extended desktop (stretch mode)
•Screen resolution: Up to 2048x1152
•Screen orientation: 0, 90, 180, or 270 degrees
•Monitor placement: Extend monitor to right, left, above, or below
Performance specifications
•Attach up to six adapters on one system
•Attach VGA analog or Digital DVI monitor, projector
•Plug and Play
•Hot plug; attach or detach monitor without system reboot
•Resumes from hibernation and suspend modes
•16, and 32-bit color depth supported at all monitor resolutions
•Primary display, extended "stretched" desktop and mirrored "clone" desktop modes
•Compatible with existing installed desktop video graphic cards
•Compatible with integrated graphics monitor ports: Analog VGA, Digitial DVI, and DisplayPort
•Each USB 3.0 to DVI/VGA Monitor adapter can be independently configured
•Images can be rotated 90, 180, and 270 degrees
•Attaches to notebook and desktop systems via USB3.0 or USB 2.0 bus-powered port
•700 mm detachable USB3.0 Standard-A to Micro- B cable ?USB3.0 Standard-A plug attaches to the notebook or desktop system
?Micro-B plug attaches to the USB3.0-to-DVI Monitor Adapter
•Digital DVI monitors attach to the DVI-I receptacle connector on the
•USB3.0-to-DVI Monitor Adapter
•Analog VGA monitor attaches to DVI-to-VGA adapter that is connected to the DVI-I receptacle connector on the USB3.0-to-DVI Monitor Adapter
•Maximum resolutions: Up to 2048x1152, includes HD resolution
Features and specifications
The Lenovo USB 3.0 to DVI/VGA Monitor Adapter (0B47072) provides a quick and easy way to attach an analog or digital monitor to a ThinkPad or ThinkCentre USB port, helping to increase productivity through the use of multiple monitors.
The Lenovo USB 3.0 to DVI/VGA Monitor Adapter is ideal for increasing the efficiency of everyday tasks. View and extend spreadsheets across multiple monitors, or view financial charts simultaneously. Using multiple USB 3.0 to DVI/VGA Monitor Adapters reduces overlapping of windows when multitasking is required, and increases overall user experience and productivity.
Up to six monitors can be connected using up to six USB 3.0 to DVI/VGA Monitor adapters when connected to ThinkPad systems. Adapters coexist with existing system monitor ports and installed graphics cards.
Each adapter is uniquely configured, using a setup wizard, for:
•Display mode: Span (one large desktop), mirrored (clone mode) or
•extended desktop (stretch mode)
•Screen resolution: Up to 2048x1152
•Screen orientation: 0, 90, 180, or 270 degrees
•Monitor placement: Extend monitor to right, left, above, or below
Performance specifications
•Attach up to six adapters on one system
•Attach VGA analog or Digital DVI monitor, projector
•Plug and Play
•Hot plug; attach or detach monitor without system reboot
•Resumes from hibernation and suspend modes
•16, and 32-bit color depth supported at all monitor resolutions
•Primary display, extended "stretched" desktop and mirrored "clone" desktop modes
•Compatible with existing installed desktop video graphic cards
•Compatible with integrated graphics monitor ports: Analog VGA, Digitial DVI, and DisplayPort
•Each USB 3.0 to DVI/VGA Monitor adapter can be independently configured
•Images can be rotated 90, 180, and 270 degrees
•Attaches to notebook and desktop systems via USB3.0 or USB 2.0 bus-powered port
•700 mm detachable USB3.0 Standard-A to Micro- B cable ?USB3.0 Standard-A plug attaches to the notebook or desktop system
?Micro-B plug attaches to the USB3.0-to-DVI Monitor Adapter
•Digital DVI monitors attach to the DVI-I receptacle connector on the
•USB3.0-to-DVI Monitor Adapter
•Analog VGA monitor attaches to DVI-to-VGA adapter that is connected to the DVI-I receptacle connector on the USB3.0-to-DVI Monitor Adapter
•Maximum resolutions: Up to 2048x1152, includes HD resolution
ParametryPorovnání
Konektor 1 (kabel)
USB-A
Konektor 2 (kabel)
DVI
Délka (kabel)
10cm - 50cm
Určení (kabel)
Redukce
Provedení konektoru (kabel)
Rovný
Barva (kabel)
Černá
Opletení (kabel)
Ne
Výrobce (kabel)
Lenovo
