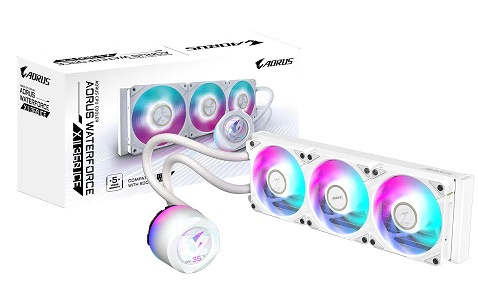

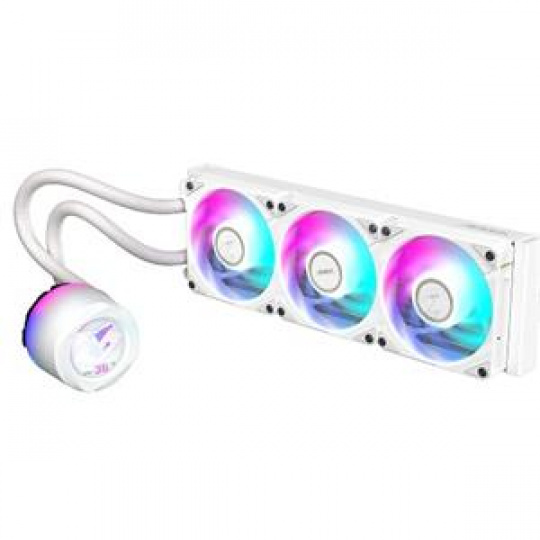

GIGABYTE vodní chladič AORUS WATERFORCE X II 360 ICE 120mm ARGB, LCD displej
Popis a parametry
Ke stažení
GIGABYTE vodní chladič AORUS WATERFORCE X II 360 ICE 120mm ARGB, LCD displej
AORUS WATERFORCE X II 360 ICE
Fan EZ-Chain Mag: DIY-friendly fan design with magnetic interlocking mechanism and DAISY-CHAIN.
LCD Edge View: Circular full-color LCD for video playback/custom text support.
New fan blade design increases both airflow and pressure, while reducing noise.
The water block and fan feature gradient lighting, and the ARGB fan lighting can be synchronized with other AORUS devices through GCC (GIGABYTE Control Center).
Universal design for fan and pump RPM control, compatible with all motherboard brands.
Where Effortless Meets Efficiency
The upgraded all-in-one liquid cooling system is here, injecting boundless power into your gaming experience and enjoy DIY-friendly Innovation features for easy, neat installations.
Say goodbye to time wasted on wiring connections
Fan EZ-Chain Mag incorporates a magnetic interlocking mechanism along with a DAISY-CHAIN setup, enabling the transmission of power and signals between fans, thereby saving a significant amount of time on wiring connections.
LCD Edge View
Customizable display options for monitoring clock frequencies, utilization, temperatures, fan rpm, and pump rpm.
|
5 modes with meticulously crafted default animations.
|
40MB of integrated storage capacity.
|
Personalize with your own text/GIF/JPEG/MP4 files to express your creativity.
|
Display orientation can be software-controlled for a 360-degree rotation.
Level Up Your Performance
with Turbocharged Cooling
Gear up for unmatched cooling power with boosted performance across the board - power, flow, pipes, and plate area, all fine-tuned for the ultimate heat-busting experience!

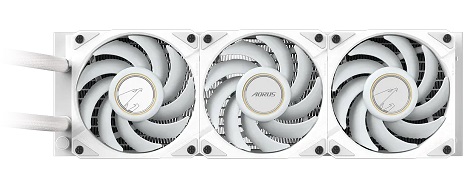

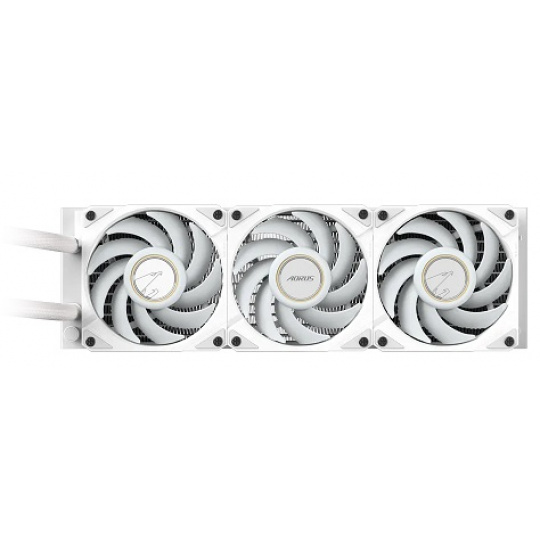

New Fan Blade Design
The new fan blade design has achieved a simultaneous increase in both airflow and pressure, along with a reduction in noise.
FDB bearing reduces noise while minimizing vibrations.
The rounded design at the top of the hub helps increase the overall proportion of airflow entering.
Reducing the size of the upper half of the fan blades to increase air volume.
Enlarging the lower half of the blades to enhance the fan's compression ability.
Serrated fan blade edges reduce noise, boost efficiency, minimize vibration, and improve airflow.

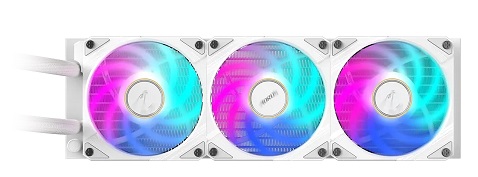

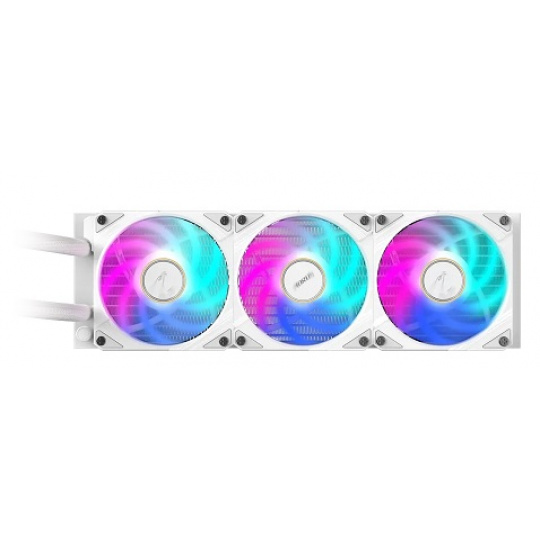

Bring the Light of Victory to the Battlefield
Create an exceptional gaming atmosphere with the seamless integration of chrome plating and dynamic LED lighting on the water block, along with the ability to adjust both the ARGB fan lighting and water block lighting together. This synchronization can be effortlessly achieved through GCC (GIGABYTE Control Center), providing a truly immersive gaming experience.
Specifikace
Radiátor a vodní blok
Dimensions : 394 x 119 x 27mm
Pump Dimension : 87.6 x 87.6 x 77.7mm
Radiator Material : Aluminum
Block Material : Copper
Procesorová patice
Intel 115x,1200,1700
AMD TR4, AM5, AM4, sTR5
LCD displej
60 x 60mm Full Color LCD
Pump
Speed : 2500~3000 RPM +/-10%
Ventilátor
Spec : 3 x 120mm ARGB Fans
Speed : 800~2400 RPM +/-10%
Bearing type : FDB
Air Flow : 72 CFM
Air Pressure : 3.15mmH20
Noise Level : 12~37.5 dBA
Software
GCC
Fan EZ-Chain Mag: DIY-friendly fan design with magnetic interlocking mechanism and DAISY-CHAIN.
LCD Edge View: Circular full-color LCD for video playback/custom text support.
New fan blade design increases both airflow and pressure, while reducing noise.
The water block and fan feature gradient lighting, and the ARGB fan lighting can be synchronized with other AORUS devices through GCC (GIGABYTE Control Center).
Universal design for fan and pump RPM control, compatible with all motherboard brands.
Where Effortless Meets Efficiency
The upgraded all-in-one liquid cooling system is here, injecting boundless power into your gaming experience and enjoy DIY-friendly Innovation features for easy, neat installations.
Say goodbye to time wasted on wiring connections
Fan EZ-Chain Mag incorporates a magnetic interlocking mechanism along with a DAISY-CHAIN setup, enabling the transmission of power and signals between fans, thereby saving a significant amount of time on wiring connections.
LCD Edge View
Customizable display options for monitoring clock frequencies, utilization, temperatures, fan rpm, and pump rpm.
|
5 modes with meticulously crafted default animations.
|
40MB of integrated storage capacity.
|
Personalize with your own text/GIF/JPEG/MP4 files to express your creativity.
|
Display orientation can be software-controlled for a 360-degree rotation.
Level Up Your Performance
with Turbocharged Cooling
Gear up for unmatched cooling power with boosted performance across the board - power, flow, pipes, and plate area, all fine-tuned for the ultimate heat-busting experience!
New Fan Blade Design
The new fan blade design has achieved a simultaneous increase in both airflow and pressure, along with a reduction in noise.
FDB bearing reduces noise while minimizing vibrations.
The rounded design at the top of the hub helps increase the overall proportion of airflow entering.
Reducing the size of the upper half of the fan blades to increase air volume.
Enlarging the lower half of the blades to enhance the fan's compression ability.
Serrated fan blade edges reduce noise, boost efficiency, minimize vibration, and improve airflow.
Bring the Light of Victory to the Battlefield
Create an exceptional gaming atmosphere with the seamless integration of chrome plating and dynamic LED lighting on the water block, along with the ability to adjust both the ARGB fan lighting and water block lighting together. This synchronization can be effortlessly achieved through GCC (GIGABYTE Control Center), providing a truly immersive gaming experience.
Specifikace
Radiátor a vodní blok
Dimensions : 394 x 119 x 27mm
Pump Dimension : 87.6 x 87.6 x 77.7mm
Radiator Material : Aluminum
Block Material : Copper
Procesorová patice
Intel 115x,1200,1700
AMD TR4, AM5, AM4, sTR5
LCD displej
60 x 60mm Full Color LCD
Pump
Speed : 2500~3000 RPM +/-10%
Ventilátor
Spec : 3 x 120mm ARGB Fans
Speed : 800~2400 RPM +/-10%
Bearing type : FDB
Air Flow : 72 CFM
Air Pressure : 3.15mmH20
Noise Level : 12~37.5 dBA
Software
GCC
