Klíčové vlastnosti

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 SUPER
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS

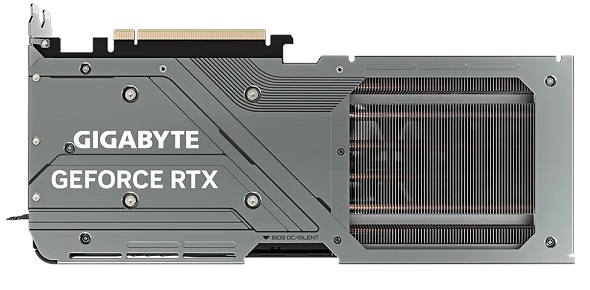

Protection metal back plate
4 Years Warranty (Online registration required)

WINDFORCE
COOLING SYSTEM

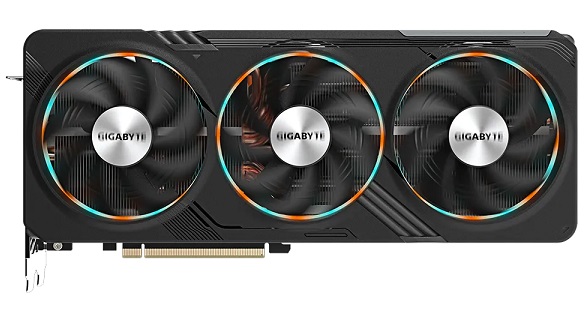

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifikace

Grafika
GeForce RTX™ 4070 SUPER

Takt jádra
2565 MHz (Reference card: 2475 MHz)

CUDA® jader
7168

Takt paměti
21 Gbps

Kapacita paměti
12 GB

Typ paměti
GDDR6X

Paměťová sběrnice
192 bit

Sběrnice karty
PCI-E 4.0

Maximální rozlišení digitálního výstupu
7680x4320

Monitorů současně
4

Velikost karty
L=300 W=130 H=57.6 mm

Formát PCB
ATX

DirectX
12 Ultimate

OpenGL
4.6

Doporučený výkon napájecího zdroje
700W

Napájecí konektory
16 pin*1

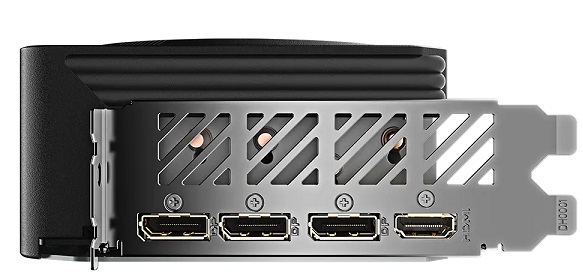

Výstup
DisplayPort 1.4a *3
HDMI 2.1a *1

Příslušenství
1. Quick guide
2. Warranty registration
3. One 16 pin two 8-pin power adaptor
