Klíčové vlastnosti

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 SUPER
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate

CORE CLOCK
2535 MHz (Reference card: 2475 MHz)

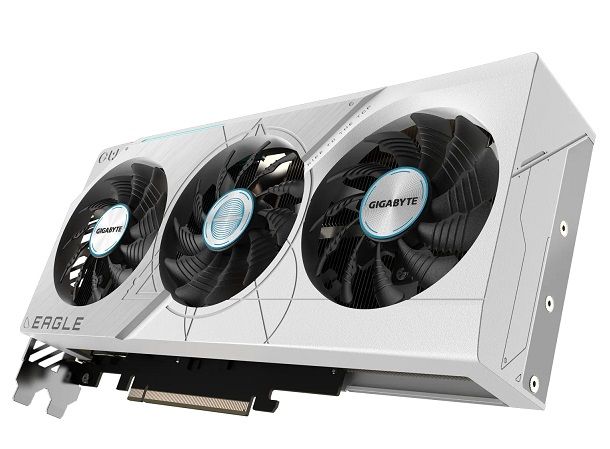

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

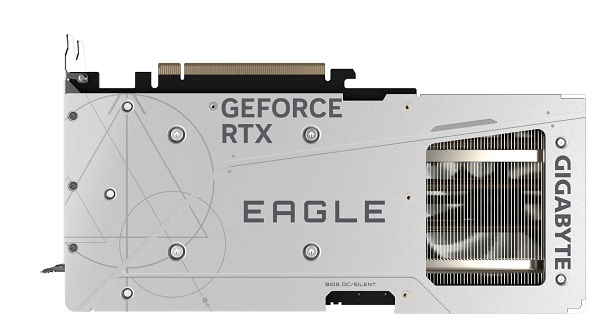

METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifikace

Grafika
GeForce RTX™ 4070 SUPER

Takt jádra
2535 MHz (Reference card: 2475 MHz)

CUDA® jader
7168

Takt paměti
21 Gbps

Kapacita paměti
12 GB

Typ paměti
GDDR6X

Paměťová sběrnice
192 bit

Sběrnice karty
PCI-E 4.0

Maximální rozlišení digitálního výstupu
7680x4320

Monitorů současně
4

Velikost karty
L=261 W=126 H=50 mm

Formát PCB
ATX

DirectX
12 Ultimate

OpenGL
4.6

Doporučený výkon napájecího zdroje
700W

Napájecí konektory
16 Pin*1

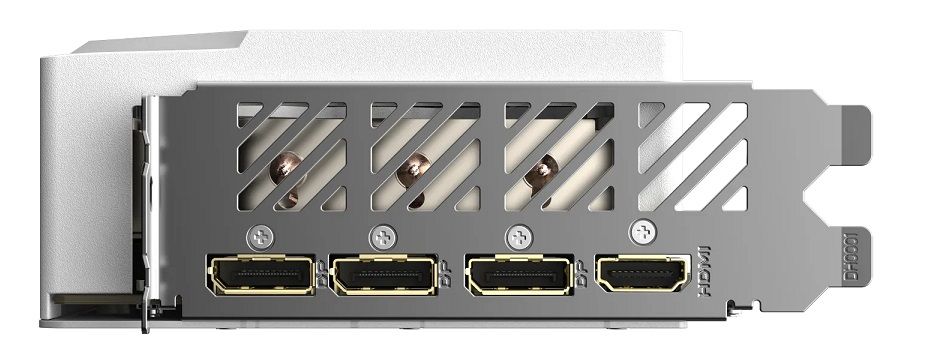

Výstup
DisplayPort 1.4a *3
HDMI 2.1a *1

Příslušenství
1. Quick guide
2. One 16 pin two 8-pin power adaptor
