Fujitsu PRIMERGY TX1330M5/SFF/500W PSU /ERP LOT9 CONF. 1/XEON E-2334/16GB DDR4/IRMCS6/TPM 2.0/SFF
Popis a parametry
Ke stažení
Fujitsu PRIMERGY TX1330M5/SFF/500W PSU /ERP LOT9 CONF. 1/XEON E-2334/16GB DDR4/IRMCS6/TPM 2.0/SFF
Návod na instalaci serveru:
https://www.youtube.com/watch?v=rFuttpcbviI
Proč si vybrat server PRIMERGY TX1330 M5?
• vysoce rozšiřitelný a robustní, navržený tak, aby splňoval klasické požadavky malých a středních podniků napříč odvětvími
• tichý s možností provozu při teplotě od 5 °C do 45 °C.
• nejnovější procesory řady Intel® Xeon® E-2300
• Titanium (96 %) redundantní napájecí zdroje
• vzdálená správa iRMC (integrated Remote Management Controller)
1x Intel® procesor s až 8-mi jádry
celkem 4 paměťové sloty podporující až 128 GB paměti s moduly DDR4 DIMM (@ 3 200 MT/s)
až 12x 3,5" nebo 24x 2,5" disky (HDD/SSD)
4x PCIe slot
iRMC (integrated Remote Management Controller) čip pro vzdálenou správu na základní desce

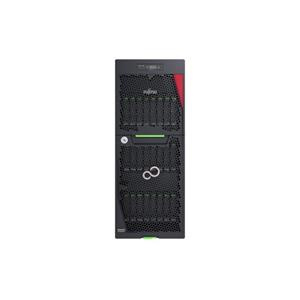

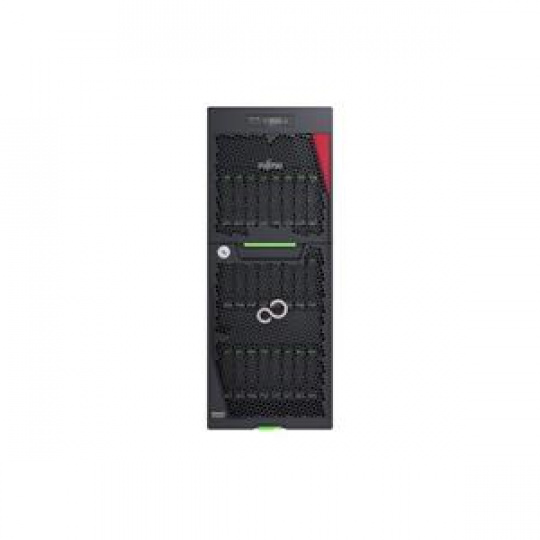

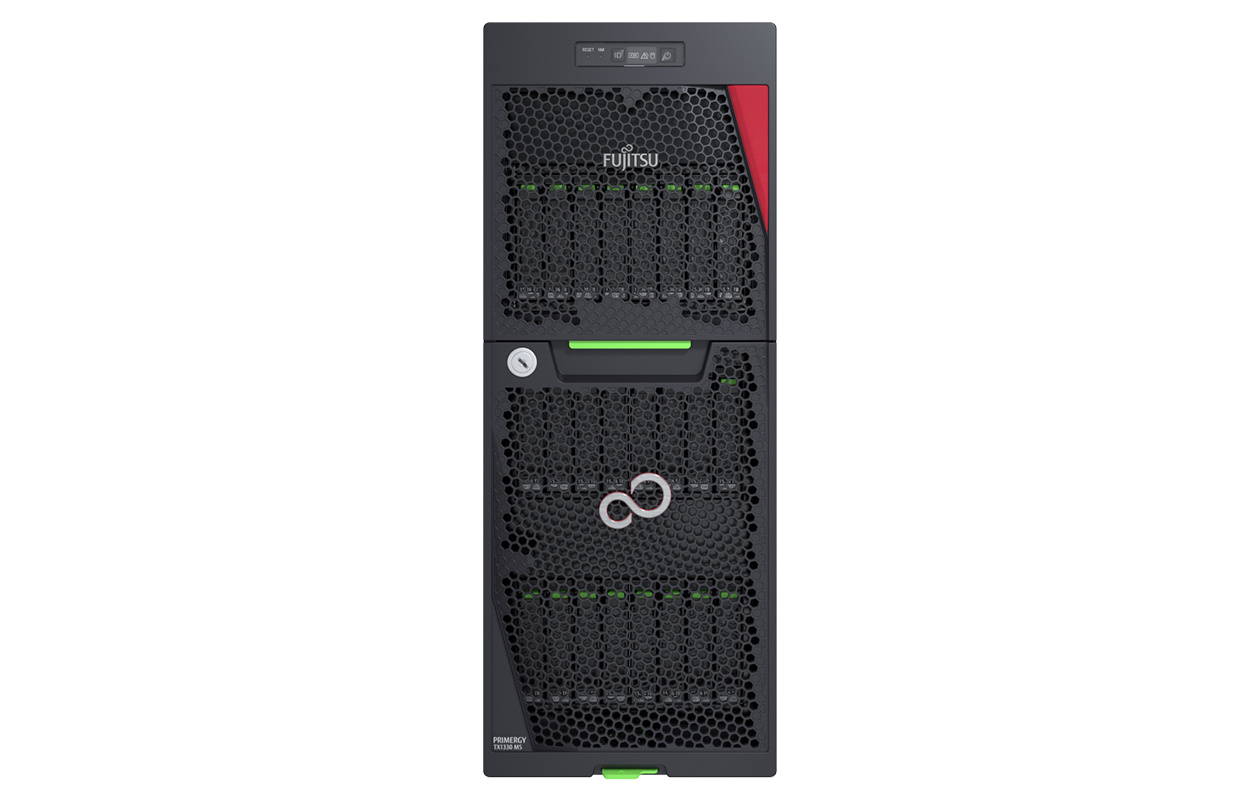

1-socket tower server Fujitsu PRIMERGY TX1330 M5
Parametry:
1x Intel Xeon E-2336, 6Core, 2,90 GHz
1x 16GB DDR4-3200 ECC paměťový modul
LAN karta 2x1Gbit Intel i210 onboard
Rozšíření vzdálené správy eLCM (embedded Lifecycle Management)
1x hot-plug napájecí zdroj 500W titanium (možnost přidat druhý zdroj pro redundanci)
8x pozice pro 2,5" disk
TPM 2.0 Modul
Záruka 1 rok onsite
Porty:
vzadu:
- 2x RJ45 LAN port
- 1x RJ45 LAN port pro vzdálenou správu iRMC
- 1x VGA
- 1x Display Port
- 2x USB 3.2 Type A
- 4x USB 2.0 Type A
vpředu:
- 1x USB 3.2 Type A
- 1x USB 3.2 Type C
interní:
- 2x USB 3.2
- 2x M.2 SATA
- SATA řadič pro SATA HDD nebo SSD, SW-RAID 0, 1, 10
Sloty:
- 4x paměťový slot
- 4x PCIe slot
https://www.youtube.com/watch?v=rFuttpcbviI
Proč si vybrat server PRIMERGY TX1330 M5?
• vysoce rozšiřitelný a robustní, navržený tak, aby splňoval klasické požadavky malých a středních podniků napříč odvětvími
• tichý s možností provozu při teplotě od 5 °C do 45 °C.
• nejnovější procesory řady Intel® Xeon® E-2300
• Titanium (96 %) redundantní napájecí zdroje
• vzdálená správa iRMC (integrated Remote Management Controller)
1x Intel® procesor s až 8-mi jádry
celkem 4 paměťové sloty podporující až 128 GB paměti s moduly DDR4 DIMM (@ 3 200 MT/s)
až 12x 3,5" nebo 24x 2,5" disky (HDD/SSD)
4x PCIe slot
iRMC (integrated Remote Management Controller) čip pro vzdálenou správu na základní desce
1-socket tower server Fujitsu PRIMERGY TX1330 M5
Parametry:
1x Intel Xeon E-2336, 6Core, 2,90 GHz
1x 16GB DDR4-3200 ECC paměťový modul
LAN karta 2x1Gbit Intel i210 onboard
Rozšíření vzdálené správy eLCM (embedded Lifecycle Management)
1x hot-plug napájecí zdroj 500W titanium (možnost přidat druhý zdroj pro redundanci)
8x pozice pro 2,5" disk
TPM 2.0 Modul
Záruka 1 rok onsite
Porty:
vzadu:
- 2x RJ45 LAN port
- 1x RJ45 LAN port pro vzdálenou správu iRMC
- 1x VGA
- 1x Display Port
- 2x USB 3.2 Type A
- 4x USB 2.0 Type A
vpředu:
- 1x USB 3.2 Type A
- 1x USB 3.2 Type C
interní:
- 2x USB 3.2
- 2x M.2 SATA
- SATA řadič pro SATA HDD nebo SSD, SW-RAID 0, 1, 10
Sloty:
- 4x paměťový slot
- 4x PCIe slot
ParametryPorovnání
Provedení (servery)
Tower
Rack provedení (servery)
Ne
CPU (servery)
Intel Xeon
CPU patic (servery)
1
RAM slotů (servery)
4
RAM obsazeno (servery)
16 GB a více
HDD technologie (servery)
SAS/SATA III
HDD formát (servery)
2,5"
HDD hot plug (servery)
Ne
Max. počet HDD (servery)
8
RAID řadič (servery)
RAID 0,1,10
Cache na řadiči (servery)
Ne
Cache battery backup (servery)
Ne
Optická mechanika (servery)
Ne
FDD mechanika (servery)
Ne
5,25" slot (servery)
0
PCI sloty (servery)
Ano
PCI-X sloty (servery)
Ano
PCI-e sloty (servery)
Ano
Ethernet (servery)
LAN
Vzdálená správa (servery)
Ano
Zdroj osazený (servery)
Ano
Zdroj hot plug (servery)
Ano
Pozice pro další zdroj (servery)
Ano
Výrobce (servery)
Fujitsu
Operační systém (servery)
Ne
Kód: PY-WCD05CA
Win Server CAL 2022 (5 Device)
Zadejte dotaz, upřesníme
5 810 Kč
Windows Server 2022 CAL 5 Device. Deliverable is 1 License Card document with a COA attached to it; the COA stays on the License Card. Ships separately from the server system as a loose delivery. May be sold at the same time as the base license or later to increase the number of Client Access Licenses for Devices for Windows Server 2022.
Kód: PY-WCU05CA
Win Server CAL 2022 (5 User)
Zadejte dotaz, upřesníme
7 630 Kč
Windows Server 2022 CAL 5 User. Deliverable is 1 License Card document with a COA attached to it; the COA stays on the License Card. Ships separately from the server system as a loose delivery. May be sold at the same time as the base license or later to increase the number of Client Access Licenses for Users for Windows Server 2022.
Kód: FSP:GB4J20Z00CZSV1
SP 4y OS (niS),9x5,NBD Rt
Zadejte dotaz, upřesníme
9 304 Kč
Support Pack 4 years On-Site Service (no immediate spares), 9x5, next business day onsite response, valid in selected countries in Europe, Africa and Middle-East
Kód: PY-SR4C63
Fujitsu PRAID EP640i FH/LP
Zadejte dotaz, upřesníme
52 706 Kč
- SAS/SATA RAID Controller based on LSI MegaRAID SAS3908 - for up to 8 internal SAS/SATA HDD, SSD - RAID Levels 0, 1, 10, 5, 50, 6, 60 - TFM already included - 4GB Cache - a later change to this controller or a downgrade to other RAID controller can require different SAS cable, (see system paper configurator, system manual). Orders ex f
Kód: PY-SR4C6
Fujitsu PRAID EP680i FH/LP
Zadejte dotaz, upřesníme
54 249 Kč
- SAS/SATA/PCIE-NVMe RAID Controller based on LSI MegaRAID SAS3916 - for up to 16 internal SAS/SATA HDD, SSD, for up to 4 times x4 PCIe-NVMe SSD - RAID Levels 0, 1, 10, 5, 50, 6, 60 - TFM already included - 8GB Cache -a later change to this controller or a downgrade to other RAID controller can require different SAS cable, (see system p
Kód: PY-ME16UG3
Fujitsu 16GB (1x16GB) 1Rx8 DDR4-3200 U ECC pro TX1330M5 RX1330M5 TX1320M5 TX1310M5 - otevřeno
E-shop 1 ks
5 757 Kč
OTEVŘENO 16 GB (1 module(s) 16 GB) DDR4, unbuffered, ECC, 3,200 MT/s, PC4-3200, DIMM, 1Rx8 - nekombinovat s 32GB 2Rx8
Kód: PY-MF96YN
Fujitsu SSD SATA 6G 960GB M.2 N H-P
Zadejte dotaz, upřesníme
14 781 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD M.2 SATA, 6 Gb/s, 960 GB, non hot plug, enterprise, 1.5 DWPD (Drive Writes Per Day for 5 years) M.2 SATA is designed for use as a boot drive with the Endurance Spec. above. 2x M.2 SATA for any Hypervisor by the onboard chipset
Kód: PY-SR4FA
Fujitsu PRAID CP600i FH/LP
Zadejte dotaz, upřesníme
23 122 Kč
PRAID CP600i FH/LP SAS/SATA RAID Controller based on Broadcom SAS3808 - for up to 8 internal SAS/SATA HDD, SSD - RAID Levels 0, 1, 10 - a later change to this controller or a downgrade to other RAID controller can require different SAS cable, - (see system paper configurator, system manual). Orders ex factory always come with the right ca
Kód: PY-SS19NMF
Fujitsu SSD SATA 6G 1.92TB Read-Int. 2.5' H-P EP
Zadejte dotaz, upřesníme
33 034 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD SATA, 6 Gb/s, 1.92 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.5 DWPD (Drive Writes Per Day for 5 years) SSD has a built-in Wear-Out indicator. In this case the warranty for such a component, as an exception to the
Kód: PY-SS38NMF
Fujitsu SSD SATA 6G 3.84TB Read-Int. 2.5' H-P EP
Zadejte dotaz, upřesníme
61 166 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD SATA, 6 Gb/s, 3.84 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.2 DWPD (Drive Writes Per Day for 5 years) SSD has a built-in Wear-Out indicator. In this case the warranty for such a component, as an exception to the
Kód: PY-PU505
Fujitsu Modular PSU 500W titanium hp low noise - TX1320 M6, TX1330 M6, TX2550
E-shop 4 ks
9 148 Kč
500W modular Power Supply Module , hot plug, titanium (96% efficiency) for tower servers. This 500W PSU comes with an adjusted firmware for optimized fan control and reduced acoustic noise. The fans are triggered later and slower, which helps improve the overall acoustic behaviour of the tower servers. The PSU is intended for tower server
Kód: PY-WCU01CA
Win Server CAL 2022 (1 User)
Zadejte dotaz, upřesníme
1 737 Kč
Windows Server 2022 CAL 1 User. Deliverable is 1 License Card document with a COA attached to it; the COA stays on the License Card. Ships separately from the server system as a loose delivery. May be sold at the same time as the base license or later to increase the number of Client Access Licenses for Users for Windows Server 2022.
Kód: PY-WCD01CA
Win Server CAL 2022 (1 Device)
Zadejte dotaz, upřesníme
1 287 Kč
Windows Server 2022 CAL 1 Device. Deliverable is 1 License Card document with a COA attached to it; the COA stays on the License Card. Ships separately from the server system as a loose delivery. May be sold at the same time as the base license or later to increase the number of Client Access Licenses for Devices for Windows Server 2022.
Kód: PY-SS48NKQ
SSD SATA 6G 480GB Mixed-Use 2.5' H-P EP
E-shop 1 ks
10 333 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD SATA, 6 Gb/s, 480 GB, Mixed-Use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years) SSD has a built-in Wear-Out indicator. In this case the warranty for such a component, as an exception to the system
Kód: PY-SR3FB
PRAID CP500i FH/LP
E-shop 1 ks
20 031 Kč
Description SAS/SATA RAID Controller based on Broadcom SAS3408 - for up to 8 internal SAS/SATA HDD, SSD - RAID Levels 0, 1, 10, 5, 50 - a later change to this controller or a downgrade to other RAID controller can require different SAS cable, (see system paper configurator, system manual or ask PRIMERGY-PM). Orders ex factory always c
Kód: PY-WBB5RA
Windows Server 2022 Essentials 10 CORE ROK, pouze HW FTS
E-shop 3 ks
11 858 Kč
Reseller Option Kit; for Fujitsu Broadline Distributors with a valid ROK Amendment only. COA must be affixed to qualifying PRIMERY servers before delivery. WinSrv 2022 Essentials. ROK. Multilingual: English, German, Spanish, French, Italian, Japanese, Korean, and traditional Chinese. DVD Media. COA sticker. TX1310 M5, TX1320 M5, TX1330
Kód: PY-SS24NMD
Fujitsu SSD SATA 6G 240GB Read-Int. 2.5' H-P EP
E-shop 2 ks
8 857 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.0 DWPD (Drive Writes Per Day for 5 years)
Kód: PY-SS48NMD
SSD SATA 6G 480GB Read-Int. 2.5' H-P EP pro TX1330M5 RX1330M5 TX1320M5 RX2530M7 RX2540M7 + RX2530M5
E-shop 3 ks
9 595 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD SATA, 6 Gb/s, 480 GB, Mixed-Use, hot-plug, 2.5-inch, enterprise, 3.0 DWPD (Drive Writes Per Day for 5 years)
Kód: PY-ME32UG2
32GB (1x32GB) 2Rx8 DDR4-3200 U ECC pro TX1310 M5
Zadejte dotaz, upřesníme
10 794 Kč
32 GB (1 module(s) 32 GB) DDR4, unbuffered, ECC, 3,200 MT/s, PC4-3200, DIMM, 2Rx8 - nelze pro model s 16GB 1Rx8
Kód: PY-PU503
Modular PSU 500W platinum hp
Zadejte dotaz, upřesníme
9 148 Kč
Fujitsu Modular PSU 500W titanium hp
Kód: S26361-F4042-L502
PRAID EP520i FH/LP RAID Ctrl SAS, NVMe 2GB (D3850-E100) RAID Level 0/1/5/6/10/50/60, opt FBU
Zadejte dotaz, upřesníme
34 717 Kč
- SAS/SATA/PCIE-NVMe RAID Controller based on LSI MegaRAID SAS3516 - for up to 8 internal SAS/SATA HDD, SSD, for up to 2 times x4 PCIe-NVMe SSD or 4 times x2 PCIe NVMe SSD (if available) - RAID Levels 0, 1, 10, 5, 50, 6, 60 - TFM already included - 2GB Cache -a later change to this controller or a downgrade to other RAID controller can r
Kód: PY-WCD10CA
Win Server CAL 2022 (10 Device)
Zadejte dotaz, upřesníme
11 082 Kč
Windows Server 2022 CAL 10 Device. Deliverable is 1 License Card document with a COA attached to it; the COA stays on the License Card. Ships separately from the server system as a loose delivery. May be sold at the same time as the base license or later to increase the number of Client Access Licenses for Devices for Windows Server 2022.
Kód: PY-SS48NMF
SSD SATA 6G 480GB Read-Int. 2.5' H-P EP pro TX1320M5,TX1330M5,RX1330M5,TX1320M6,TX1330M6,RX1330M6,TX2550M7,RX2530M7,RX25
E-shop 2 ks
10 648 Kč
TX1320 M5, TX1330 M5, RX1330 M5, TX1320 M6, TX1330 M6, RX1330 M6, TX2550 M7, RX2530 M7, RX2540 M7, RX1140 M2 SSD SATA, 6 Gb/s, 480 GB, Mixed-Use, hot-plug, 2.5-inch, enterprise, 3.0 DWPD (Drive Writes Per Day for 5 years)
