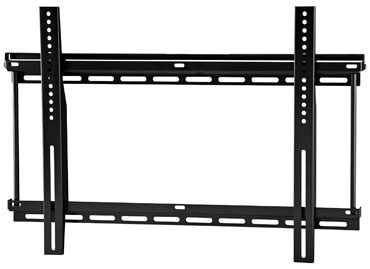

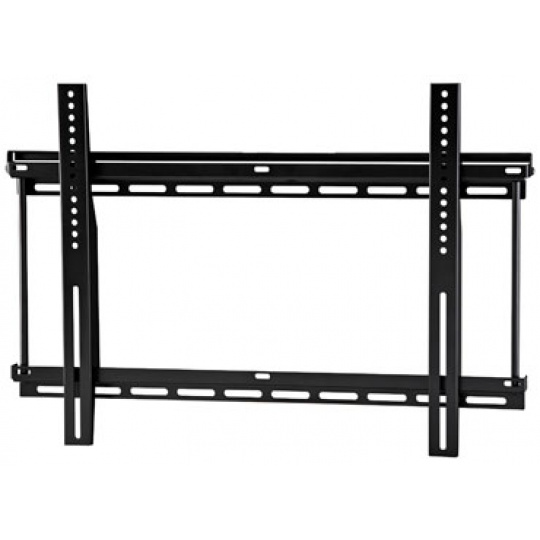

ERGOTRON Neo-Flex® Fixed Wall Mount, UHD, nástěnný držák pro 37"-63" display, nosnost 79kg
Popis a parametry
Ke stažení
ERGOTRON Neo-Flex® Fixed Wall Mount, UHD, nástěnný držák pro 37"-63" display, nosnost 79kg
ERGOTRON Neo-Flex® Fixed Wall Mount, UHD, nástěnný držák pro 37"-63" display, nosnost 79kg
Benefits
Low 1.7" (44 mm) mounting profile
Universal rails for greater panel compatibility
Lift n’ Lock™ allows you to easily attach your flat panel to the mount
Sliding lateral on-wall adjustment
Open architecture provides easy access to in-wall wiring
Locking bar secures panel to mount
Simple to install and use
Includes complete hardware kit
Part Number: 60-614
Description: Neo-Flex Wall Mount, UHD, Ultra Heavy Duty (black)
Includes wall plate, two (2) fixed rails, locking bar, installation and attachment hardware
* Universal Monitor Attachment: Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 600 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.)
Horizontal hole pattern of 800 mm wide can be accommodated with addition of NF VESA Adaptor accessory (97-590), sold separately
Profile off the wall = 1.7" (44 mm)
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full compliance with RoHS directive is in progress
Shipping Dimensions: 14.4" x 33.9" x 3.2" (365 x 860 x 81 mm)
Shipping Weight: 16.4 lbs (7.4 kg)
Benefits
Low 1.7" (44 mm) mounting profile
Universal rails for greater panel compatibility
Lift n’ Lock™ allows you to easily attach your flat panel to the mount
Sliding lateral on-wall adjustment
Open architecture provides easy access to in-wall wiring
Locking bar secures panel to mount
Simple to install and use
Includes complete hardware kit
Part Number: 60-614
Description: Neo-Flex Wall Mount, UHD, Ultra Heavy Duty (black)
Includes wall plate, two (2) fixed rails, locking bar, installation and attachment hardware
* Universal Monitor Attachment: Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 600 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.)
Horizontal hole pattern of 800 mm wide can be accommodated with addition of NF VESA Adaptor accessory (97-590), sold separately
Profile off the wall = 1.7" (44 mm)
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full compliance with RoHS directive is in progress
Shipping Dimensions: 14.4" x 33.9" x 3.2" (365 x 860 x 81 mm)
Shipping Weight: 16.4 lbs (7.4 kg)
