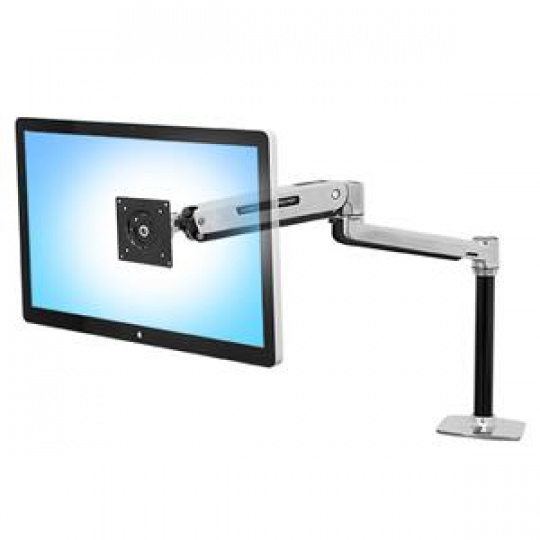

ERGOTRON LX Sit Stand, Desk Mount LCD Arm, Polished, stolní rameno max. 43" obrazovka
ERGOTRON LX Sit Stand, Desk Mount LCD Arm, Polished, stolní rameno max. 43" obrazovka
This versatile arm can be used in a variety of applications: attach a smaller monitor for use within a sit-stand workstation or position a large display up to 25 lbs (11.3 kg) wherever you want it.
The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture—features 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side adjustment.
20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
Extends LCD up to 33" (84 cm); push your display out of the way when not in use
Increase viewing comfort—help reduce eye, back and neck strain
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Patented CF motion technology provides premium ease-of-use adjustment
Cable management clips on the under side of the arm route and hide cords
Ideal for space-constrained spaces—folds to within 4.5" (12 cm) of back of desk in storage position
Secure installation—locking connections between arm, extension and base
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Part Number: 45-360-026
Description: LX Sit-Stand Desk Mount LCD Arm (polished aluminum)
Includes LX sit-stand arm, extension, desk clamp base, grommet-mount base, 42 cm pole, VESA brackets
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
* Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
† Monitor tilts 70° up and 5° down
‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Cable management clips on the under side of the arm route and hide cords
To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused
NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight: 19.5 lbs (8.9 kg)
Shipping Dimensions: 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight: 22 lbs (10 kg)
This versatile arm can be used in a variety of applications: attach a smaller monitor for use within a sit-stand workstation or position a large display up to 25 lbs (11.3 kg) wherever you want it.
The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture—features 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side adjustment.
20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
Extends LCD up to 33" (84 cm); push your display out of the way when not in use
Increase viewing comfort—help reduce eye, back and neck strain
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Patented CF motion technology provides premium ease-of-use adjustment
Cable management clips on the under side of the arm route and hide cords
Ideal for space-constrained spaces—folds to within 4.5" (12 cm) of back of desk in storage position
Secure installation—locking connections between arm, extension and base
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Part Number: 45-360-026
Description: LX Sit-Stand Desk Mount LCD Arm (polished aluminum)
Includes LX sit-stand arm, extension, desk clamp base, grommet-mount base, 42 cm pole, VESA brackets
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
* Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
† Monitor tilts 70° up and 5° down
‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Cable management clips on the under side of the arm route and hide cords
To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused
NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight: 19.5 lbs (8.9 kg)
Shipping Dimensions: 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight: 22 lbs (10 kg)
