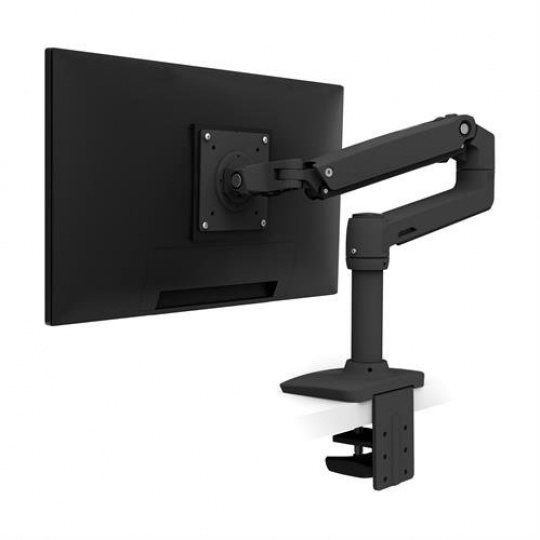

ERGOTRON LX Desk Monitor Arm (matte black) , stolní rameno až pro 34" obr. černé
Popis a parametry
Ke stažení
ERGOTRON LX Desk Monitor Arm (matte black) , stolní rameno až pro 34" obr. černé
ERGOTRON LX Desk Monitor Arm (matte black) , stolní rameno až pro 34" obr. černé
Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Monitor Arm. Place your screen where you need it with patented Constant Force™ Technology, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.???
UPC: 698833073829
Part Number (color):
45-241-224 (matte black)
Description: LX Desk Mount LCD Monitor Arm
Includes arm, extension, base, 2-piece clamp, grommet mount, 7" pole, attachment hardware
Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Patented Constant Force™ motion technology provides premium ease-of-use display adjustment
Improved LX Arm Features & Benefits
Aluminum construction offers greater durability and enhanced aesthetics
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Snap-fit cap secures interface of arm to extension for greater stability
Cable management feature routes cables under the arm, out of the way
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
* Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Note: If installed on WorkFit-T or WorkFit-TL, maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment
† Tilt Range: 70° backward, 5° forward
This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick
Grommet Mount attaches through surface hole .31" to 2" (8 to 50 mm) wide and up to 2.25" (57 mm) thick. NOTE: grommet mount not included with white model of arm, 45-490-216
Product Weight: 7.8 lbs (3.6 kg)
Shipping Dimensions: 22.2" x 9.9" x 5.6" (56 x 25 x 14 cm)
Shipping Weight: 9.75 lbs (4.4 kg)
Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Monitor Arm. Place your screen where you need it with patented Constant Force™ Technology, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.???
UPC: 698833073829
Part Number (color):
45-241-224 (matte black)
Description: LX Desk Mount LCD Monitor Arm
Includes arm, extension, base, 2-piece clamp, grommet mount, 7" pole, attachment hardware
Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Patented Constant Force™ motion technology provides premium ease-of-use display adjustment
Improved LX Arm Features & Benefits
Aluminum construction offers greater durability and enhanced aesthetics
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Snap-fit cap secures interface of arm to extension for greater stability
Cable management feature routes cables under the arm, out of the way
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
* Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Note: If installed on WorkFit-T or WorkFit-TL, maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment
† Tilt Range: 70° backward, 5° forward
This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick
Grommet Mount attaches through surface hole .31" to 2" (8 to 50 mm) wide and up to 2.25" (57 mm) thick. NOTE: grommet mount not included with white model of arm, 45-490-216
Product Weight: 7.8 lbs (3.6 kg)
Shipping Dimensions: 22.2" x 9.9" x 5.6" (56 x 25 x 14 cm)
Shipping Weight: 9.75 lbs (4.4 kg)
