ERGOTRON HX Desk Monitor Arm with VHD Pivot, stolní rameno pro hluboce zakřivené monitory (1000R), bílé
ERGOTRON HX Desk Monitor Arm with VHD Pivot, stolní rameno pro hluboce zakřivené monitory (1000R), bílé
Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57” Odyssey G9 Gaming Monitor.
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.
pro extrémně zakřivené monitory jako Samsung® 57” Odyssey G9 Gaming Monitor
Velikost displaye až 57"
Nosnost: 13.0–17.0 kg
Part Number: 45-693-216
Product Weight: 8.1 kg
Shipping Weight: 10.3 kg
Shipping Dimensions: 13.5" x 20.7" x 7.8" (34.2 x 52.5 x 19.8 cm)
Description: HX Desk Monitor Arm with VHD Pivot
Includes arm, extension, VHD pivot, desk clamp, grommet mount, mounting hardware
Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate
§ Suitable for monitors weighing 28.7–37.5 lbs (13–17 kg) with a depth of 9.1"–13.8” (23–35 cm) without stand
Note that the standard HX Arm and the HX Arm with HD Pivot cannot be upgraded with a VHD Pivot. When required because of a monitor's weight and depth, the complete HX Arm with VHD Pivot must be ordered
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
‡ Screen rotates 10° left or right to enable leveling
Streamlined cable management routes cables under arm and within extension
Desk clamp attaches to surface edge 0.4" to 2.6" (1.0 to 6.6 cm) thick
Grommet mount attaches through surface holes
* Monitor can be turned 360° at connection point of arm and extension; turning is restricted to 180° at connection point of extension and base
† Tilt Range: 20° backward, 5° forward
Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)

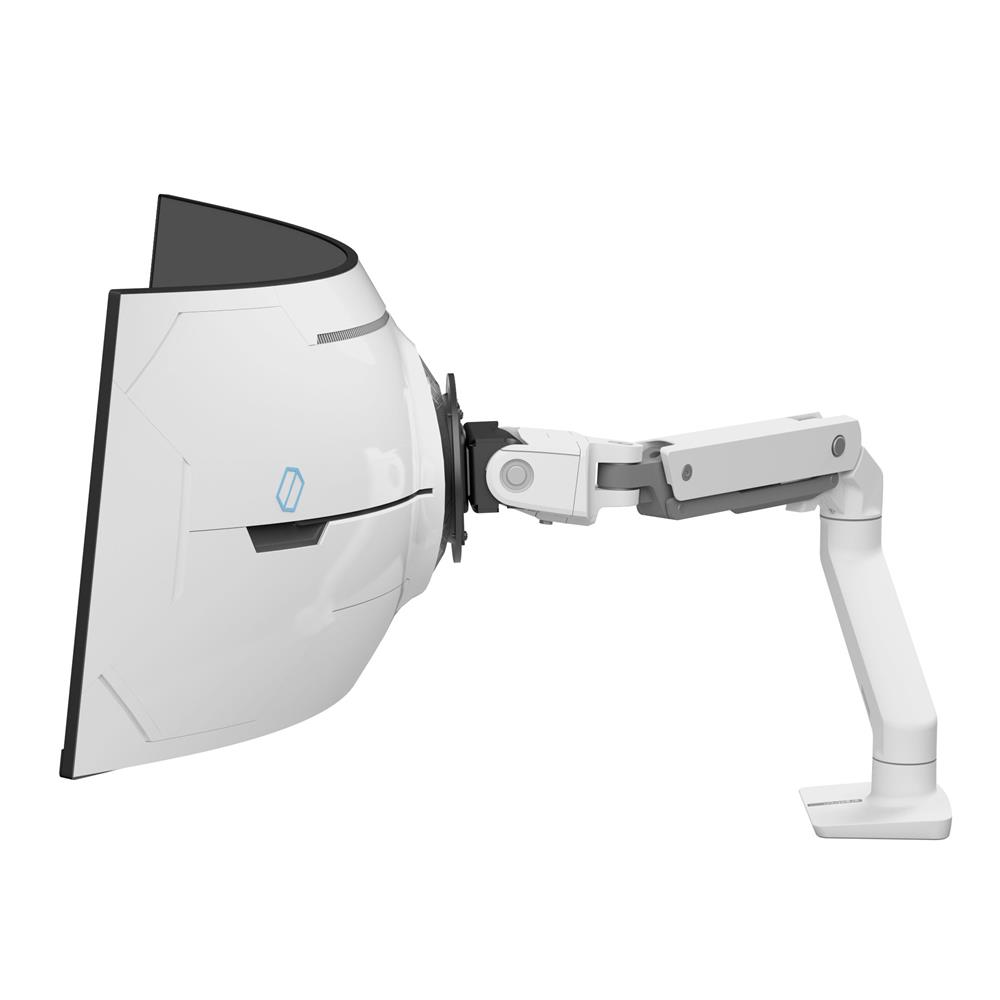

Monitor shown is the Samsung Odyssey G9. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57” Odyssey G9 Gaming Monitor.
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.
pro extrémně zakřivené monitory jako Samsung® 57” Odyssey G9 Gaming Monitor
Velikost displaye až 57"
Nosnost: 13.0–17.0 kg
Part Number: 45-693-216
Product Weight: 8.1 kg
Shipping Weight: 10.3 kg
Shipping Dimensions: 13.5" x 20.7" x 7.8" (34.2 x 52.5 x 19.8 cm)
Description: HX Desk Monitor Arm with VHD Pivot
Includes arm, extension, VHD pivot, desk clamp, grommet mount, mounting hardware
Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate
§ Suitable for monitors weighing 28.7–37.5 lbs (13–17 kg) with a depth of 9.1"–13.8” (23–35 cm) without stand
Note that the standard HX Arm and the HX Arm with HD Pivot cannot be upgraded with a VHD Pivot. When required because of a monitor's weight and depth, the complete HX Arm with VHD Pivot must be ordered
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
‡ Screen rotates 10° left or right to enable leveling
Streamlined cable management routes cables under arm and within extension
Desk clamp attaches to surface edge 0.4" to 2.6" (1.0 to 6.6 cm) thick
Grommet mount attaches through surface holes
* Monitor can be turned 360° at connection point of arm and extension; turning is restricted to 180° at connection point of extension and base
† Tilt Range: 20° backward, 5° forward
Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Monitor shown is the Samsung Odyssey G9. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
