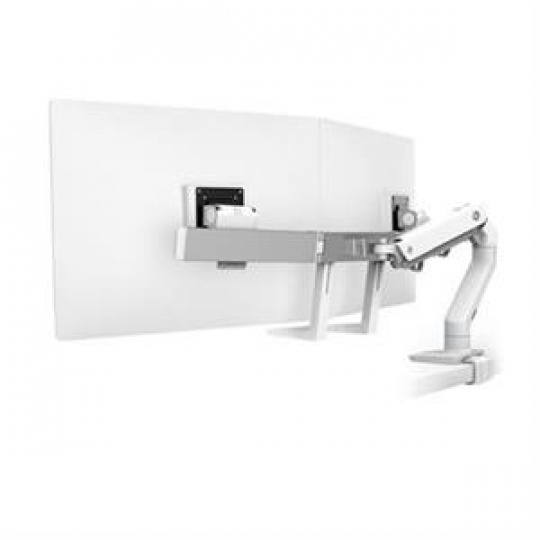

ERGOTRON HX Desk Dual Monitor Arm with Under Mount C-Clamp, stolní rameno pro 2 monitory s madlem, max. 32"

The HX Dual Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. This model includes an under mount c-clamp, which features a cleaner look and requires less space for attachment under the edge of the desk’s surface.

The sleek new post design combined with the dual hinge bow works with two 32" monitors and includes a handle for easy positioning. Extension/retraction motion and integrated height adjustment capability promote user comfort.

Part Number: 45-521-216 (white)
Description: HX Desk Dual Monitor Arm with Under Mount C-Clamp
Includes arm, under mount c-clamp, monitor attachment hardware
Arm folds back over the base into a compact retracted position; Perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Portrait/landscape rotation with lockout
Streamline cable management that routes cables under arm and within extension
Under Mount C-Clamp Benefits:
One piece formed structural steel
Set back 0.8" (2 cm) to allow panel dividers to nest behind arm base
Clamp attaches to surface edge 0.5" to 1.26" (1.2–3.2 cm) thick
Made for tight installations: C-Clamp protrudes only 0.8" (2 cm)—or 1.4" (3.5 cm) for desks thinner than 1" (2.5 cm)—from bottom of worksurface
Installation requires 1.2" (3 cm) from edge of desktop to back wall in order to slide clamp on from rear; alternatively, clamp can slide on from the side if open
‡ Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
* Weight Capacity: Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
Hinge bow pivots 40° inward and 90° outward
† Tilt Range: 70° backward, 5° forward;
Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
Product Weight: 22.7 lbs (10.3 kg)
Shipping Dimensions: 18.7" x 16.1" x 7.9" (47.5 x 40.9 x 20.1 cm )
Shipping Weight 26.3 lbs (11.8 kg)
