ERGOTRON CareFit™ Enclosure (snow white), uzamykatelný systém na stěnu, mon.(aio) kláv. myš
ERGOTRON CareFit™ Enclosure (snow white), uzamykatelný systém na stěnu, mon.(aio) kláv. myš

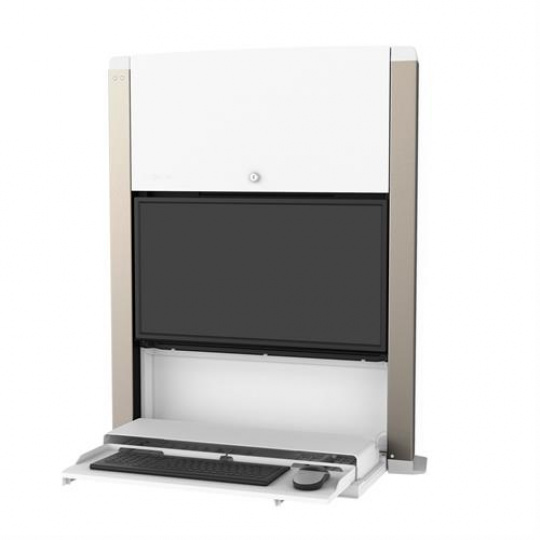

Caregivers can work comfortably while saving space in crowded patient rooms or hallways with this low-profile, wall-mount workstation. The ergonomic design offers 20" (51 cm) of height adjustment to work sitting or standing. Data entry complete? It folds when not in use to open up more space for the best patient care. Cable management keeps cords organized and easy to clean, and interchangeable laminate options enhance your healthcare designs.
Part Number (color):
61-367-060 (matte black)
61-367-030 (snow white)
Description: CareFit Enclosure
Includes enclosure, wrist rest, cable management hardware, installation template, installation hardware, keys
Finish can be customized with application of woodgrain laminates. See accessories for options (not available in all regions)
† Listed weight capacity represents total load. This includes: thin client holder = 3–8 lbs (1.4–3.6 kg); monitor bracket = 7–12 lbs (3.2–5.7 kg); keyboard tray = 0.5–3 lbs (0.2–1.4 kg)
* Maximum monitor physical dimensions: 25.8"W x 14.5"H x 2.5"D (65.5 x 36.8 x 6.4 cm). Monitor depth greater than 2.5" (6.4 cm) is allowable, however screen will protrude beyond profile of enclosure
Maximum thin client physical dimensions: 10.7"W x 10.5"H x 2.8"D (27.2 x 26.7 x 7.1 cm)
Maximum keyboard physical dimensions: 24.2"W x 1.5"H x 8.3"D (61.5 x 3.8 x 21.1 cm)
Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Patented Constant Force™ motion technology
Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Cable wrap included for better cable management
Note: Designed for thin clients. Product is not intended for CPU’s and hard drives
Product Weight: 73.8 lbs (33.5 kg)
Shipping Dimensions: 45.3" x 37.5" x 8.2" (115 x 95 x 21 cm)
Shipping Weight: 77.2 lbs (35 kg)
Caregivers can work comfortably while saving space in crowded patient rooms or hallways with this low-profile, wall-mount workstation. The ergonomic design offers 20" (51 cm) of height adjustment to work sitting or standing. Data entry complete? It folds when not in use to open up more space for the best patient care. Cable management keeps cords organized and easy to clean, and interchangeable laminate options enhance your healthcare designs.
Part Number (color):
61-367-060 (matte black)
61-367-030 (snow white)
Description: CareFit Enclosure
Includes enclosure, wrist rest, cable management hardware, installation template, installation hardware, keys
Finish can be customized with application of woodgrain laminates. See accessories for options (not available in all regions)
† Listed weight capacity represents total load. This includes: thin client holder = 3–8 lbs (1.4–3.6 kg); monitor bracket = 7–12 lbs (3.2–5.7 kg); keyboard tray = 0.5–3 lbs (0.2–1.4 kg)
* Maximum monitor physical dimensions: 25.8"W x 14.5"H x 2.5"D (65.5 x 36.8 x 6.4 cm). Monitor depth greater than 2.5" (6.4 cm) is allowable, however screen will protrude beyond profile of enclosure
Maximum thin client physical dimensions: 10.7"W x 10.5"H x 2.8"D (27.2 x 26.7 x 7.1 cm)
Maximum keyboard physical dimensions: 24.2"W x 1.5"H x 8.3"D (61.5 x 3.8 x 21.1 cm)
Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Patented Constant Force™ motion technology
Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Cable wrap included for better cable management
Note: Designed for thin clients. Product is not intended for CPU’s and hard drives
Product Weight: 73.8 lbs (33.5 kg)
Shipping Dimensions: 45.3" x 37.5" x 8.2" (115 x 95 x 21 cm)
Shipping Weight: 77.2 lbs (35 kg)
