Ergotron CareFit™ Combo System bílý, nástěnný držák LCD, klávesnice+ myš
Ergotron CareFit™ Combo System bílý, nástěnný držák LCD, klávesnice+ myš

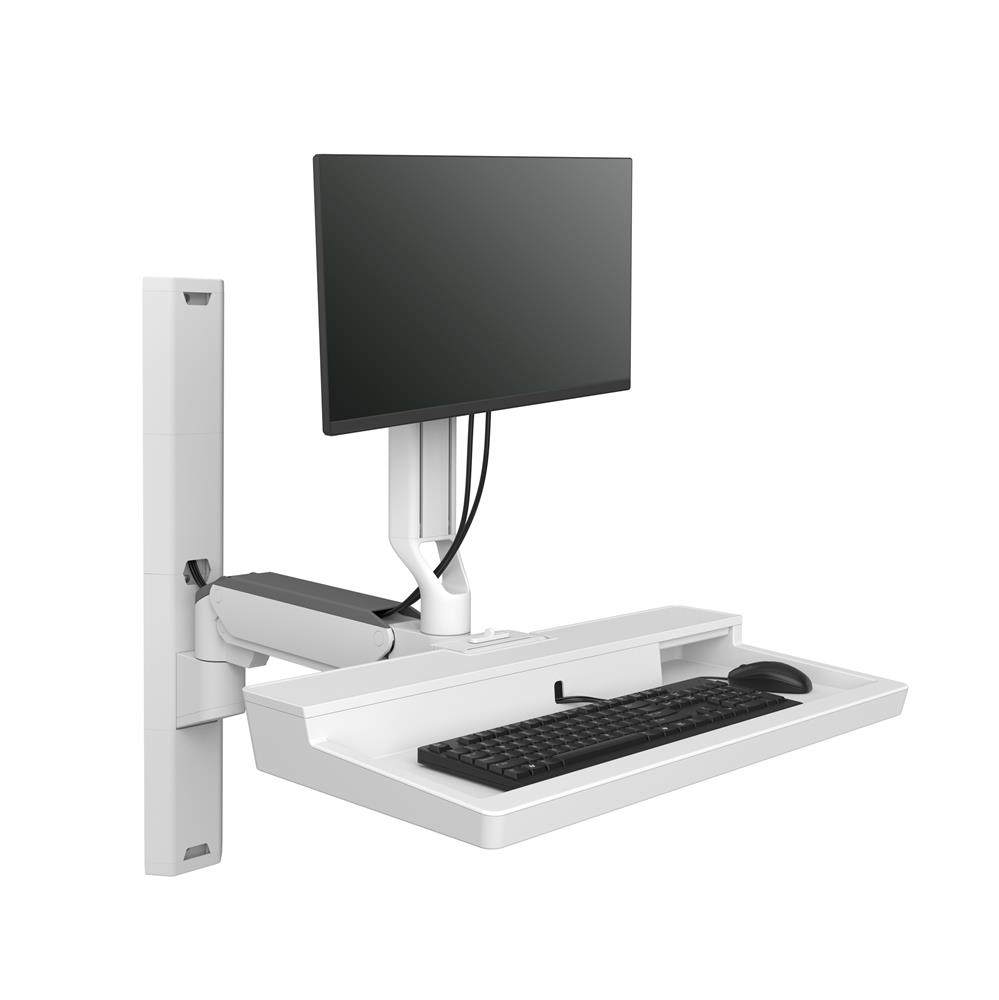

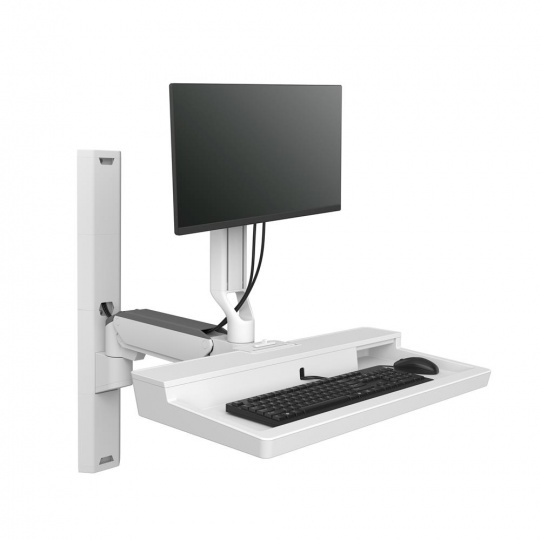

The modular CareFit Combo wall mount with covered Wall Track mounting system supports nurse-patient connections, caregiver comfort and uptime by enabling efficient documentation at the point of care. It’s easy to reposition and store, offers an area for supplies or a full worksurface, and enhances healing spaces with clean lines and hidden cables.
Part Number: 45-618-251
Product Weight: 21.7 kg
Shipping Weight: 26.8 kg
Description: CareFit Combo System
Includes combo arm, keyboard tray, wall mount base, track mount adapter, 34" wall track, track mount bracket, wall track covers, cable ties, mounting hardware
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 8–22 lbs (3.6–10 kg); keyboard and mouse = 1.5 lbs (0.7 kg)
‡ Lift Range: monitor and keyboard adjust 20" (51 cm) in tandem with single-motion; monitor adjusts 5" (13 cm) independently; maximum monitor height adjustment = 25" (64 cm)
† Pan Range: Arm can turn 180° at two points for 360° total side to side motion; monitor can also turn 180° independently
** Tilt Range: monitor tilts 20° up / 5° down; keyboard tilts 90° up for space-saving storage
Folds to within 9" (23 cm) of wall in stowed position
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
To increase extension range, also order the CareFit Extender accessory, 98-547-251
Shipping Dimensions: 37.1" x 22.1" x 11.1" (94 x 56 x 28 cm)
The modular CareFit Combo wall mount with covered Wall Track mounting system supports nurse-patient connections, caregiver comfort and uptime by enabling efficient documentation at the point of care. It’s easy to reposition and store, offers an area for supplies or a full worksurface, and enhances healing spaces with clean lines and hidden cables.
Part Number: 45-618-251
Product Weight: 21.7 kg
Shipping Weight: 26.8 kg
Description: CareFit Combo System
Includes combo arm, keyboard tray, wall mount base, track mount adapter, 34" wall track, track mount bracket, wall track covers, cable ties, mounting hardware
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 8–22 lbs (3.6–10 kg); keyboard and mouse = 1.5 lbs (0.7 kg)
‡ Lift Range: monitor and keyboard adjust 20" (51 cm) in tandem with single-motion; monitor adjusts 5" (13 cm) independently; maximum monitor height adjustment = 25" (64 cm)
† Pan Range: Arm can turn 180° at two points for 360° total side to side motion; monitor can also turn 180° independently
** Tilt Range: monitor tilts 20° up / 5° down; keyboard tilts 90° up for space-saving storage
Folds to within 9" (23 cm) of wall in stowed position
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
To increase extension range, also order the CareFit Extender accessory, 98-547-251
Shipping Dimensions: 37.1" x 22.1" x 11.1" (94 x 56 x 28 cm)
