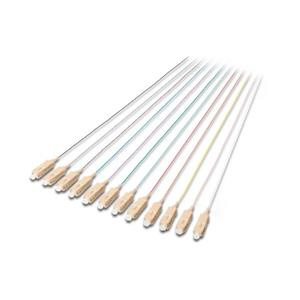

Digitus SC Fiber Pigtail , Loose Buffer, 50/125 µ 12 Pcs., Color code DIN IEC 304 Length 2m, Class OM2
Popis a parametry
Ke stažení
Digitus SC Fiber Pigtail , Loose Buffer, 50/125 µ 12 Pcs., Color code DIN IEC 304 Length 2m, Class OM2
DIGITUS SC Fiber Pigtail , Loose Buffer, 50/125 µ 12 Pcs., Color code DIN IEC 304 Length 2m, Class OM2
The DIGITUS® Fiber Optic Colored Pigtails are available as LC Simplex, SC Simplex and ST Simplex version and offer
with the classes OS2, OM2, OM3 and OM4 best performance and link quality for your network. The connector conforms
acc. IEC 61754-4 2002 and is equipped with a Zirconia ceramic ferrule. The colored buffers are color coded according to
IEC 304 (white, violet, turquoise, black, red, pink, orange, gray, green, yellow, brown, blue).
l Standard connector acc. IEC 61754-4 2002
l Operating temperature: -25 °C ... +80 °C
l Storage temperature: -20 °C ... +65 °C
l Insertion loss MM PC: max. 0.4 dB
l Return loss MM PC: > 25 dB
l Zirconia ceramic ferrule
l Simplex OM2 50/125 µ 2 m
l Secondary coating dimensions: O 0.9 ± 0.1 mm
l Primary coating: Acrylate; O 250 ± 15 µm
l Semi-tight buffer
l Colored buffer, according to IEC 304 in the colors white, violet, turquoise, black, red, pink, orange, grey, green,
yellow, brown, blue
l 12 pcs in package
The DIGITUS® Fiber Optic Colored Pigtails are available as LC Simplex, SC Simplex and ST Simplex version and offer
with the classes OS2, OM2, OM3 and OM4 best performance and link quality for your network. The connector conforms
acc. IEC 61754-4 2002 and is equipped with a Zirconia ceramic ferrule. The colored buffers are color coded according to
IEC 304 (white, violet, turquoise, black, red, pink, orange, gray, green, yellow, brown, blue).
l Standard connector acc. IEC 61754-4 2002
l Operating temperature: -25 °C ... +80 °C
l Storage temperature: -20 °C ... +65 °C
l Insertion loss MM PC: max. 0.4 dB
l Return loss MM PC: > 25 dB
l Zirconia ceramic ferrule
l Simplex OM2 50/125 µ 2 m
l Secondary coating dimensions: O 0.9 ± 0.1 mm
l Primary coating: Acrylate; O 250 ± 15 µm
l Semi-tight buffer
l Colored buffer, according to IEC 304 in the colors white, violet, turquoise, black, red, pink, orange, grey, green,
yellow, brown, blue
l 12 pcs in package
ParametryPorovnání
Návod
Jiný
Konektor 1 (kabel)
SC
Konektor 2 (kabel)
SC
Délka (kabel)
1,1m - 2m
Určení (kabel)
Propojovací
Provedení konektoru (kabel)
Rovný
Barva (kabel)
Kombinace barev
Opletení (kabel)
Ne
Výrobce (kabel)
Digitus
Digitus SC Fiber Pigtail , Loose Buffer, 50/125 µ 12 Pcs., Color code DIN IEC 304 Length 2m, Class OM2
