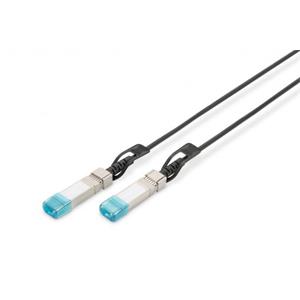

DIGITUS SFP+ 10G DAC Cable 1m AWG 30, HP HPE compatible

Description
SFP+ 10G 1m DAC cable


Extend your copper connections


SFP+ 10G 1m DAC cable
AWG 30 Twinax cable
1.0625-10.52Gbps supported data rate

The Digitus® SFP+ 10G DAC cables are the ideal connection between switches in the backbone area. The SFP+ 10G DAC cables support the following data rates and applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,6,7,8, OBSAI RP3 x 2, RP3 x 4, RP x 8. The SFP+ 10G DAC cables are compatible with Hewlett Packard (HP) H3C.

Technical details
AWG 30 Twinax cable
1 m maximum distance
1.0625-10.52Gbps supported data rate
Supported applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,
Compatible brands: Hewlett Packard (HP) HPE compatible
DDM / DOM support
Temperature range: 0 ~ 70 °C
Ports: SFP +
Power: + 3.3V supply voltage
Power consumption: 0.5W
Transceiver type: DAC


Package content
SFP+ 10G 1m DAC cable
Quick start guide
