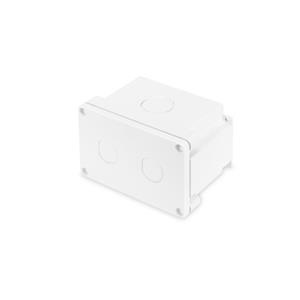

DIGITUS Professional IP67 surface mounting box
IP67 surface mounting box, color white polycarbonate resin UL94V-0 thermoplastic, punch-out holes M16 and M32
Description
IP67 surface mounting box, color white polycarbonate resin UL94V-0 thermoplastic, punch-out holes M16 and M32
High-quality surface mounting box for industry solution
Surface mount
Protection type: IP67
Housing according to UL94V-0
The surface mountbox is apply for securing data connections in industrial sector. That guarantees a flameprofed housing with polycarbonate as well as a rubber seal on the cover. Pre-punched holes according to M13 and M25 standard make the installation easier. Montage materials ror assembling and closing the surface mountbox are included.
Technical Details
Area of application: Outdoor section, industrial sector
Norms: IEC 60529:2001-02
General properties:
Housing: Polycarbonate UL94V-0 thermoplastic
Operating temperature range: -10 °C up to +60 °C
Storage temperature range: -40 °C up to + 68 °C
Humidity: 10%~90% RH
Inclusive mounting srews
5x knockout holes for M16 and M25 couplers
Description
IP67 surface mounting box, color white polycarbonate resin UL94V-0 thermoplastic, punch-out holes M16 and M32
High-quality surface mounting box for industry solution
Surface mount
Protection type: IP67
Housing according to UL94V-0
The surface mountbox is apply for securing data connections in industrial sector. That guarantees a flameprofed housing with polycarbonate as well as a rubber seal on the cover. Pre-punched holes according to M13 and M25 standard make the installation easier. Montage materials ror assembling and closing the surface mountbox are included.
Technical Details
Area of application: Outdoor section, industrial sector
Norms: IEC 60529:2001-02
General properties:
Housing: Polycarbonate UL94V-0 thermoplastic
Operating temperature range: -10 °C up to +60 °C
Storage temperature range: -40 °C up to + 68 °C
Humidity: 10%~90% RH
Inclusive mounting srews
5x knockout holes for M16 and M25 couplers
