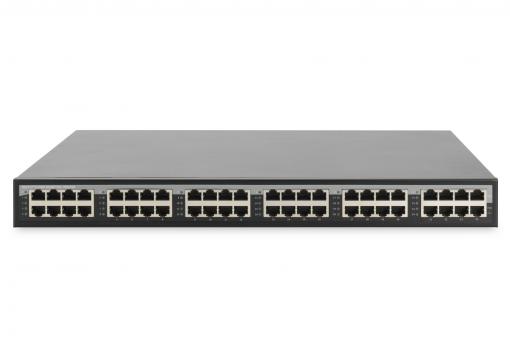

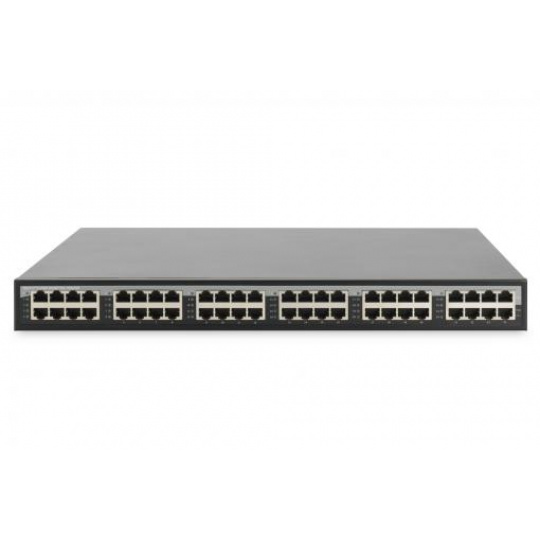

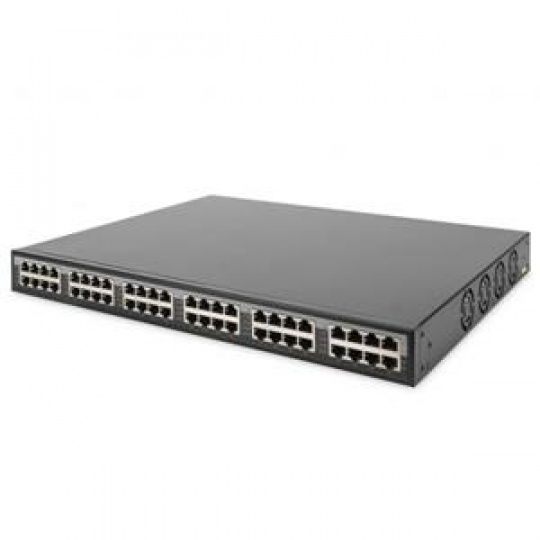

DIGITUS 24-Port Gigabit PoE+ Injector 24 ports data in, 24 ports data out+PoE 370W power support

Description
24 port gigabit PoE+ injector


Minimization of the cabling costs for PoE-capable devices


24 gigabit ports with PoE+ support
370 watt performance with up to 30 watts per port
Compatible with the IEEE802.3af and IEEE802.3at standards
Automatic surge protection

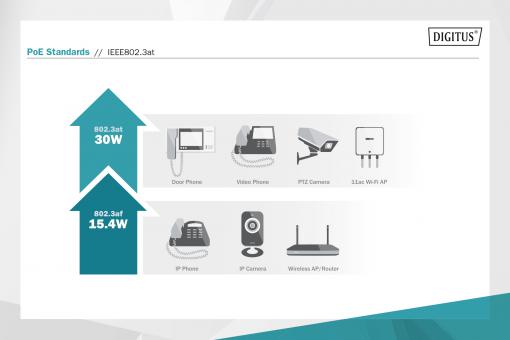

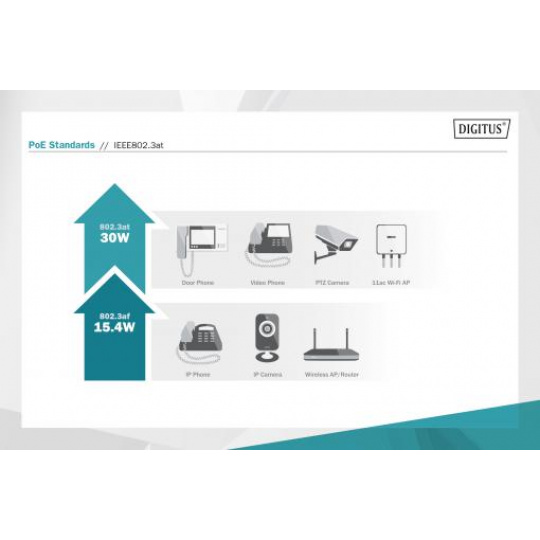

The DIGITUS® DN-95117 is an 24 port gigabit PoE+ mid-span hub (PoE injector). It offers 24 input ports for data and 24 output ports which make data and PoE available. Each PoE-port supports connected devices in accordance with the IEEE802.3af and IEEE802.3at PoE standard with 15.4 watts and/or 30 watts, such as PoE access points, PoE IP-telephones or PoE IP cameras, for example. The switch makes available a maximum budget of 370 watts for all ports and maximum budget of 30 watts per port.

Technical details
48 x 10/100/1000Mbps (24 x input data, 24 x output data+PoE)
Compatible with the IEEE802.3af and IEEE802.3at standards
PoE power supply via PIN 1.2(V-) and PIN 3.6(V+)
Maximum total output of 370 watts
Compatible with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
Automatic cable recognition - Auto-MDI-/ MDI-X function
Auto recognition of full and half duplex
Power supply: 100V AC ~ 240V AC
Operating temperature range: -10 °C to +45 °C
Storage temperature: -20°C - 70°C
Dimensions (mm): 440(L) x 345(W) x 45(H)
MTBF: 100,000 hours


Package content
24 port gigabit PoE+ injector
Quick start guide
Power Cord cable
Mounting accessories
