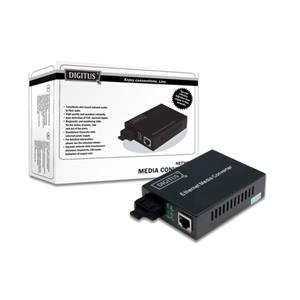

DIGITUS Media Converter, Multimode, 10/100/1000Base-T to 1000Base-SX, Incl. PSU SC connector, Up to 0.5km
Popis a parametry
Ke stažení
DIGITUS Media Converter, Multimode, 10/100/1000Base-T to 1000Base-SX, Incl. PSU SC connector, Up to 0.5km
Optický konvertor 1000Base-T na 1000 Base SX s konektorem SC, lze použít samostatně nebo je možné přikoupit rackové šasi.
DIGITUS Media Converter - The perfect converter solution for various fiber media
•Transforms wire based network media to fiber optic
•High quality and excellent reliability
•10/100/1000Base-TX to 1000Base-SX
•Connectors: 1x RJ45, 1x SC Duplex
•Distance up to 0.5km
•Wavelength: 850nm
•Multimode Dual Fiber
•Automatic Cable detection - Auto MDI / MDI-X function
•Auto-Negotiation of Full- and half-duplex
•Diagnostic and monitoring LEDs for the status of power, link and act of the ports
•Suitable for 8.3/125µm, 8.7/125µm, 9/125µm or 10/125µm Fiber Cables
•Transmission Power: Minimum -17 dBm, Maximum -12 dBm
•Sensitivity Receiving Power: Minimum -20 dBm
•Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
•2MB Data Buffer
•Operating Temperature: 0 to 60°C
•Dimensions (L x W x H): 95mm x 70mm x 26mm
•Weight: 200g
•Standalone Converter with external power supply
•Input Supply Voltage: 5V DC
Výrobek je dodáván s manuálem pouze v anglickém jazyce.
Package Content
Media Converter
Quick Installation Guide
Power Adapter
DIGITUS Media Converter - The perfect converter solution for various fiber media
•Transforms wire based network media to fiber optic
•High quality and excellent reliability
•10/100/1000Base-TX to 1000Base-SX
•Connectors: 1x RJ45, 1x SC Duplex
•Distance up to 0.5km
•Wavelength: 850nm
•Multimode Dual Fiber
•Automatic Cable detection - Auto MDI / MDI-X function
•Auto-Negotiation of Full- and half-duplex
•Diagnostic and monitoring LEDs for the status of power, link and act of the ports
•Suitable for 8.3/125µm, 8.7/125µm, 9/125µm or 10/125µm Fiber Cables
•Transmission Power: Minimum -17 dBm, Maximum -12 dBm
•Sensitivity Receiving Power: Minimum -20 dBm
•Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
•2MB Data Buffer
•Operating Temperature: 0 to 60°C
•Dimensions (L x W x H): 95mm x 70mm x 26mm
•Weight: 200g
•Standalone Converter with external power supply
•Input Supply Voltage: 5V DC
Výrobek je dodáván s manuálem pouze v anglickém jazyce.
Package Content
Media Converter
Quick Installation Guide
Power Adapter
