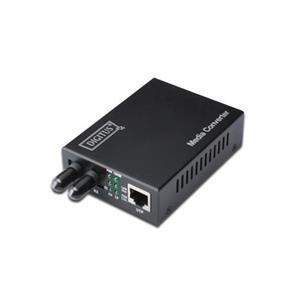

Digitus Media Converter 10/100/1000Base-T to 1000Base-SX (ST) + zdroj 0,5 KM
Optický konvertor 1000Base-T na 1000 Base SX s konektorem ST, lze použít samostatně nebo je možné přikoupit rackové šasi.
The perfect converter solution for various fiber media
•Transforms wire based network media to fiber optic
•High quality and excellent reliability
•10/100/1000Base-TX to 1000Base-SX
•Connectors: 1x RJ45, 1x ST Duplex
•Distance up to 0.5km
•Wavelength: 850nm
•Multimode Dual Fiber
•Automatic Cable detection - Auto MDI / MDI-X function
•Auto-Negotiation of Full- and half-duplex
•Diagnostic and monitoring LEDs for the status of power, link and act of the ports
•Suitable for 8.3/125µm, 8.7/125µm, 9/125µm or 10/125µm Fiber Cables
•Transmission Power: Minimum -17 dBm, Maximum -12 dBm
•Sensitivity Receiving Power: Minimum -20 dBm
•Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
•2MB Data Buffer
•Operating Temperature: 0 to 60°C
•Dimensions (L x W x H): 95mm x 70mm x 26mm
•Weight: 200g
•Standalone Converter with external power supply
•Input Supply Voltage: 5V DC
Výrobek je dodáván s manuálem pouze v anglickém jazyce.
