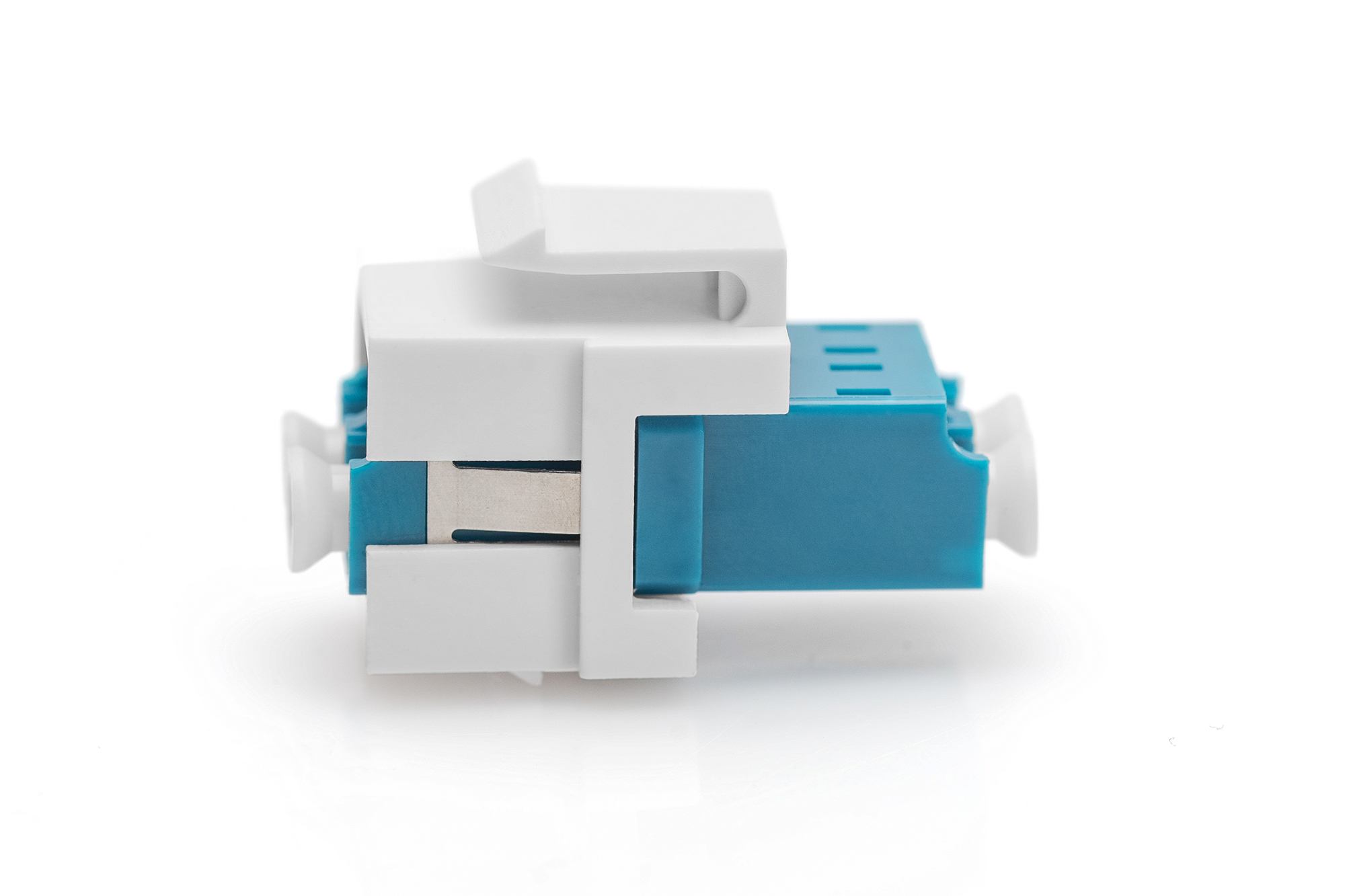

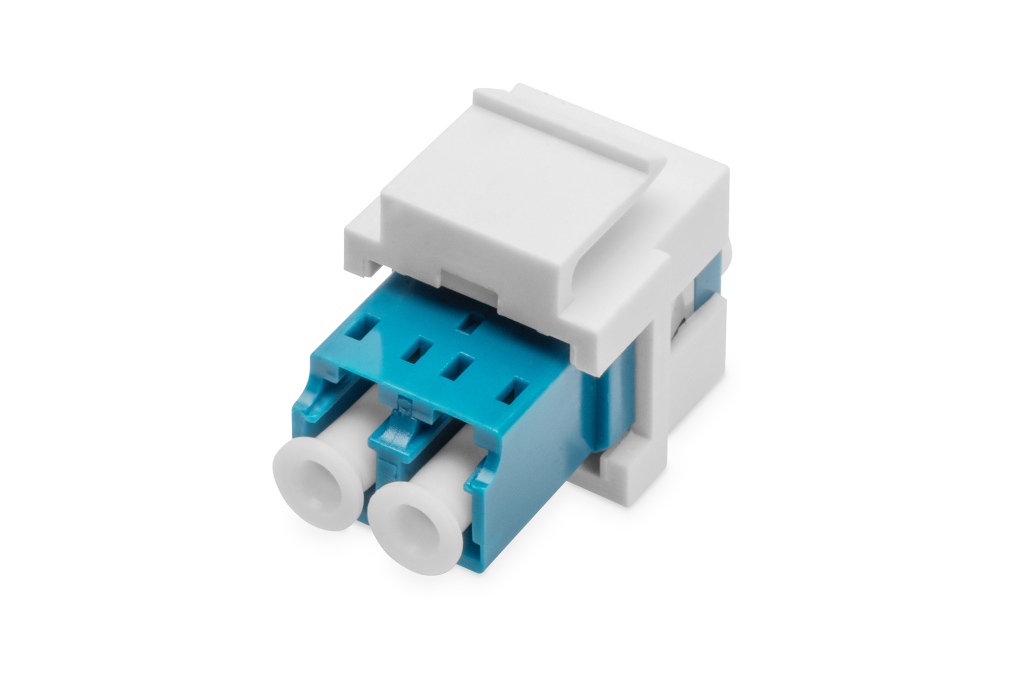

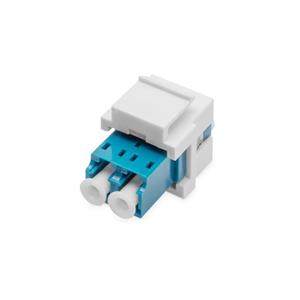

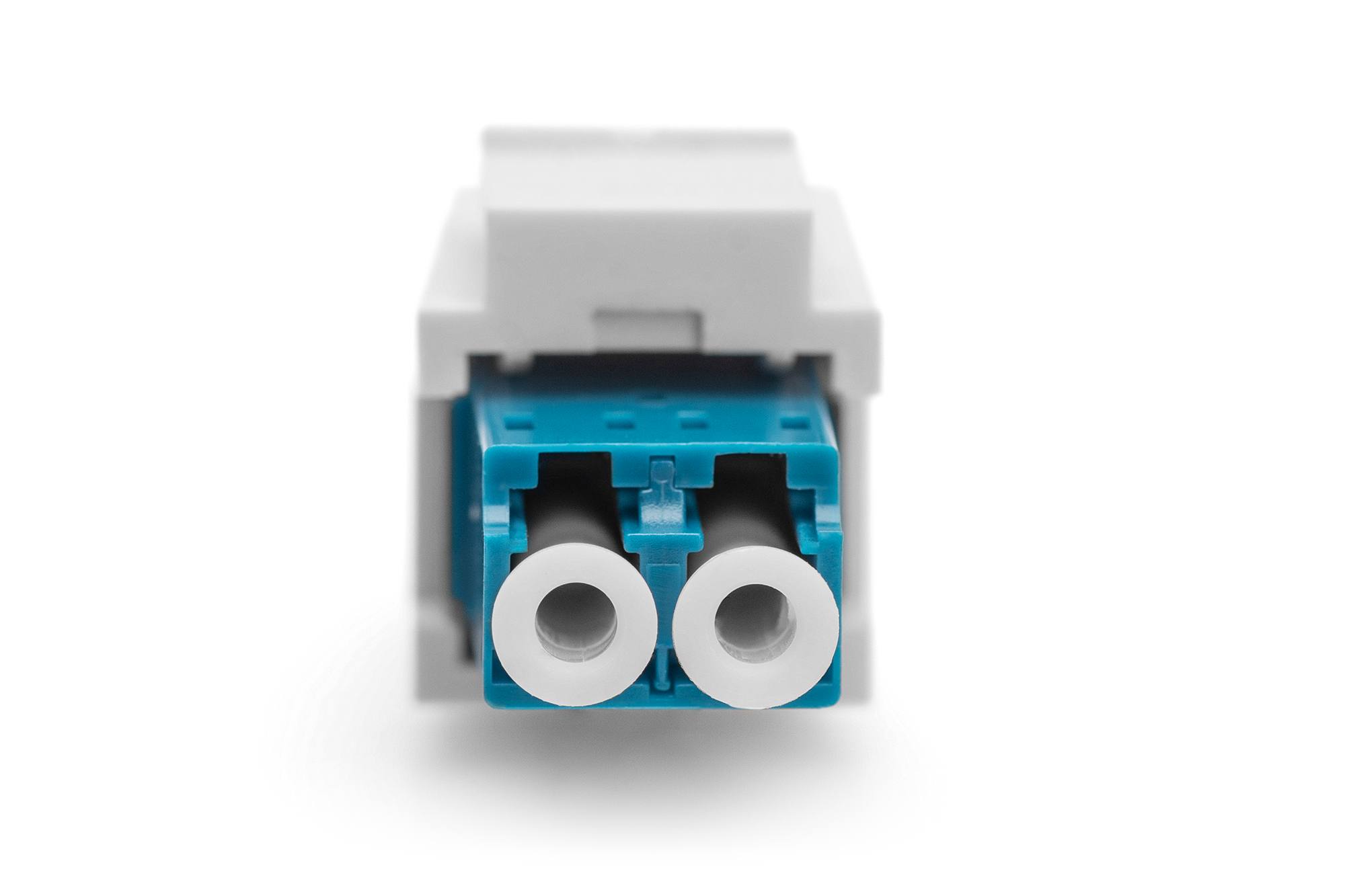

DIGITUS Fiber optic LC/LC duplex coupler, Singlemode, Keystone module
Popis a parametry
Ke stažení
DIGITUS Fiber optic LC/LC duplex coupler, Singlemode, Keystone module

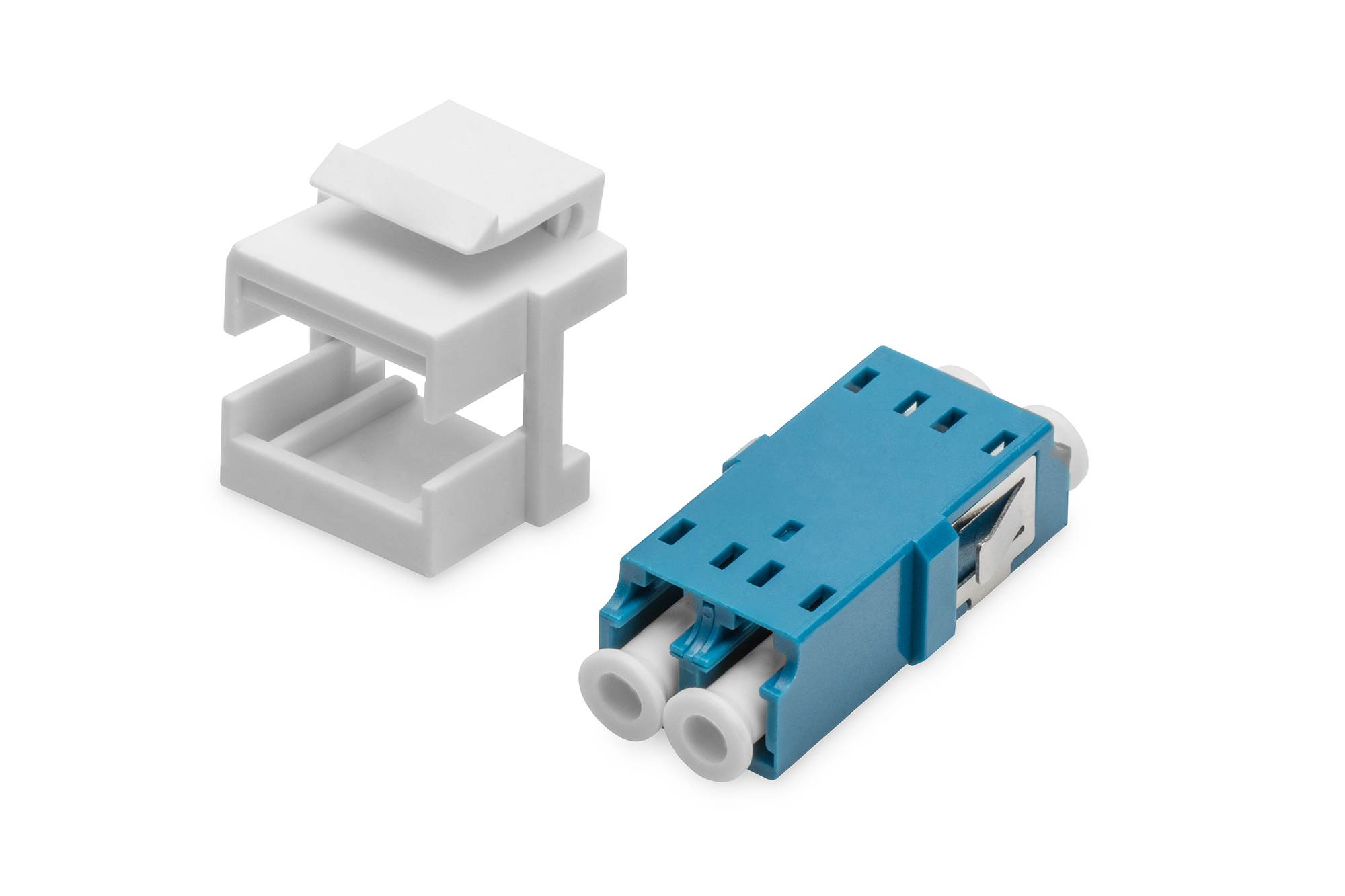

Fiber LC-duplex coupler, SM, for keystone panel OS2, Color blue, incl. keystone frame
The standardized dimensions of adapters makes it suitable for most conventional distributors and wall outlets making it a great solution for bringing fiber to the home and office.
Robust snap-in design
Quick and easy installation
Suitable for use in different standard size Keystone installations
High precision and low insertion loss
DESCRIPTION
The fiber optic keystone couplers are used to connect two LC fiber optic cables to extend the length of the cable link. Installation is extremely simple with the snap-in technology. They can be easily snap into keystone patch panels or wall plates with standard openings, allowing to run cables through walls and conveniently connect to your fiber optic network.
TECHNICAL DETAILS
Connector Type : LC-LC Duplex
Polish Type : UPC
Fiber Mode : Single Mode
Mounting Type : Withouth Flange
Color : Blue
Sleeve Material : Ceramic
Operating Temperature Range : -25 to 70?
Storage Temperature Range : -25 to 70?
Weight: 0.005 kg
Dimensons (L x W x D) : 17 x 22 x 33 mm
Dimensions (L x W x D) : 17 x 22 x 33 mm
PACKAGE CONTENT
LC/LC SM Coupler for Keystone Module
The standardized dimensions of adapters makes it suitable for most conventional distributors and wall outlets making it a great solution for bringing fiber to the home and office.
Robust snap-in design
Quick and easy installation
Suitable for use in different standard size Keystone installations
High precision and low insertion loss
DESCRIPTION
The fiber optic keystone couplers are used to connect two LC fiber optic cables to extend the length of the cable link. Installation is extremely simple with the snap-in technology. They can be easily snap into keystone patch panels or wall plates with standard openings, allowing to run cables through walls and conveniently connect to your fiber optic network.
TECHNICAL DETAILS
Connector Type : LC-LC Duplex
Polish Type : UPC
Fiber Mode : Single Mode
Mounting Type : Withouth Flange
Color : Blue
Sleeve Material : Ceramic
Operating Temperature Range : -25 to 70?
Storage Temperature Range : -25 to 70?
Weight: 0.005 kg
Dimensons (L x W x D) : 17 x 22 x 33 mm
Dimensions (L x W x D) : 17 x 22 x 33 mm
PACKAGE CONTENT
LC/LC SM Coupler for Keystone Module
