DELL PE T360 8x3,5´´/XE2434/16GB/1x480GB_SSD/H755/2xGL/iD_ENT/1x700W/3yBas_NBD
Popis a parametry
Ke stažení

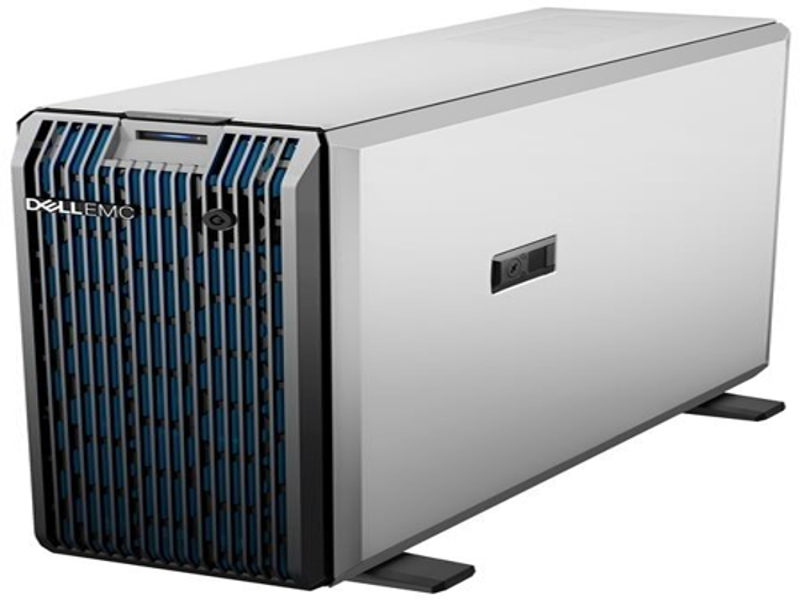

DELL PE T360 8x3,5´´/XE2434/16GB/1x480GB_SSD/H755/2xGL/iD_ENT/1x700W/3yBas_NBD
PowerEdge T360
Deliver powerful compute with a single processor server
The Dell PowerEdge T360 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features.
3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC, hot-plug PS
Procesor: Intel Xeon E-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5
Velikost operační paměti: 1x 16GB UDIMM, 4800MT/s ECC (max. 4x RAM)
HDD kapacita: 1x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR (max 8x HDD)
Optická mechanika: bez ODD
Operační systém: bez OS
Single, Hot-Plug, Power Supply, 700W MM HLAC (ONLY FOR 200-240Vac) Titanium, Non Redundant (1+0) (max. 2x PSU)
Provedení skříně: Mini Tower
Security Bezel
Max. 8x 3,5´´ SSD, SAS, NLSAS nebo SATA hotplug disky
Síť 2x 1GbE LAN, integrovaná na desce On-Board Broadcom 5720 Dual Port 1Gb LOM
Řadič PERC H755 Adapter RAID Controller (12 Gb/s, 6 Gb/s, RAID 0, 1, 5, 6 hardwarový, 8GB cache)
Vzdálená správa iDRAC9 Enterprise 15G
Záruka 3 roky Basic NBD
PCIe :
2 x Gen 4 PCIe
2 x Gen 3 PCIe
Dimensions
• Height – 382.5 mm (15.06 inches)
• Width – 175 mm (6.89 inches)
• Depth – 579.72 mm (22.82 inches) with bezel
Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 3.2 Gen1
Rear Ports
• 3 x USB 2.0
• 3 x USB 3.2 Gen1
• 1 x Dedicated iDRAC Ethernet port
• 1 x Serial
• 1 x VGA
• 2 x Ethernet ports
Internal Ports
• 1 x USB 3.2 Gen1
Deliver powerful compute with a single processor server
The Dell PowerEdge T360 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features.
3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC, hot-plug PS
Procesor: Intel Xeon E-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5
Velikost operační paměti: 1x 16GB UDIMM, 4800MT/s ECC (max. 4x RAM)
HDD kapacita: 1x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR (max 8x HDD)
Optická mechanika: bez ODD
Operační systém: bez OS
Single, Hot-Plug, Power Supply, 700W MM HLAC (ONLY FOR 200-240Vac) Titanium, Non Redundant (1+0) (max. 2x PSU)
Provedení skříně: Mini Tower
Security Bezel
Max. 8x 3,5´´ SSD, SAS, NLSAS nebo SATA hotplug disky
Síť 2x 1GbE LAN, integrovaná na desce On-Board Broadcom 5720 Dual Port 1Gb LOM
Řadič PERC H755 Adapter RAID Controller (12 Gb/s, 6 Gb/s, RAID 0, 1, 5, 6 hardwarový, 8GB cache)
Vzdálená správa iDRAC9 Enterprise 15G
Záruka 3 roky Basic NBD
PCIe :
2 x Gen 4 PCIe
2 x Gen 3 PCIe
Dimensions
• Height – 382.5 mm (15.06 inches)
• Width – 175 mm (6.89 inches)
• Depth – 579.72 mm (22.82 inches) with bezel
Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 3.2 Gen1
Rear Ports
• 3 x USB 2.0
• 3 x USB 3.2 Gen1
• 1 x Dedicated iDRAC Ethernet port
• 1 x Serial
• 1 x VGA
• 2 x Ethernet ports
Internal Ports
• 1 x USB 3.2 Gen1
ParametryPorovnání
Provedení (servery)
Tower
Rack provedení (servery)
Ne
CPU (servery)
Intel Xeon Quad-Core
CPU patic (servery)
1
RAM slotů (servery)
4
RAM obsazeno (servery)
16 GB a více
HDD technologie (servery)
SAS/SATA/SSD
HDD formát (servery)
3,5"
HDD hot plug (servery)
Ano
Max. počet HDD (servery)
8
RAID řadič (servery)
RAID 0,1,5,6
Cache na řadiči (servery)
8 GB
Cache battery backup (servery)
Ano
Optická mechanika (servery)
Ne
FDD mechanika (servery)
Ne
5,25" slot (servery)
0
3,5" slot (servery)
8-10
PCI sloty (servery)
Ne
PCI-X sloty (servery)
Ne
PCI-e sloty (servery)
Ano
Ethernet (servery)
2x GL
Vzdálená správa (servery)
Ano
Zdroj osazený (servery)
Ano
Zdroj hot plug (servery)
Ano
Pozice pro další zdroj (servery)
Ano
Výrobce (servery)
DELL
Operační systém (servery)
Ne
DELL PE T360 8x3,5´´/XE2434/16GB/1x480GB_SSD/H755/2xGL/iD_ENT/1x700W/3yBas_NBD
