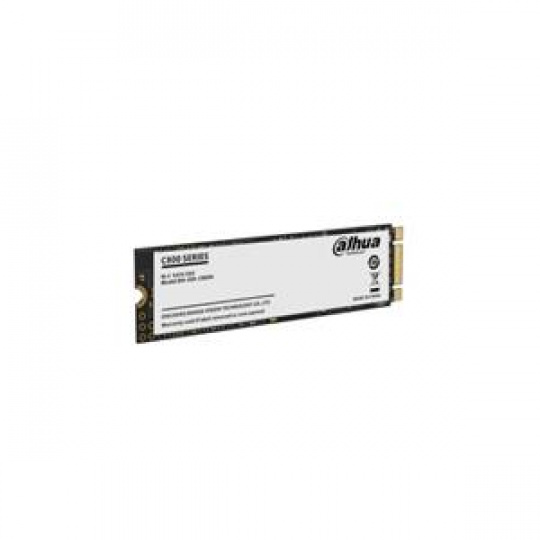

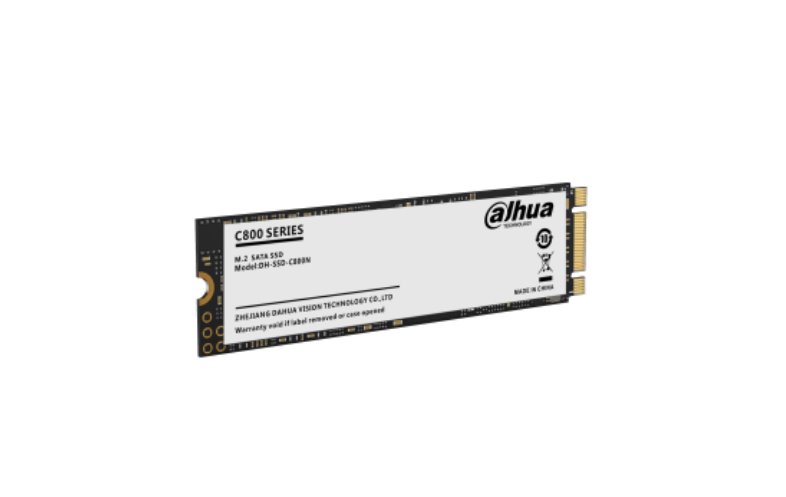

256GB M.2 SATA SSD, Consumer level, 3D NAND
Read speed up to 550 MB/s, Write speed up to 500 MB/s
Operating Temperature 0~70°C, Storage Temperature -40~85°C
TBW 100TB
3-year limited warranty

Basic Parameters
Application Scenarios As a new generation of SATA M.2 SSD product launched by Dahua, the C800 series adopt high-quality 3D wafer level chip and high-performance controller. It is consumer-grade solid state drive designed for those support SATA M.2 port personal desktops and notebooks . The product can process data efficiently and ensure quick start-ups. In multi-tasking, it can ensure high speed and stability.
Capacity 256 GB
Form Factor SATA M.2 2280
Port SATA III 6Gb/s
Net Weight Max. 7 g (0.02 lb)
Gross Weight Max. 60 g (0.13 lb)
Product Dimensions 80.00 mm × 22.00 mm × 2.20 mm (3.15" × 0.87" × 0.09")
Packaging Dimensions 130 mm × 104 mm × 17 mm (5.12" × 4.09" × 0.67")
Memory Component 3D NAND
Power Consumption 1.60W (max.) 0.48W (idle)
Bus Type SATA 3.0

Function
S.M.A.R.T Yes
TRIM Yes
Garbage Collection Yes

Performance
Sequential Read Up to 490 MB/s
Sequential Write Up to 470 MB/s
4K Random Read Up to 65700
4K Random Write Up to 72100

Environment
MTBF 1,500,000 hours
Operating Temperature 0°C to +70°C (+32°F to +158°F)
Storage Temperature –40°C to +85°C (–40°F to +185°F)
Operating Humidity 5%–95% (non-condensing)
Vibration Resistance 10-200Hz, 0.5G
Shock Resistance 1500G/0.5 ms (half sine wave)

Guarantee
TBW 100 TB
Warranty 3-year limited warranty
