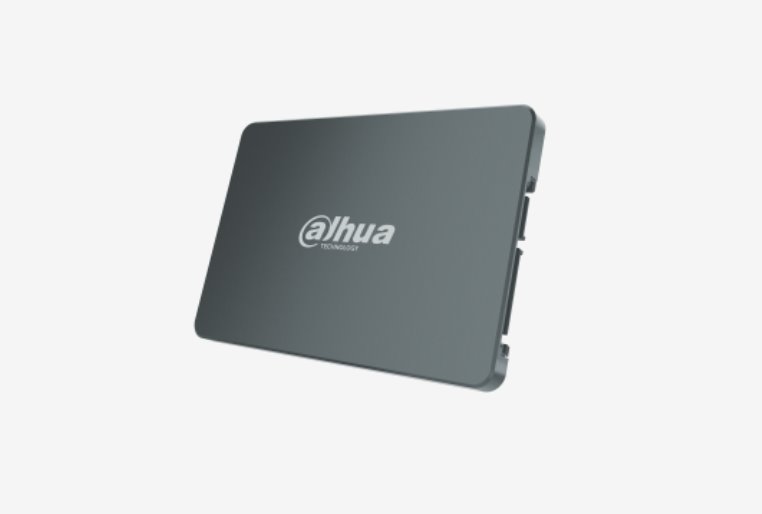

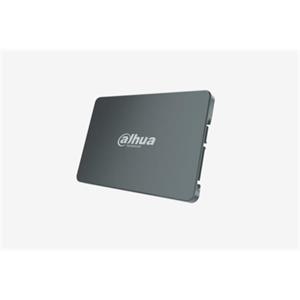

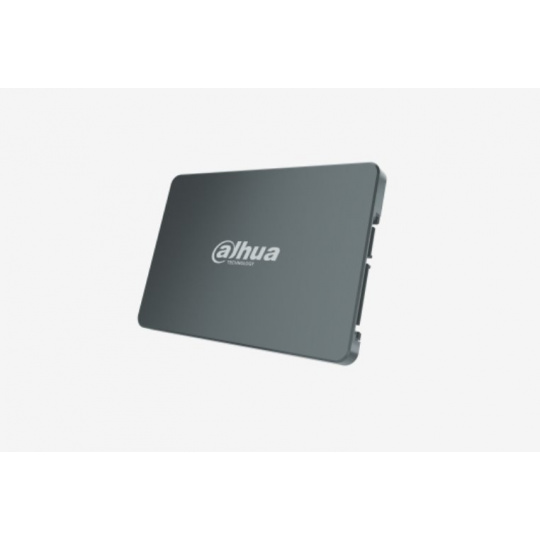

SSD-C800AS1TB
2.5 inch SATA Solid State Drive
Adopts high-quality wafer level chip
Supports SATA III protocol with transmission speed up to 550 MB/s
View information through S.M.A.R.T
Provides better read and write performance with TRIM and NCQ
Low power consumption management

Basic Parameters
Application Scenarios As a new generation of 2.5" SSD product launched by Dahua, the C800 series adopt high-quality 3D wafer level chip and high-performance controller. It is consumer-grade solid state drive designed for personal desktops and notebooks. The product can process data efficiently and ensure quick start-ups. In multi-tasking, it can ensure high speed and stability.
Capacity 1TB
Form Factor 2.5"
Port SATAIII 6Gb/s
Net Weight Up to 40 g (0.09 lb)
Gross Weight Up to 70 g (0.15 lb)
Product Dimensions 100.2 mm × 69.9 mm × 7.0 mm (3.9" × 2.8" × 0.3") (L × W × H)
Packaging Dimensions 140.5 mm × 105.5 mm × 15.5 mm (5.5" × 4.2" × 0.6") (L × W × H)
Memory Component 3D NAND
Power Consumption 1960/840mW

Function
S.M.A.R.T Support
TRIM Support
Garbage Collection Support
Performance
Sequential Read Up to 550MB/s
Sequential Write Up to 500MB/s

Environment
MTBF 1.5 million hours
Operating Temperature 0 °C to +70 °F (+32 °C to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5% – 95% (RH)
Vibration Resistance 10 – 200 Hz, 0.5 G
Shock Resistance 1500 G&0.5 ms (half-sine)

Guarantee
TBW 400 TB
Warranty 5-year limited warranty
