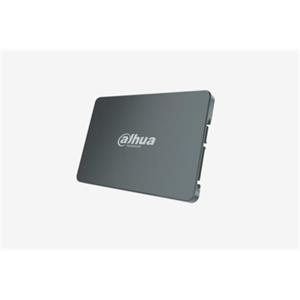

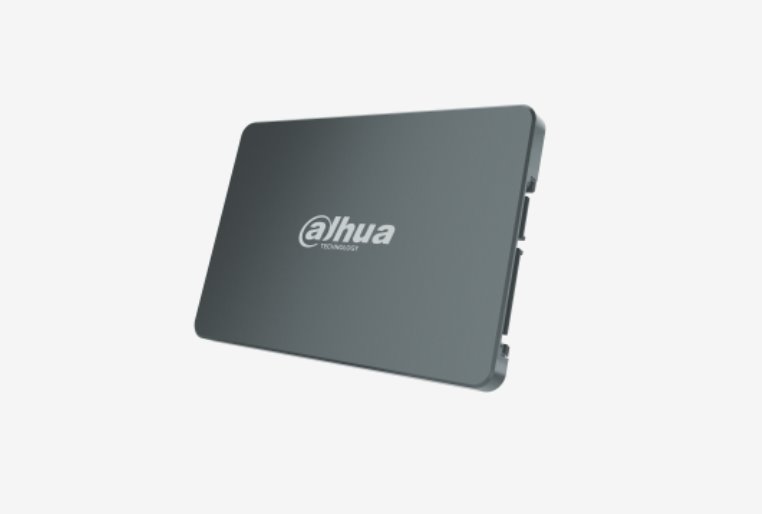

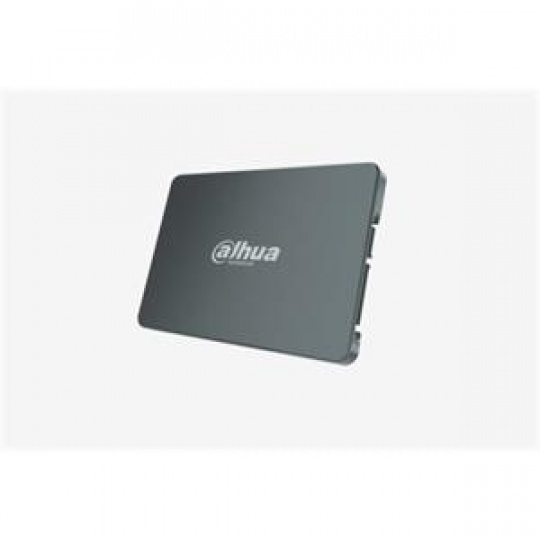

120GB 2.5 inch SATA SSD, Consumer level, 3D NAND
Read speed up to 550 MB/s, Write speed up to 420 MB/s
Operating Temperature 0~70°C, Storage Temperature -40~85°C
TBW 50TB
3-year limited warranty

Basic Parameters
Application Scenarios As a new generation of 2.5" SSD product launched by Dahua, the C800 series adopt high-quality 3D wafer level chip and high-performance controller. It is consumer-grade solid state drive designed for personal desktops and notebooks. The product can process data efficiently and ensure quick start-ups. In multi-tasking, it can ensure high speed and stability.
Capacity 128 GB
Form Factor 2.5 inch
Port SATA III 6Gb/s
Net Weight Max 40 g (0.09 lb)
Gross Weight Max 70 g (0.15 lb)
Product Dimensions 100.20 mm × 69.90 mm × 7.00 mm (3.94" × 2.75" × 0.28")
Packaging Dimensions 140.50 mm × 105.50 mm × 15.50 mm (5.53" × 4.15" × 0.61")
Memory Component 3D NAND
Power Consumption 1065 mW (max) 400 mW (idle)
Bus Type SATA 3.0

Function
S.M.A.R.T Yes
TRIM Yes
Garbage Collection Yes

Performance
Sequential Read Up to 530 MB/s
Sequential Write Up to 450 MB/s

Environment
MTBF 1,500,000 hours
Operating Temperature 0°C to +70°C (+32°F to +158°F)
Storage Temperature –40°C to +85°C (–40°F to +185°F)
Operating Humidity 5%–95% (non-condensing)
Vibration Resistance 10-200Hz, 0.5G
Shock Resistance 1500G/0.5 ms (half sine wave)

Guarantee
TBW 50 TB
Warranty 3-year limited warranty
