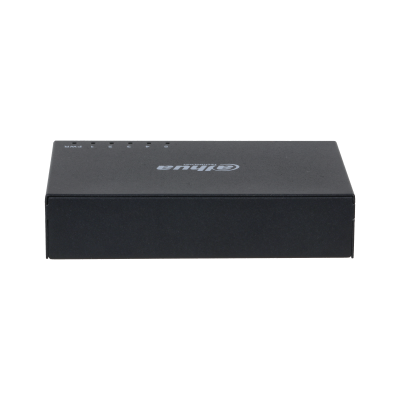

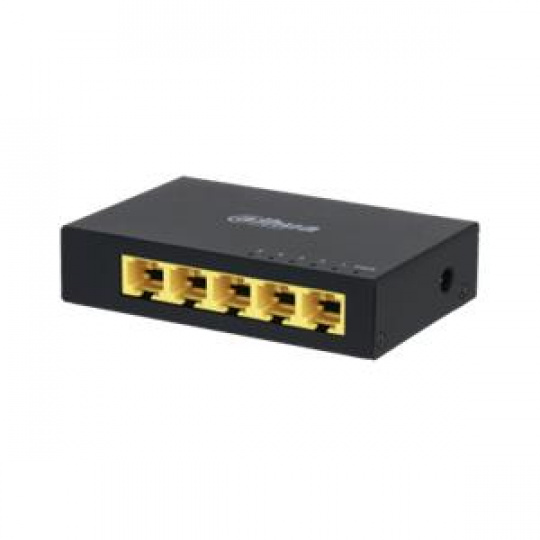

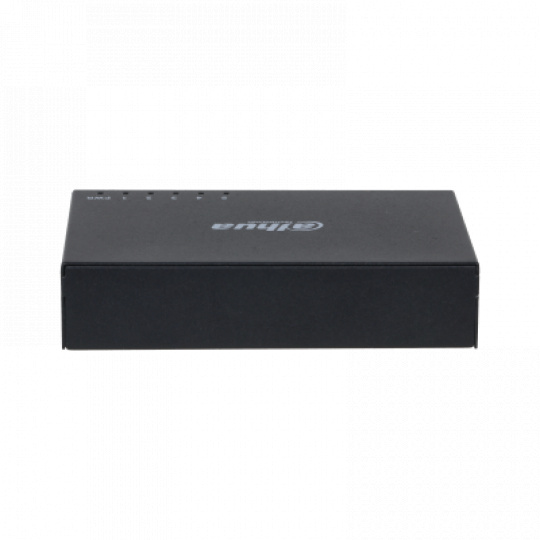

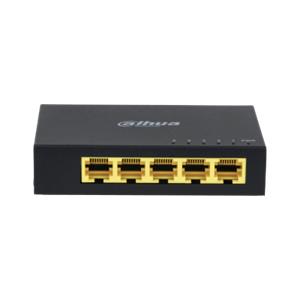

Unmanaged Desktop Switch

Plug and play: No configuration required.

Robust design: 24/7 stable performance in operating temperature from 0 °C to 40 °C.

Optimized performance: Provides full-speed transmission in all ports simultaneously.

Flexible deployment: Supports desktop and wall mount


Specifications

Performance

Layer

Layer 2



Hardware

Standard Power Supply

Yes

Ethernet Port

5

Ethernet Port Rate

10/100/1000 Mbps

Power Supply

5V/600 mA DC

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

10%–90% (RH)

Power Consumption

3 W


Performance

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

Packet Buffer Memory

1 Mbit

MAC Table Size

2K

Standards Compliance

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE802.3az


General

ESD

Air discharge: 8 kV

Contact discharge: 6 kV

Thunderproof

Common mode: 2 kV

Net Weight

195 g (0.43 lb)

Dimensions

100 mm × 65 mm × 22.6 mm (3.94" × 2.56" × 0.88")

(L × W × H)
