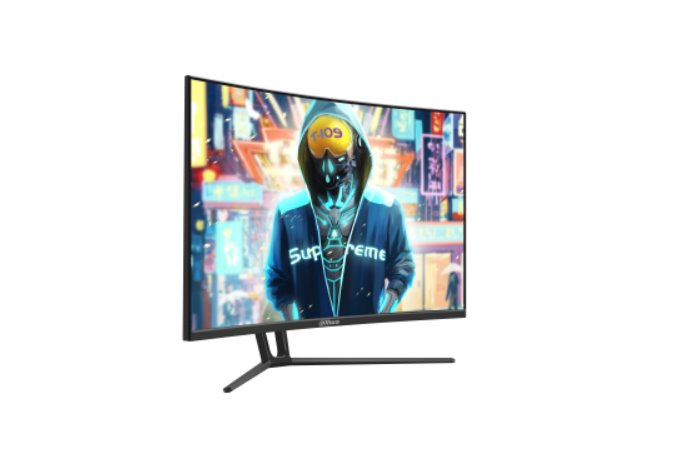

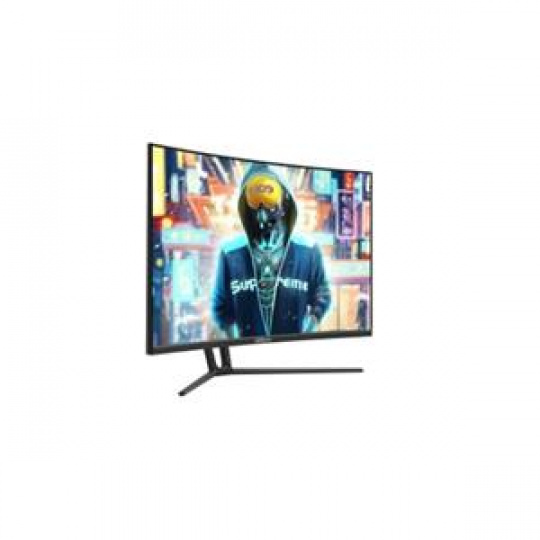

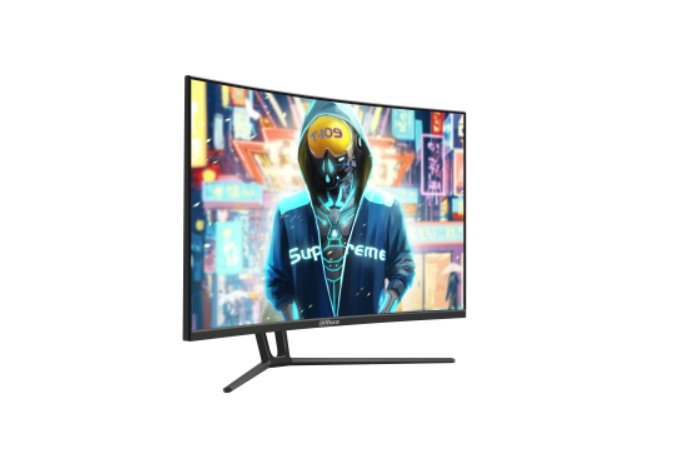

Dahua monitor LM32-E230CN, 32" 1920×1080 (FHD), 165Hz LED, 300 cd/m, 3000:1, 1ms
Popis a parametry
Ke stažení
Dahua monitor LM32-E230CN, 32" 1920×1080 (FHD), 165Hz LED, 300 cd/m, 3000:1, 1ms
LM32-E230C
31.5’’ FHD Monitor
The 1920*1080 resolution produces clearer and more vivid pictures;
Comfortable 1500R exquisite curvature, close to the natural look and feel of the human eye, bringing immersive visual enjoyment
Wide color gamut, 99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB. It meets the designer's demand of image texture;
178°H/178°V extra-wide viewing angle for all-round viewing performance;
Adaptive sync can effectively solve picture lagging and tearing problems;
1ms fast response time with no image blurring or ghosting;
Power & Environmental Conditions
Power Supply 100–240 VAC (±10%), 50/60 Hz
Power Type Built-in Power
Power Consumption 26 W (basic), 45 W (typ.), 45 W (max)
Standby Power Consumption 0.5 W
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 10%–85% (RH)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity 5%–90% (RH)
General
Product Dimensions 712.5 mm × 422.8 mm × 120.6 mm (28.05" × 16.65" × 4.75") (W × H × D), without bracket
Package Size 801 mm × 533 mm × 171 mm (31.54" × 20.98" × 6.73") (W × H × D)
Net Weight 7.07 kg (15.59 lb)
Gross Weight 9.09 kg (20.04 lb)
Accessory Power cord, DP cable, user's manual, legal and regulatory information etc.
Wall Mount VESA 75 mm × 75 mm (2.95"×2.95")
Device Ports
Input Port 1 × DP 1.4 (1920 × 1080@165 Hz), 1 × HDMI 2.0 (1920 × 1080@165 Hz)
Output Port 1 × Audio out
Certification
Certifications CE EMC, CE LVD, CE ERP
Display
Model DHI-LM32-E230CN
LCD Technology VA
Backlight ELED
Screen Size 31.5 inch
Aspect Ratio 16:9
Resolution 1920 (H) × 1080 (V)
Refresh Rate 165 Hz
Display Color 8 bit
Color Gamut 99% sRGB
Brightness 300 cd/m2 (max)
Contrast Ratio 3000:1
Viewing Angle 178° (H) / 178° (V)
Display Mode Horizontal
Response Time MPRT 1 ms
Lifespan 30,000 hrs
31.5’’ FHD Monitor
The 1920*1080 resolution produces clearer and more vivid pictures;
Comfortable 1500R exquisite curvature, close to the natural look and feel of the human eye, bringing immersive visual enjoyment
Wide color gamut, 99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB. It meets the designer's demand of image texture;
178°H/178°V extra-wide viewing angle for all-round viewing performance;
Adaptive sync can effectively solve picture lagging and tearing problems;
1ms fast response time with no image blurring or ghosting;
Power & Environmental Conditions
Power Supply 100–240 VAC (±10%), 50/60 Hz
Power Type Built-in Power
Power Consumption 26 W (basic), 45 W (typ.), 45 W (max)
Standby Power Consumption 0.5 W
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 10%–85% (RH)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity 5%–90% (RH)
General
Product Dimensions 712.5 mm × 422.8 mm × 120.6 mm (28.05" × 16.65" × 4.75") (W × H × D), without bracket
Package Size 801 mm × 533 mm × 171 mm (31.54" × 20.98" × 6.73") (W × H × D)
Net Weight 7.07 kg (15.59 lb)
Gross Weight 9.09 kg (20.04 lb)
Accessory Power cord, DP cable, user's manual, legal and regulatory information etc.
Wall Mount VESA 75 mm × 75 mm (2.95"×2.95")
Device Ports
Input Port 1 × DP 1.4 (1920 × 1080@165 Hz), 1 × HDMI 2.0 (1920 × 1080@165 Hz)
Output Port 1 × Audio out
Certification
Certifications CE EMC, CE LVD, CE ERP
Display
Model DHI-LM32-E230CN
LCD Technology VA
Backlight ELED
Screen Size 31.5 inch
Aspect Ratio 16:9
Resolution 1920 (H) × 1080 (V)
Refresh Rate 165 Hz
Display Color 8 bit
Color Gamut 99% sRGB
Brightness 300 cd/m2 (max)
Contrast Ratio 3000:1
Viewing Angle 178° (H) / 178° (V)
Display Mode Horizontal
Response Time MPRT 1 ms
Lifespan 30,000 hrs
ParametryPorovnání
Display port (monitory)
Ne
Dotykový displej (monitory)
Ne
Typ povrchu displeje (monitory)
Matný
Podpora VESA (monitory, TV)
Ano
Prohnutá obrazovka (monitory)
Ano
USB-C zpětné nabíjení ntb (monitory)
Ne
USB-C integrovaná dokovací stanice (monitory)
Ne
Pivot
Ne
Výškově nastavitelný
Ne
RJ45 (monitory)
Ne
Výrobce (monitory)
DAHUA
Technologie (monitory, TV)
LCD (LED podsvícení)
Úhlopříčka displeje (monitory, TV)
32"
Formát zobrazení (monitory)
16:9 (širokoúhlý)
Typ displeje (monitory)
LCD VA
VGA/D-SUB vstup (monitory)
Ano
DVI vstup (monitory)
Ne
USB (monitory)
Ne
Reproduktory (monitory)
Ne
Kontrast (monitory)
1 100:1 – 10 000:1
Doba odezvy (monitory)
1 ms
Jas (monitory)
300 cd/m2
Rozlišení (monitory, TV)
1920x1080 (Full HD)
Integrovaný TV tuner (monitory)
Ne
Barva (monitory)
Černá
HDMI počet (monitory, TV)
1
GPSR
Dahua Technology Czech s.r.o.;Vyskočilova 1566,14000,Praha 4,Česká republika;info@dahuatech.com
Dahua monitor LM32-E230CN, 32" 1920×1080 (FHD), 165Hz LED, 300 cd/m, 3000:1, 1ms
