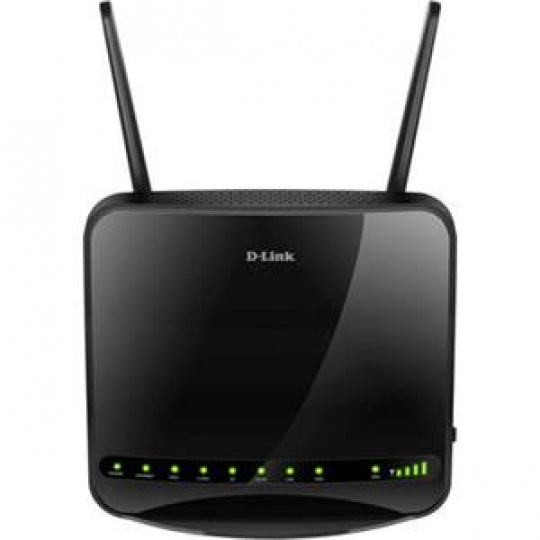

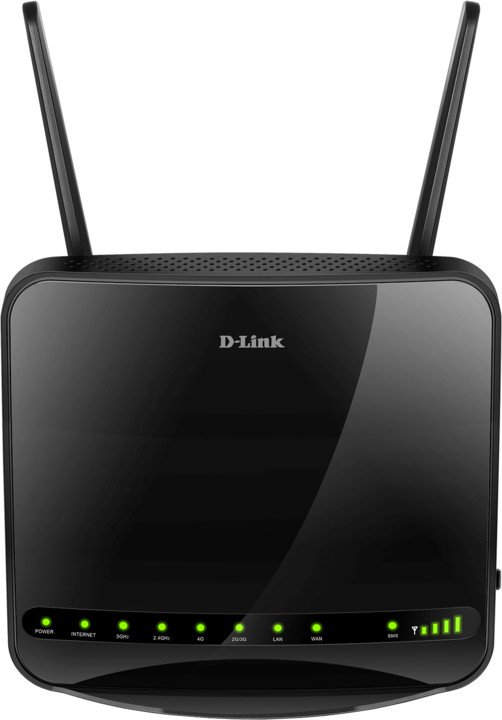

The DWR-953 Wireless AC1200 4G LTE Multi-WAN Router allows you to seamlessly switch to a 4G LTE mobile internet backup network when your broadband internet goes down, with download speeds of up to 150 Mbps2, so you can keep using the internet without interruptions.

D-Link’s DWR-953 Wireless AC1200 4G LTE Multi-WAN Router allows you to share a high speed 4G LTE mobile broadband network with multiple devices through Wi-Fi or wired connection. Once connected, you can transfer data, stream media, and send SMS messages. Simply insert your SIM card and share your 4G LTE Internet connection through a secure wireless network or any of the four Gigabit Ethernet LAN ports.

LTE Cat4 Wi-Fi AC1200 Router
- 3G Bands B1/B8
- LTE FDD: B1/B3/B7/B8/B20/B28
- LTE TDD: B38/B40
- 1 x 10/100/1000 Gigabit Ethernet WAN/LAN port
- 3 x 10/100/1000 Gigabit Ethernet LAN ports
- 2 x 4G LTE antennas
- IEEE 802.11ac/n/g/b
- IEEE 802.3
- IEEE 802.3u
- 64/128-bit WEP (Wired Equivalent Privacy)
- WPA & WPA2 (Wi-Fi Protected Accesss)

TECHNICAL SPECIFICATION

Frequency Support

LTE Bands: Release 10, Cat 4: Bands 1/2/3/5/7/8/20/38/40 (FDD: 2100/1900/1800/850/2600/900/800 MHz, TDD: 2600/TDD 2300 MHz) *Pentaband UMTS/HSPA/HSPA+/DC-HSPA+ 1/2/3/5/8 (2100/1900/1800/850/900 MHz)
Quadband GSM/GPRS/EDGE 850/900/1800/1900 MHz

Device Interfaces

One 10/100/1000 Gigabit Ethernet WAN port
Four 10/100/1000 Gigabit Ethernet LAN ports
Two detachable 4G LTE antennas

Data Rates

LTE Downlink: Up to 150 Mbps
LTE Uplink: Up to 50 Mbps
DC-HSPA Downlink: Up to 42 Mbps
DC-HSPA Uplink: Up to 5.72 Mbps

Standards

802.11ac/n/g/b/a
802.3i
802.3u

Wi-Fi Data Rates

Up to 866 Mbps with 802.11ac clients
Up to 300 Mbps with 802.11n clients
6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode1
1/2/5.5/11 Mbps in 802.11b mode1

Wireless Encryption

64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)

Firewall

Network Address Translation (NAT)
Stateful Packet Inspection (SPI)

LED Status Indicators

Power
Internet
5 GHz
2.4 GHz
4G 2G/3G
LAN
WAN
SMS
Signal Strength

Dimensions

170 x 180 x 80 mm (6.69 x 7.09 x 3.15 in)

Weight

400 g (14.1 oz)

Temperature

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)

Humidity

Operating: 10% to 90% non-condensing
Storage: 0% to 95% non-condensing

Certifications

CE
