Informace k záruce:
Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.

http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in

General

Port Standards & Functions

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation

Number of Ports

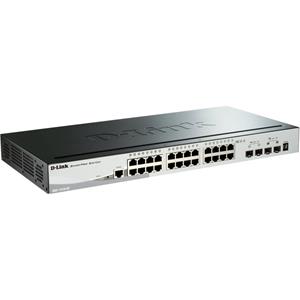

DGS-1510-28XMP - 24 10/100/1000 Mbps PoE capable, 4 10G SFP+


Network Cables

UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex

Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange

Auto or configurable MDI/MDIX

Performance

Switching Capacity

DGS-1510-28XMP - 128 Gbps

Transmission Method

Store-and-forward

MAC Address Table

16,000 entries per device

MAC Address Update

Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate
DGS-1510-28XMP - 95.24 Mpps


Packet Buffer Memory

DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device

Physical & Environment

AC Input

100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

DGS-1510-28XMP - 436.3 W (PoE on), 38.4 W (PoE off)


Standby Power Consumption

DGS-1510-28XMP - 28.3 W


Smart Fan Quantity

DGS-1510-28P/28XMP/52/52X – 2

Acoustics

DGS-1510-28XMP - 56.9 dB(A)

Heat Dissipation

DGS-1510-28XMP - 1487.78 BTU/hr


Operation Temperature

-5 to 50 °C (23 to 122 °F)

Storage Temperature

-20 to 70°C (-4 to 158 °F)

Operation Humidity

0% to 95% non-condensing

Storage Humidity

0% to 95% non-condensing

Dimensions

DGS-1510-28XMP - 440 x 308 x 44 mm (17.36 x 12.12 x 1.73 inches)


Weight
DGS-1510-28XMP - 4.25 kg


Diagnostic LEDs

Power/Stacking ID/Fan (per device)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)

Certifications

CE
FCC
C-Tick
VCCI
BSMI
CCC

Safety

cUL
CB

Software Features

Stackability

Virtual Stacking Support
D-Link Single IP Management
Up to 32 devices per virtual stack
Up to 20G stacking bandwidth
Physical Stacking1
Supports Duplex Chain/Ring topology
Up to 40G stacking bandwidth full duplex
Up to 6 units per stack

L2 Features

MAC Address Table: Up to 16,384
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9,216 Bytes
IGMP Snooping
IGMP v1/v2 Snooping
IGMP v3 awareness
Supports 512 IGMP groups
Supports 128 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Host-based IGMP Snooping Fast Leave
MLD Snooping
Supports MLD v1/v2 awareness
Supports 512 groups
Supports 128 Static Multicast Addresses
Per VLAN MLD Snooping
Host-based MLD Fast Leave
MLD Snooping Querier
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Loopback Detection v4.072
802.3ad Link Aggregation
Max. 32 groups per device/8 ports per group
Port Mirroring
Support 4 mirroring groups
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Ethernet Ring Protection Switching (ERPS)

VLAN

802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
GVRP
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN 2.02
MAC-based VLAN
Protocol-based VLAN

Quality of Service (QoS)

CoS based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TC
