BenQ LCD SW270C 27" IPS/2560x1440/10bit/5ms/DP/HDMIx2/USB-C/SDcard/Jack/VESA/pivot/HDR10/LUT/99% AdobeRGB//97% DCI-P3
Velikost obrazovky 27"
Rozlišení (max.) 2560x1440 px
Specifikace:
Display
Screen Size 27"
Panel Type IPS
Backligh Technology LED backlight
Resolution (max.) 2560x1440
Brightness 300
Native Contrast(typ.) 1000:1
Viewing Angle (L/R;U/D) (CR>=10) 178/178
Response Time 5 ms (GtG)
Refresh Rate 60Hz
Aspect Ratio 16:9
Display Colors 1.07 billion colors
Color Gamut 99% AdobeRGB, 97% P3, 100% sRGB
Display Area(mm) 596.7x335.6
Pixel Pitch (mm) 0.2331
PPI 109
DCR (Dynamic Contrast Ratio) (typ.) 20M:1
Color Bit 10bits
Audio
Headphone Jack
Monitor
Segment Photographer
Product Color Gray
Color Mode Adobe RGB / sRGB / B&W / Rec. 709 / DCI-P3 / Display P3 / M-book / HDR / DICOM/Calibration 1 / Calibration 2 / Calibration 3 / Custom 1 / Custom 2
HDR HDR10
Display Mode Full, Aspect Ratio, 1:1
Color Temperature 5000°K / 6500°K/ 9300°K / User Mode
Gamma 1.6 - 2.6, sRGB
K Locker
OSD Language 18 Languages (English / Francais / Deutsch / Italiano / Espanol / Polish / Czech / Hungarian / Romanian / Netherlands / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic/Korean)
PIP/PBP
HDCP 2.2
VESA Wall Mount 100x100mm
AMA
Display Screen Coating Anti-Glare
Professional
3D-LUT 16bits
Delta E <= 2 ( avg)
Uniformity Technology
Hardware Calibration
Video Format Support
Gamut Duo
Black & White mode
Black Level
Hotkey Puck G2
Factory Calibration Report
Connectivity
HDMI (v2.0) x2
DisplayPort (v1.4)
USB 3.1 Hub USB Downstream x 2, Mini USB x 1
USB 3.1 Hub USB Upstream x 1
USB Type-C PD60W, DP Alt mode, Data
Card Reader SD/SDHC/SDXC/MMC
Power
Voltage Rating 100~240V
Power Supply Built-in
Power Consumption (based on Energy Star) 36.1W
Power Consumption (stand by mode) 0.5W
Power Consumption (sleep mode) 0.5W
Dimension and Weight
Dimensions (HxWxD mm) (w/o Base) (with shading hood) 372.2 x 626 x 238.04
Dimensions(HxWxD mm) (without shading hood) Landscape: 504.5-611 x 613.8 x 213.4; Portrait: 733.4 x 380.7 x 223.2
Dimensions (HxWxD mm) (w/o Base) 368.9 x 613.8 x 62.65
Dimensions (HxWxD mm) Landscape: 504.5-614.3 x 626 x 334.8; Portrait: 744.6 x 381.1 x 334.6
Net Weight (kg) (without shading hood) 9.5
Net Weight (kg) (without stand) Landscape: 6.5; Pivot: 6.8
Net Weight (kg) H: 10.6; Pivot: 10.9
Gross Weight (kg) 18.4
Tilt (down/up) -5°/- 20°
Swivel (left/right) 45/45

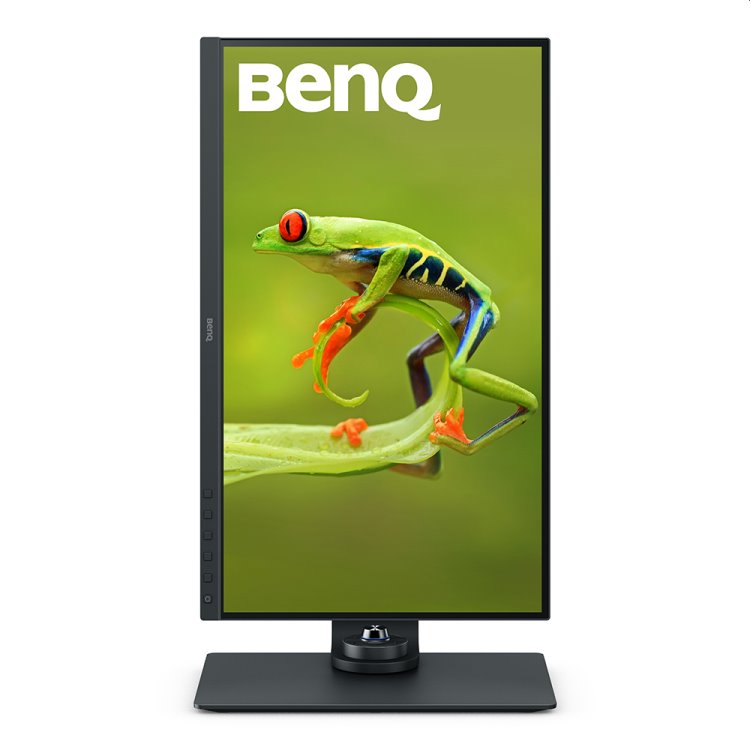

Pivot 90°
Height Adjustment (mm) 150mm
Software
Palette Master Element
Support Calibrator X-Rtie i1 Display Pro / i1 Pro /i1 Pro 2 /i1 Studio , Datacolor Spyder 4/5
Video Signal Data
Hor. Frequency (KHz) 27~140 KHz
Ver. Frequency (Hz) 24~76 Hz
Video Bandwidth (MHz) 600M Hz
Included Accessories

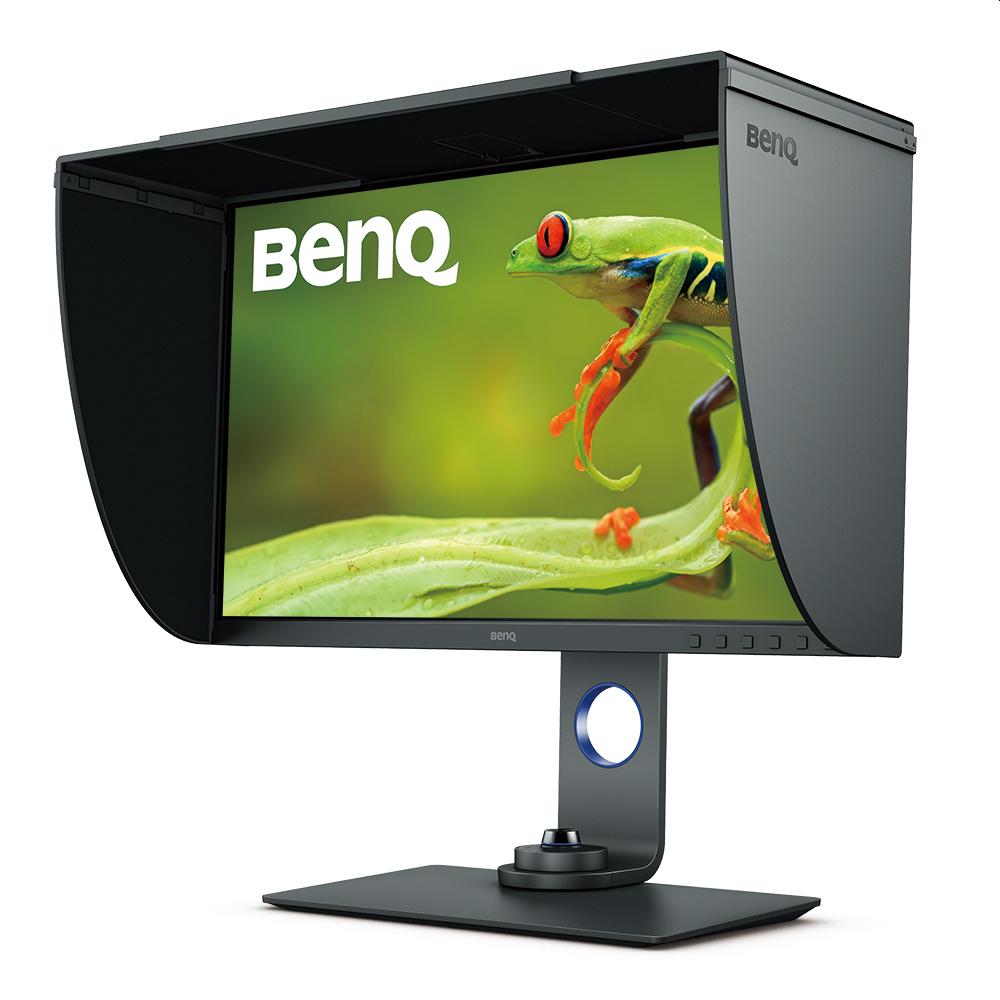

Shading hood (Landscape) - stínítko
CD
QSG
Factory Calibration Report
Hotkey Puck G2
Power Cable 1.8m
Signal Cable mDP to DP cable (1.8m), USB 3.1 cable (Gen 1)(1.8m)
Reliability
Operating Temperatur 0°C - 40°C
Operating Humidity (non-condensing) 10% - 90%
Compatibility
Mac Compatible
Windows® Compatible Windows®10, Windows®8.1, Windows®8, Windows®7
Certification
Verified by CalMAN
Pantone Validated
ParametryPorovnání
Display port (monitory)
Ano
Dotykový displej (monitory)
Ne
Typ povrchu displeje (monitory)
Matný
Podpora VESA (monitory, TV)
Ano
Prohnutá obrazovka (monitory)
Ne
USB-C zpětné nabíjení ntb (monitory)
Ne
USB-C integrovaná dokovací stanice (monitory)
Ne
Pivot
Ano
Výškově nastavitelný
Ano
RJ45 (monitory)
Ne
Výrobce (monitory)
BenQ
Technologie (monitory, TV)
LCD (LED podsvícení)
Úhlopříčka displeje (monitory, TV)
27"
Formát zobrazení (monitory)
16:9 (širokoúhlý)
Typ displeje (monitory)
LCD IPS
VGA/D-SUB vstup (monitory)
Ne
DVI vstup (monitory)
Ne
USB (monitory)
Ano
Reproduktory (monitory)
Ne
Kontrast (monitory)
12 000 000 – 50 000 000:1
Doba odezvy (monitory)
5 ms
Jas (monitory)
300 cd/m2
Rozlišení (monitory, TV)
2560x1440
Integrovaný TV tuner (monitory)
Ne
Barva (monitory)
Jiná barva
HDMI počet (monitory, TV)
2
