Model name WDC10C
Product name InstaShow™
Color Black
Video outputs HDMI 1.4, comply with HDCP
Frame Rate Up to 60 fps depending on environment
Output resolution 800 x 600, 1280x720 (720P),1024 x 768 (XGA),1280 x 768,1280x800(WXGA),1280 x 1024,1280 x 960,1360 x 768,1440 x 900,1400 x 1050,1680 x 1050, 1920x1080 (1080p)
Input resolution Up to 1920x1080
Simultaneous connections 16 pcs
Audio Stereo, Radio quality 16bits 48KHz
Wireless IEEE 802.11ac, 5GHz, 2T2R
Data rate wireless Up to 867Mbps
Authentication protocol WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)
Security (encryption ) AES 128 bit
Support platform Windows, MAC, Chrome. Any OS supports HDMI standard 1.4
Reach Max. 8m between InstaShow Button and InstaShow Host
Temperature range Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Humidity Storage: 5% to 90% relative humidity, non-condensing
Operation: 10% to 80% relative humidity, non-condensing

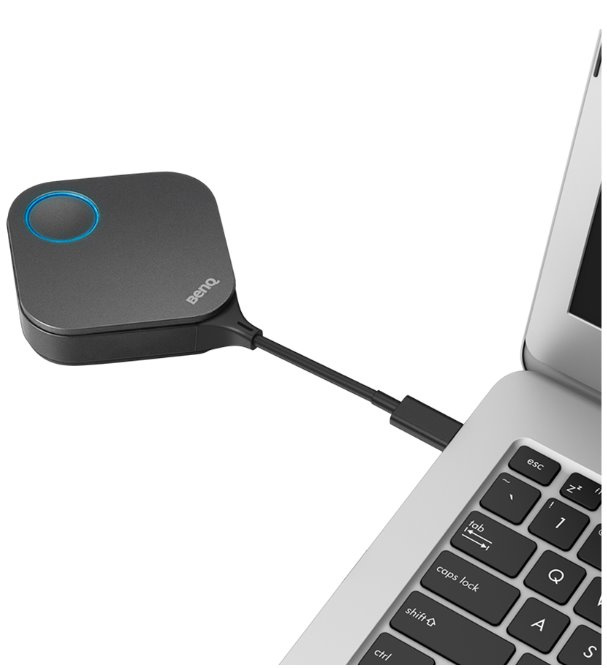

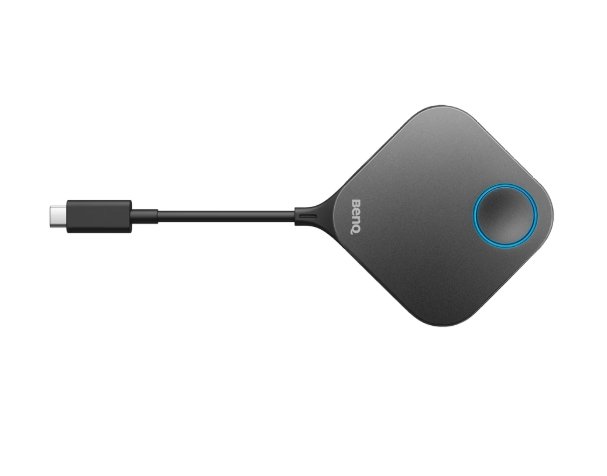

InstaShow Button
Cable USB Type-C
Reset Button x1
Mode Key x1
LED *Red (boosting), Green (wifi connected), Blue (presenting)
Power Supply DC 5V±10%, 0.9A
Power Consumption Normal: 4.5W
Dimension (WxHxD) 84.5x188.3x19.9mm
Weight 87.3g

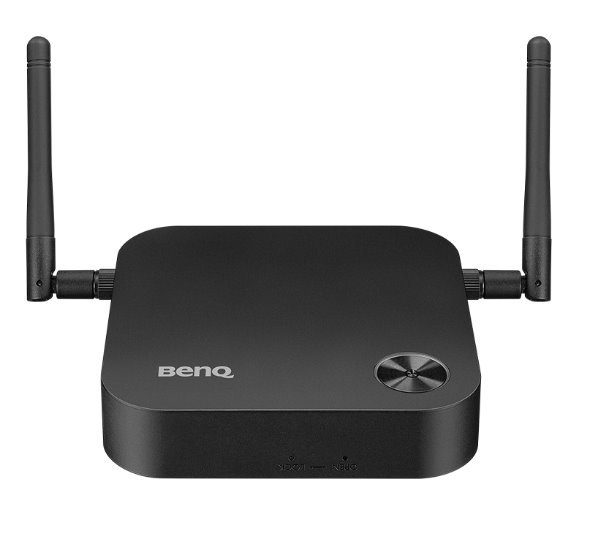

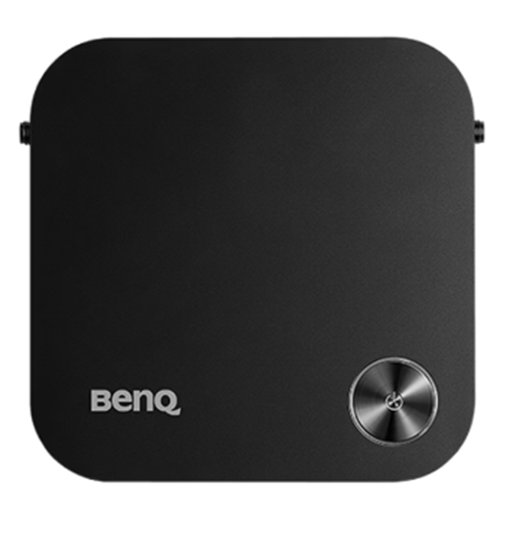

InstaShow Host

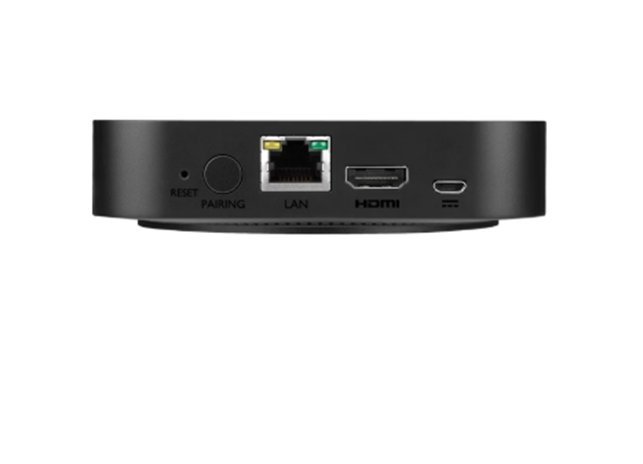

Power Button x1
Pairing Key x1
LAN x1(10/100 Mbps)
Video Output x1 HDMI 1.4 (video and audio)
LED *Red (boosting), Green (ready for connection), Blue (presenting)
DC Power Jack x1 (micro USB)
Power Supply DC 5V±10%, 1.5A
Normal: 5W
Power Consumption Network standby: 2W
HDMI standby: 0.02W
Dimension (WxHxD)
(not include rubber feet) 110x110x27mm (99mm with antenna)
Weight 150g

Cradle
Dimensioin 85*97.5*170.4 mm
Weight 630g

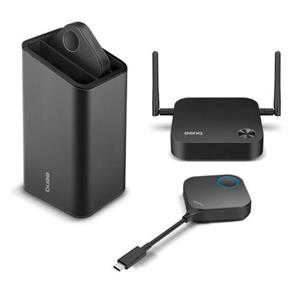

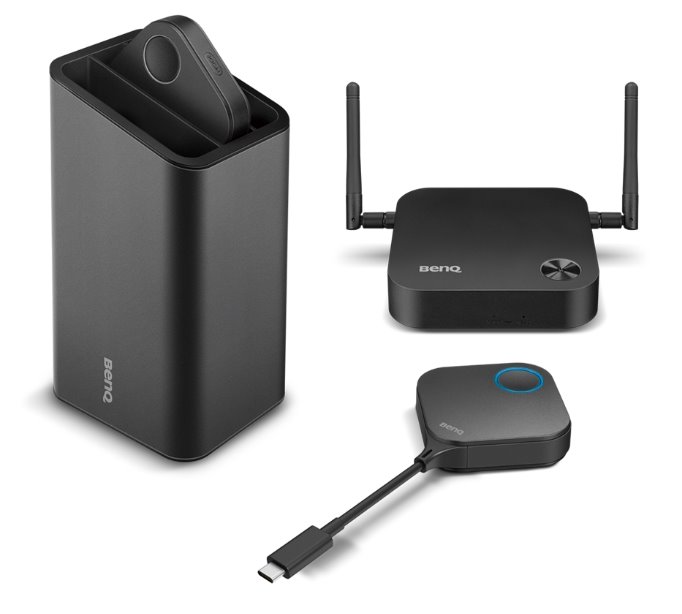

Package
InstaShow Button x2
InstaShow Host x1
Cradle x1
USB Power Cable x1 (150cm, USB Type A 3.0, micro USB)
HDMI Cable x1 (80cm)
Antenna x2 (Black)
Adapter x1
Velcro Strap x1
Quick Start Guide x1
Safety Statement x1
Double-side Sponge Tap x1
Rubber Feet x4
Screws x4

Note
Go to: http://www.benq.com/product/projector/INSTASHOW-WDC10C/
* Please find detail LED behavior in the user manual.
**Wireless connection speed is depended on wireless environment.
