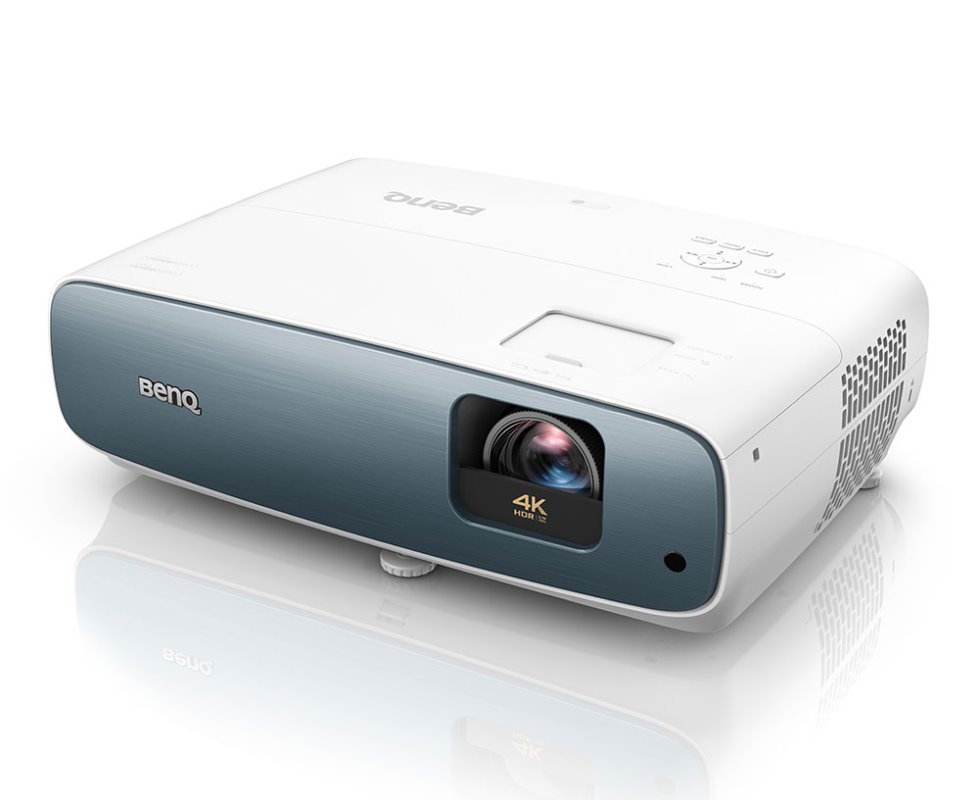

4K Home Entertainment Projector for Sports Fans with HDR-PRO, Dynamic Iris and 3000 ANSI Lumens Brightness
4K UHD resolution with 8.3 million pixels and HDR-PRO™ technology
Reaches 98% of Rec. 709 Color Space for accurate colors
Specially designed Sports Mode for full immersion


Main Specifications
Resolution 4K UHD (3840 x 2160)
Brightness (ANSI lumens) 3000 lm
Contrast Ratio (FOFO)* 30,000:1 (Dynamic Iris)
Speaker Chamber Speaker 5W x 2

All Specifications
Display
Projection System DLP
Resolution 4K UHD (3840 x 2160)
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Brightness (ANSI lumens) 3000 lm
Contrast Ratio (FOFO)* 30,000:1 (Dynamic Iris)
Display Color 30 Bits (1.07 billion colors)
Native Aspect Ratio Native 16:9 (6 aspect ratio selectable)
Light Source Lamp
Light Source Wattage 245W
Light Source Life* Normal 4,000 hours, Eco 10,000 hours, SmartEco 15,000 hours

Optical
Throw Ratio 1.13 - 1.47 (100" @ 8.2 feet/ 2.5 m)
Zoom Ratio 1.3x
Keystone Adjustment 1D, (Auto) Vertical ± 30 degrees
Projection Offset 100%
Clear Image Size (Diagonal) 40" ~ 200"
Image Size 30" ~ 300"
Horizontal Frequency 15K-135K Hz
Vertical Scan Rate 23-120 Hz

Picture Mode Bright / Living Room / Cinema/ Sports / Silence / (3D)* / User 1 / HDR / HLG
Color Wheel Segment 4 segment (RGBW)
Color Wheel Speed 2D: 96Hz; 100Hz; 120Hz, 3D: 120Hz
Rec.709 Coverage 98%

Audio
Speaker Chamber Speaker 5W x 2

Interface
HDMI x2 (HDMI 2.0b/HDCP2.2)
USB Type A x1 (5V/2.5A power) , x1 (Media Reader, FW Download)
USB Type mini B x1 (FW Download, Service)
Audio out (3.5mm Mini Jack) x1
RS232 (DB-9pin) x1
DC 12V Trigger (3.5mm Jack) x1
IR Receiver x2 (Front/Top)
Security Bar Security Bar / Kensington anti-theft lock slot

Special Feature
HDR Yes (HDR10, HLG)
Motion Enhancer (MEMC) Yes
CinemaMaster Video + Yes
CinemaMaster Audio+2 Yes

Compatibility
HDTV Compatibility 720p 50/60Hz, 1080i 50/60Hz, 1080p 24/25/30/50/60Hz, 2160p 23/24/25/30/60Hz
3D Compatibility Frame Packing: Up to 1080p/24Hz, Side by Side: Up to 1080p/60Hz, Top Bottom: Up to 1080p/60Hz

Power
Power Supply VAC 100 ~ 240 (50/60Hz)
Typical Power Consumption Max 350W, Normal 340W, Eco 280W
Standby Power Consumption 0.5 W Max. at 100 ~ 240VAC
Acoustic Noise (Typ./Eco.) 32/30dBA (Silence mode)
Operating Temperature 0~40 °C

Dimension and Weight
Dimensions (W x H x D)(mm) 380 x 127 x 263
Net Weight (Kg/ lbs) 4.2 kg / 9.2 lbs

Accessories (Standard)
Remote Control w/ Battery x1 RCV017 (5J.JKC06.001)
Power Cord (by region) x1 (3m)
User Manual CD Yes (27L)
Quick Start Guide Yes (21L)
Warranty Card (by region) Yes

Accessories (Optional)
Spare Lamp Kit Optional (5J.JKC05.001)
3D Glasses Optional

OSD
OSD Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

*In 3D Mode: Resolution is 1920x1080 in 3D Mode.
