BenQ DLP Projektor MW632ST /3D/WXGA 1280x800/3200 ANSI lm/0,72÷0,87:1/13000:1/HDMI/USB/1x10W repro/Short Throw
Projection System DLP
Native Resolution WXGA (1280 x 800)
Brightness* (ANSI Lumens) 3,200 ANSI Lumens
Contrast Ratio 13000:1
Display Color 1.07 Billion Colors
Lens F=2.6-2.78, f=10.2-12.24mm
Aspect Ratio Native 16:10 (5 aspect ratio selectable)

Throw Ratio 0.72~0.87 (87" ± 3% @ 1.36m)

Clear Image Size / Maximum Image Size 60"~120"/ 300"
Image Size (Diagonal) 1.2:1
Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* 4,000/ 6,000/ 6,500/ 10,000 hours
Keystone Adjustment 1D, Vertical +/- 30 degrees
Projection Offset 105% ±5%
Resolution Support VGA (640 x 480) to WUXGA_RB (1920 x 1200) * RB = Reduced Blanking
Horizontal Frequency 15KHz~102KHz
Vertical Scan Rate 24Hz~120Hz
Lamp Type 196W

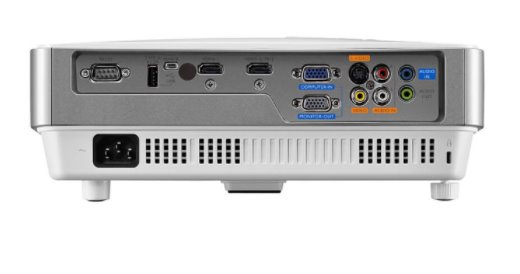

Rozhraní
Computer In (D-sub 15pin) x 1 (Share with component)
Monitor Out (D-sub 15pin) x 1
Composite Video In (RCA) x 1
S-Video In (Mini DIN 4pin) x 1
HDMI (1.4a) x 2 (One share with MHL2.0)
Audio In (Mini Jack) x 1
Audio L/R In (RCA) x 1
Audio Out (Mini Jack) x 1
Speaker 10W x 1
USB (Type mini B) x 1 (Download & Page Up/ Down)
USB (Type A) x1 (1.5A Power Supply)
RS232 (DB-9pin) x 1
IR Receiver x 2 (Front + Top)

Dimensions (W x H x D mm) 287.3 x 114.4 x 232.6mm

HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

3D Support and Compatibility
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i

Audible Noise (Normal/Economic Mode) 33/ 28 dBA (Normal/ Economic mode)

On-Screen Display Languages Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

Picture Modes ** Bright/ Presentation/ sRGB/ Cinema /(3D) / User 1/ User 2

Accessories (Standard)
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA (D-sub 15pin) Cable

Accessories (Optional)
Spare Lamp Kit:
Ceilling Mount:
3D Glasses:
Carry bag

Power Supply AC100V to 240V, 50Hz to 60 Hz

Power Consumption Normal 305W, Eco 220W, Standby < 0.5W

Power Management Function Automatic power off after 20 minutes without a display source

Weight 2.6kg
