16-portový KVM přepínač, 17" LCD Display a klávesnice (102 kláves), lze dát do 19" racku, připojení počítačů přes kabely CAT5, se vzdálenou správou serverů přes TCP/IP protokol, možnost připojit druhou ovládací konzoli, dual rail (nezávislé vysouvání kláv

16-Port Dual Rail LCD KVM Switch
LCD Console + Cat 5 High-Density KVM Switch with KVM over IP

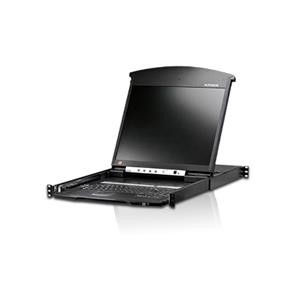

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.

Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapter Cables to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.

Enhanced features include a Panel Array Mode™ that displays the video output of up to 16 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1516Ai is an ideal solution for your server room management.

Hardware
Integrated KVM console with 17¨ or 19¨ LCD monitor in a Dual Rail housing
A single console controls up to 16 computers
Daisy chain up to 15 additional KVM switches to control up to 256 computers*
One bus for remote KVM over IP access
Space-saving RJ-45 connectors and Cat 5e/6 cabling
KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Multiplatform support: PC, Mac, Sun and Serial
Supports external USB mouse
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail – LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock – enables the console drawer to remain securely locked away in position when not in use
LCD power button helps save energy and prolong displays´ life

* Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516

Management
Up to 64 user accounts – up to 32 concurrent remote logins
End session feature – administrators can terminate any running session
Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached Power Over the NET™ devices
Integration with ALTUSEN CC2000 Management software
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable

Easy-to-Use Interface
Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode™
Keyboard broadcast* – keyboard input can be duplicated on all the attached servers

* Local Console only

Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
128-bit SSL encryption to protect password when users log in
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
IP/MAC Filter support for enhanced security protection
Configurable user and group permissions for server access and control

Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full-screen or sizable and scalable Virtual Remote Desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi language support
BIOS-level access


Rack Mount Kit Depth (cm)
Standard Installation – Short (Standard) 42.0–77.0
2X-010G (Long/Optional) 17" LCD : 68.0–105.0
19" LCD: 68.0–105.0

Easy Installation
Rack Mount Kit Depth (cm)
2X-011G (Short/Optional) 17" LCD: 57.0–70.0
19" LCD: 63.0–70.0
2X-012G (Long/Optional) 17" LCD: 68.0–105.0
19" LCD: 74.0–105.0

Package Contents
1x KL1516Ai Dual Rail LCD KVM Switch
1x Power Cord
1x Standard Rack Mount Kit
1x Firmware Upgrade Cable
1x User Instructions

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
