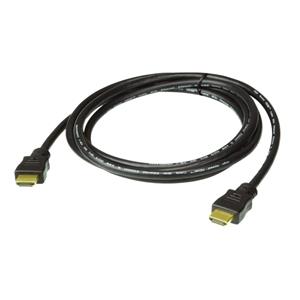

ATEN 5M High Speed HDMI 2.0 Cable with Ethernet
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 5 meters with resolutions up to True 4K (4096 x 2160 @60Hz).
Superior video quality - True 4K (4096 x 2160@60Hz ; 3840 x 2160@60Hz)
HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 5 m
RoHS compliant
Bend Radius 90°**
Note:
* Feature only available if linked devices are HDMI Ethernet Channel enabled
** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute
Package Contents
1x 2L-7D05H-1 5m High Speed HDMI Cable with Ethernet
Max. Video Resolution 4096x2160@60Hz
Physical Properties
Cable Length 5M
Cable Color Black
Cable Outer Dimension 8.0 ± 0.30mm
Conductor Gauge 26AWG
Conductor Material Tinned Copper
Connector Plating Gold
Connector Type HDMI (19pin) Male to Male
Cable Shield Type Aluminum Foil
Cable Jacket Type PVC
Environmental
Operating Temperature 80°C
Rating UL VW-1 (Flame rate), CSA
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Superior video quality - True 4K (4096 x 2160@60Hz ; 3840 x 2160@60Hz)
HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 5 m
RoHS compliant
Bend Radius 90°**
Note:
* Feature only available if linked devices are HDMI Ethernet Channel enabled
** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute
Package Contents
1x 2L-7D05H-1 5m High Speed HDMI Cable with Ethernet
Max. Video Resolution 4096x2160@60Hz
Physical Properties
Cable Length 5M
Cable Color Black
Cable Outer Dimension 8.0 ± 0.30mm
Conductor Gauge 26AWG
Conductor Material Tinned Copper
Connector Plating Gold
Connector Type HDMI (19pin) Male to Male
Cable Shield Type Aluminum Foil
Cable Jacket Type PVC
Environmental
Operating Temperature 80°C
Rating UL VW-1 (Flame rate), CSA
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
ParametryPorovnání
Konektor 1 (kabel)
HDMI
Konektor 2 (kabel)
HDMI
Délka (kabel)
4,1m - 5m
Určení (kabel)
Propojovací
Provedení konektoru (kabel)
Rovný
Barva (kabel)
Černá
Opletení (kabel)
Ne
Výrobce (kabel)
Aten
