Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6
Product Segment
AX3000 vynikající výkon v režimu AX: 2 402 Mb/s + 574 Mb/s
WiFi Data Rate
802.11a: až 54 Mb/s
802.11b: až 11 Mb/s
802.11g: až 54 Mb/s
802.11n: až 400 Mb/s
802.11ac: až 1 733 Mb/s
802.11ax (2,4 GHz): až 1 300 Mb/s
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
Internal dual-band antenna x 2
Transmit / Receive
2,4 GHz 2 x 2
5 GHz 2 x 2
Processor
1.7 GHz quad-core processor
Memory
128 MB Flash
512 MB RAM
Boosts Speed
MIMO technology
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
RJ45 for Gigabits BaseT for WAN/LAN x 1
RJ45 for Gigabits BaseT for LAN x1
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 1.5 A current
Package Content

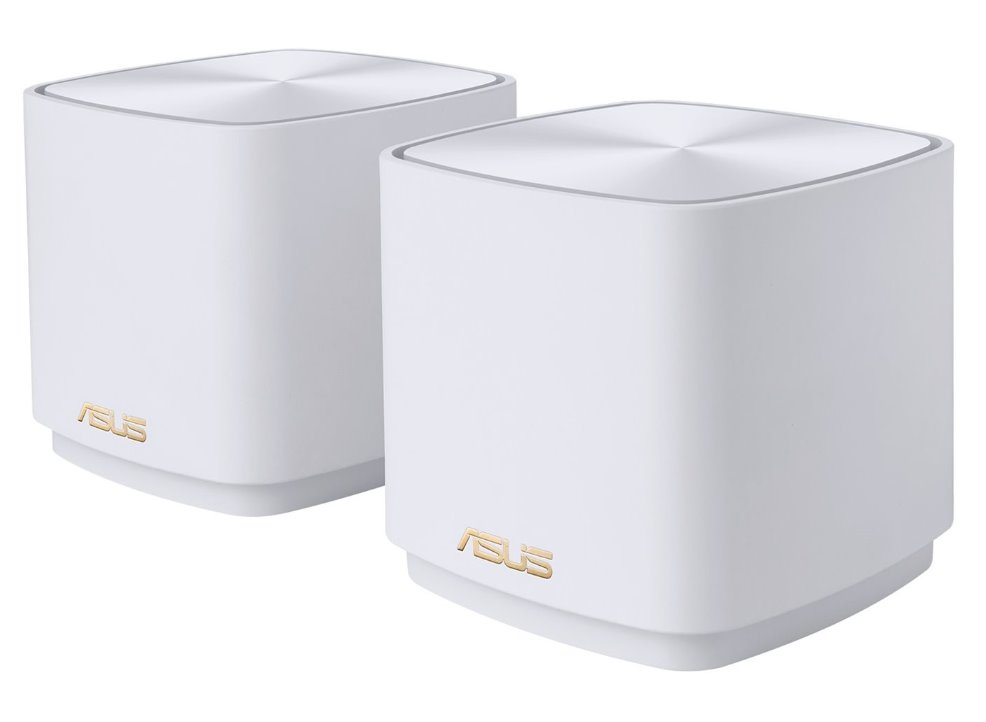

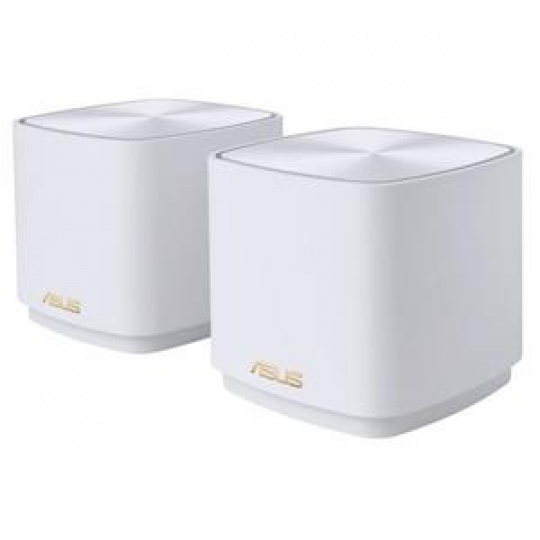

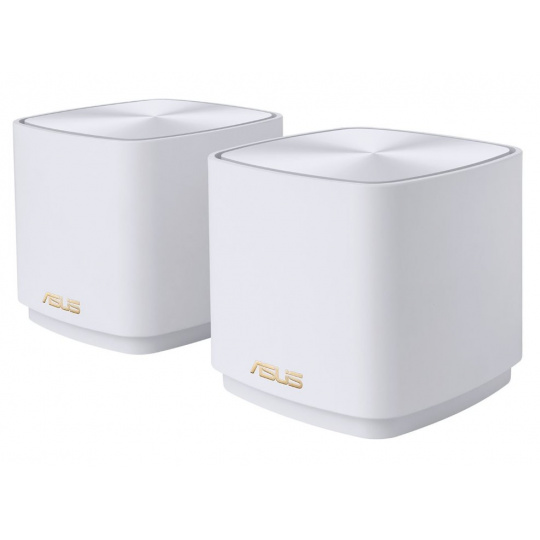

ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
Product Weight (g)
307 g
Product Dimensions
90 x 90 x 85 mm
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Parental Control
Parental Control
Time Scheduling
Reward
Parental Control - Safe Browsing
Ano
Router APP
ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Ano
Open system, WPA/WPA2/WPA3-Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let's Encrypt
DNS-over-TLS
Ano
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Classic
Ano
Malicious site blocking
Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
Ano
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• Maximum Port Forwarding Rule : 64
Ano
• Maximum Port Triggering Rule : 32
DMZ
DDNS
LAN
IGMP snooping
IPTV
Ano
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC address filter
• Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
Administration
Ano
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
